20 SV01H
Commissioning

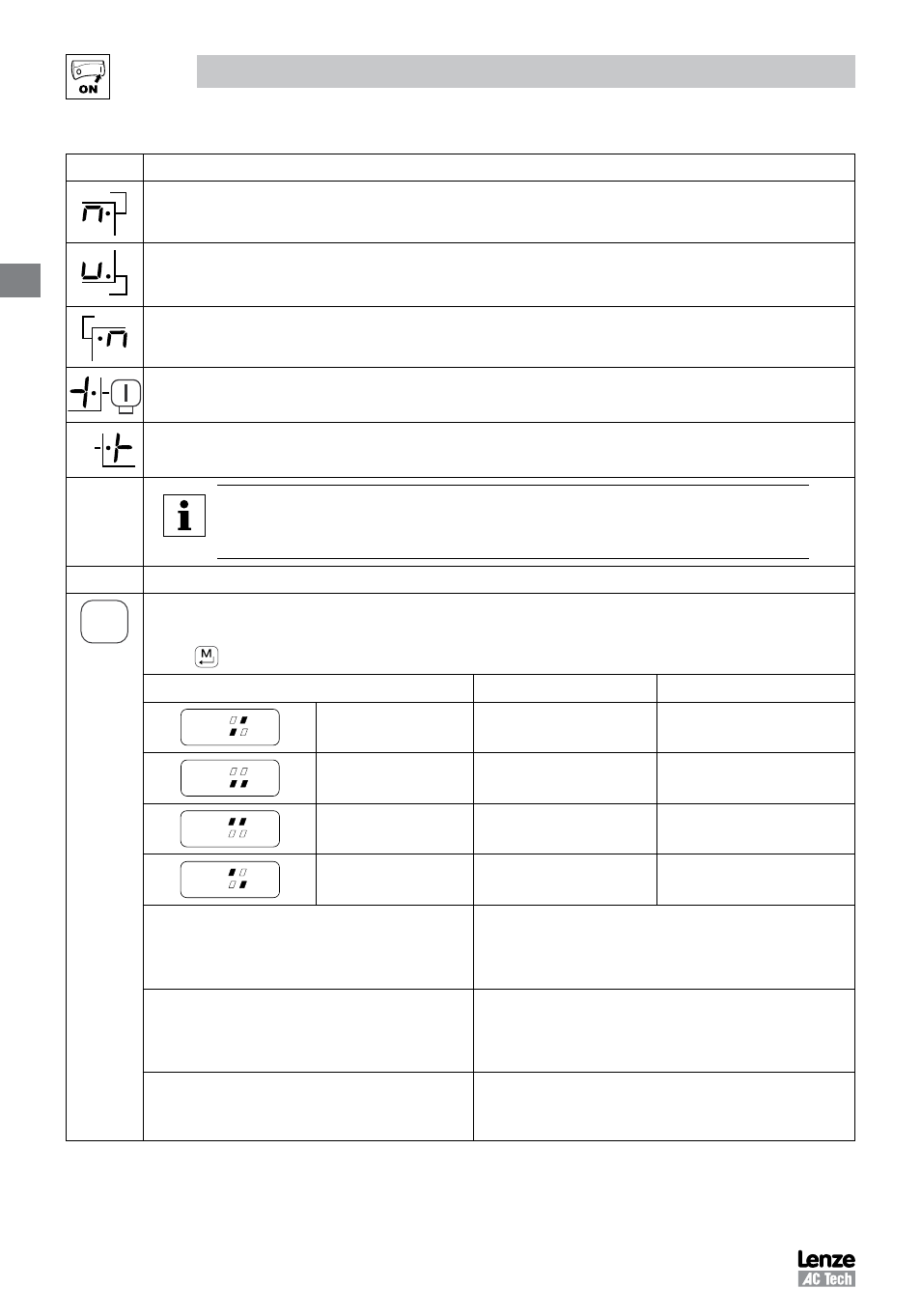

Display INDICATING LEDs (on 4-character display)
FWD
FWD LED: Indicate the present rotation direction is forward. Refer to ROTATION description above.
REV
REV LED: Indicate the present rotation direction is reverse. Refer to ROTATION description above.
AUTO
AUTO LED: Indicates that the drive has been put into Auto mode from one of the TB13 inputs (P121…P124 set
to 1…7). Also indicates that PID mode is active (if enabled).
RUN
RUN LED: Indicates that the drive is running.
L M s t LED: Indicates that the s t are the active reference.
NOTE
If the keypad is selected as the auto reference (P121…P124 is 6) and the corresponding
TB-13 input is closed, the AUTO LED and s t LEDs will both be on.
FUNCTIONS THAT FOLLOW ARE APPLICABLE TO SMV DRIVES 15HP (11kW) AND GREATER
CTRL
CTRL
The CTRL pushbutton selects the start and speed reference control sources for the drive.
Press [ ] mode button to accept the new control mode selection.
CTRL LEDs START CONTROL REFERENCE CONTROL
REMOTE
LOCAL
MAN
AUTO [LOCAL] [MAN] Keypad P101 Settings
REMOTE
LOCAL
MAN
AUTO [LOCAL] [AUTO] Keypad Terminal 13x Settings
REMOTE
LOCAL
MAN
AUTO [REMOTE] [MAN] Terminal Strip P101 Settings
REMOTE
LOCAL
MAN
AUTO [REMOTE] [AUTO] Terminal Strip Terminal 13x Settings
If P100 = 6 the CTRL button is used to toggle
start control between the terminal strip [REMOTE]
and the keypad [LOCAL] - REM/LOC LED indicating the present start control source is ON
- Press [CTRL]; the LED for other start control source will blink
- Press [M] within 4 sec to confirm the change
- Blinking LED will turn ON (the other LED will turn OFF)
If P113 = 1 the CTRL button is used to toggle
reference control between the TB-13x setup
[AUTO] and P101 [MANUAL] - AUT/MAN LED indicating present reference control is ON
- Press [CTRL]; the other reference control will blink
- Press [M] within 4 sec to confirm change
- Blinking LED will turn ON (the other LED will turn OFF)
If P100 = 6 and P113 = 1, it is possible to
change the start and reference control sources at
the same time
