17
SV01H

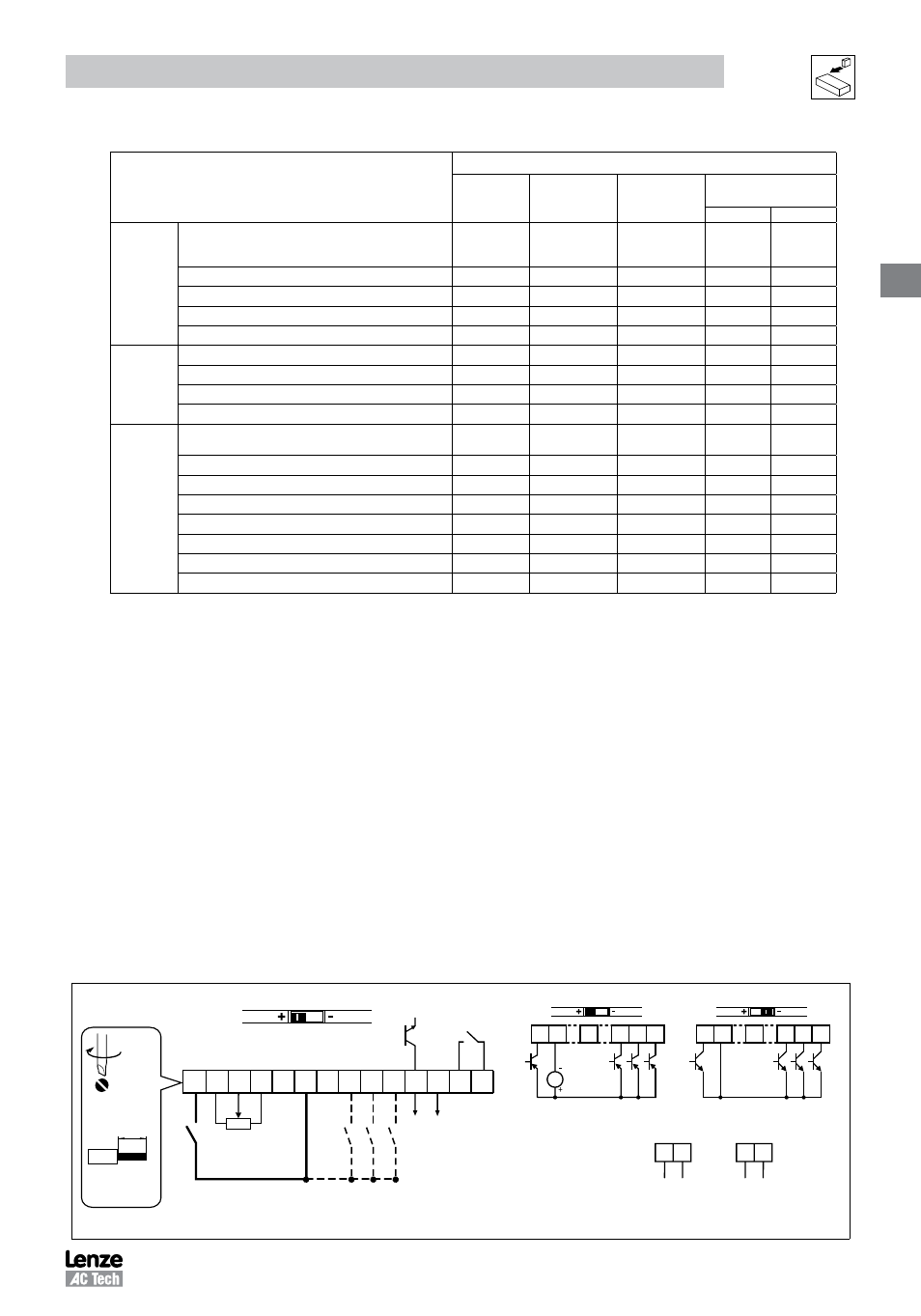

Installation
Type
Recommendations
Fuse
Miniature circuit
breaker
(1)
Fuse
(2)
or
Breaker
(3)
(N. America)
Input Power Wiring
(L1, L2, L3, PE)
[mm²]
[AWG]
400V
or 480V
3~(3/PE)
ESV371N04TXB ...ESV222N04TXB
ESV371N04T_* ...ESV222N04T_*
ESV371N04TF* ...ESV222N04TF*
M10 A
C10 A
10 A
1.5
14
ESV302N04T_*
M16 A
C16 A
15 A
2.5
14
ESV402N04TXB, ESV402N04T_*
M16 A
C16 A
20 A
2.5
14
ESV552N04TXB, ESV552N04T_*
M20 A
C20 A
20 A
2.5
14
ESV752N04TXB, ESV752N04T_~
M25 A
C25 A
25 A
4.0
10
400V
or 480V
3~(3/PE)
ESV113N04TXB, ESV113N04T_~
M40 A
C40 A
40 A
4
8
ESV153N04TXB, ESV153N04T_~
M50 A
C50 A
50 A
10
8
ESV183N04TXB, ESV183N04T_~
M63 A
C63A
70 A
10
6
ESV223N04TXB, ESV223N04T_~
M80 A
C80 A
80 A
16
6
600V
3~(3/PE)
ESV751N06TXB ...ESV222N06TXB
ESV751N06T_* ...ESV222N06T_*
M10 A
C10 A
10 A
1.5
14
ESV402N06TXB, ESV402N06T_*
M16 A
C16 A
12 A
1.5
14
ESV552N06TXB, ESV552N06T_*
M16 A
C16 A
15 A
2.5
14
ESV752N06TXB, ESV752N06T_~
M20 A
C20 A
20 A
2.5
12
ESV113N06TXB, ESV113N06TX~, ESV113N06TM~
M32 A
C32 A
30 A
4
10
ESV153N06TXB, ESV153N06TX~, ESV153N06TM~
M40 A
C40 A
40 A
4
8
ESV183N06TXB, ESV183N06TX~, ESV183N06TM~
M50 A
C50 A
50 A
6
8
ESV223N06TXB, ESV223N06TX~, ESV223N06TM~
M63 A
C63 A
60 A
10
8
(1) Installations with high fault current due to large supply mains may require a type D circuit breaker.
(2) UL Class CC or T fast-acting current-limiting type fuses, 200,000 AIC, preferred. Bussman KTK-R, JJN or JJS or equivalent.
(3) Thermomagnetic type breakers preferred.
_ 11th digit of part number:
F = Integral EMC Filter
L = Integral EMC Filter and Integrated Disconnect Switch (NEMA 4X/IP65 Models only)
M = Integrated Disconnect Switch (NEMA 4X/IP65 Models only)
X = No EMC Filter/ No Disconnect Switch
* = Last digit of part number: C = N4X Indoor only (convection cooled)
E = N4X Indoor/Outdoor (convection cooled)
~ = Last digit of part number: D = N4X Indoor only (fan cooled)
F = N4X Indoor/Outdoor (fan cooled)
Observe the following when using Ground Fault Circuit Interrupters (GFCIs):
• Installation of GFCI only between supplying mains and controller.
• The GFCI can be activated by:
- capacitive leakage currents between the cable screens during operation (especially with long, screened motor cables)
- connecting several controllers to the mains at the same time
- RFI filters
3.2.3
Control Terminals
Control Terminal Strip for 0.33 - 10 HP (0.25 - 7.5 kW):
6 25 4 11 13A 13B 13C
17
5
1 2
14 30 16
AOUT
DIGOUT
2k … 10k
+10 V
AIN
AIN
COM
COM
ALsw
25
2
4 … 20 mA
5
2
0 … 10 V
1 2 4 13A 13B 13C
+12 VDC - 0 %
. . .
+30 VDC + 0 %
ALsw
+15V
1 2 4 13A 13B 13C
ALsw
COM
PNP
NPN
4.5 lb-in
(0.5 Nm)
0.25 in (6 mm)
AWG 26…16
(<1mm²)
