Page 17
16
SV01H
Installation

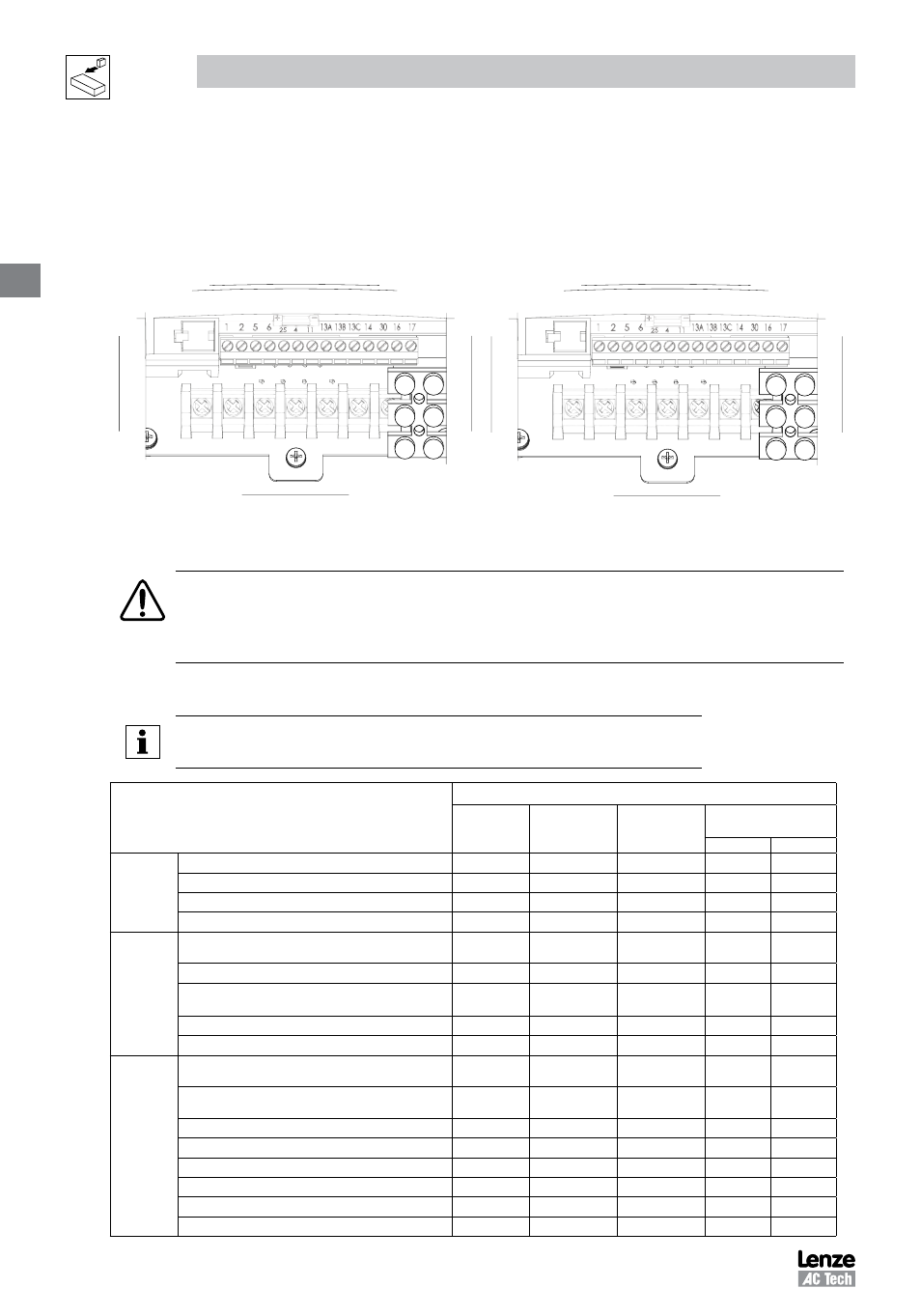

3.2.1.6 NEMA 4X (IP65) Input Terminal Block
For NEMA 4X (IP65) models with integrated EMC filter and/or integrated line disconnect, the input terminal block is
located on the right-hand side of the SMV inverter in the NEMA 4 X (IP65) enclosure. The single and three phase models
are illustrated herein. Refer to paragraph 3.2.3 Control Terminals for pin out information.
L1
L2
PE
W
V
U
L1
L2
L3
U
V
W
PE
Single Phase (2/PE)
With Filter and/or integrated line disconnect
Three Phase (3/PE)
With Filter and/or integrated line disconnect
WARNING
Power remains present for up to 3 minutes on power input terminals (L1, L2 and L3) and output
terminals (U, V and W) even when the disconnect switch is in the OFF position. Remove input power
ahead of the drive and wait 3 minutes before removing the terminal cover.
3.2.2
Fuses/Cable Cross-Sections
NOTE
Observe local regulations. Local codes may supersede these recommendations
Type
Recommendations
Fuse
Miniature circuit
breaker
(1)
Fuse
(2)
or
Breaker
(3)
(N. America)
Input Power Wiring
(L1, L2, L3, PE)
[mm²]
[AWG]
120V
1~
(1/N/PE)
ESV251N01SXB
M10 A
C10 A
10 A
1.5
14
ESV371N01SXB, ESV371N01SX*
M16 A
C16 A
15 A
2.5
14
ESV751N01SXB, ESV751N01SX*
M25 A
C25 A
25 A
4
10
ESV112N01SXB, ESV112N01SX*
M32 A
C32 A
30A
4
10
240V
1~
(2/PE)
ESV251N01SXB, ESV251N02SXB, ESV371N01SXB,
ESV371N02YXB, ESV371N02SF*
M10 A
C10 A
10 A
1.5
14
ESV751N01SXB, ESV751N02YXB, ESV751N02SF*
M16 A
C16 A
15 A
2.5
14
ESV112N02YXB, ESV112N02SFC, ESV112N01SXB
ESV112N01SX*
M20 A
C20 A
20 A
2.5
12
ESV152N02YXB, ESV152N02SF*
M25 A
C25 A
25 A
2.5
12
ESV222N02YXB, ESV222N02SF*
M32 A
C32A
30 A
4
10
240V
3~
(3/PE)
ESV371N02YXB, ESV751N02YXB, ESV371N02Y_*,
ESV751N02Y_*
M10 A
C10 A
10 A
1.5
14
ESV112N02YXB, ESV152N02YXB, ESV112N02TXB,
ESV152N02TXB, ESV112N02Y_*, ESV152N02Y_*
M16 A
C16 A
12 A
1.5
14
ESV222N02YXB, ESV222N02TXB, ESV222N02YX*
M20 A
C20 A
20 A
2.5
12
ESV402N02TXB, ESV402N02T_*
M32 A
C32 A
30 A
4.0
10
ESV552N02TXB, ESV552N02T_~
M40 A
C40 A
35 A
6.0
8
ESV752N02TXB, ESV752N02T_~
M50 A
C50 A
45 A
10
8
ESV113N02TXB, ESV113N02TX~, ESV113N02TM~
M80 A
C80 A
80 A
16
6
ESV153N02TXB, ESV153N02TX~, ESV153N02TM~
M100 A
C100 A
90 A
16
4
