Chapter 4 Calibrator
4.1 Connecting the MW100 Data Acquisition Unit
Notes before Using the Calibrator
• If connected to the MW100 from a browser, drop the connection before connecting
with the Calibration Software. Also, place the MW100 in Calibration mode. To enter
Calibration mode, turn OFF the power to the MW100 main unit, then turn it back ON
again while holding down the
USER 1 key. Release the USER 1 key one second or
more after the self check begins (the 7-segment LED displays ). To exit
Calibration mode, turn the power OFF.
• If you change the module configuration before connecting with the Calibration
Software, carry out system reconfiguration on the browser (see section 3.3,
“Configuring the System” in the MW100 Data Acquisition Unit User’s Manual, IM
MW100-01E).
Procedure

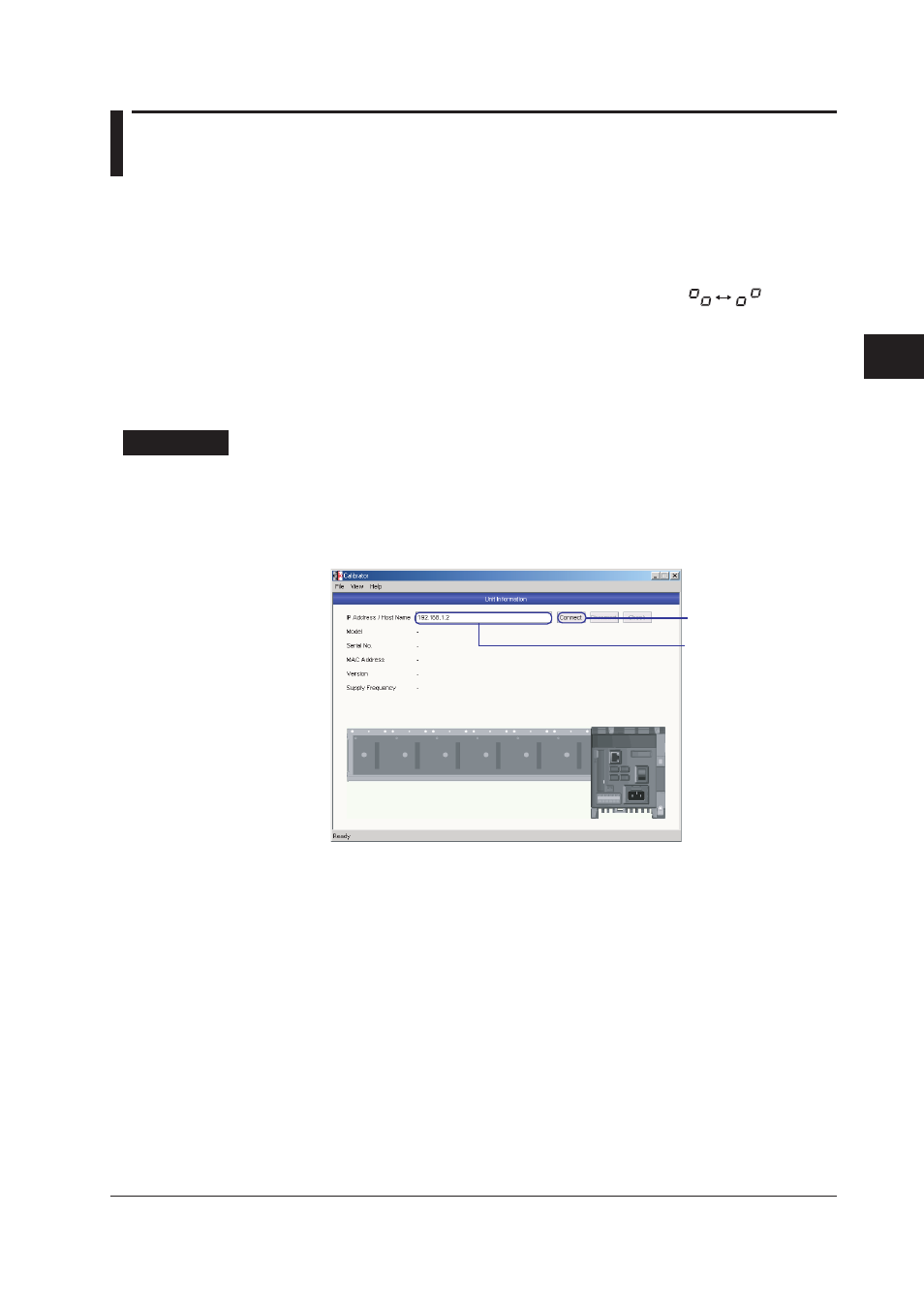

1. Start the Calibrator.
The Unit Information window opens.
2. In the IP Address/Host Name box, enter the IP address or host name of the
MW100 to be calibrated.
3. Click Connect.
Enter the IP address
or host name of the
MW100 to be calibrated.
Execute connection
