3-16
IM MW180-01E

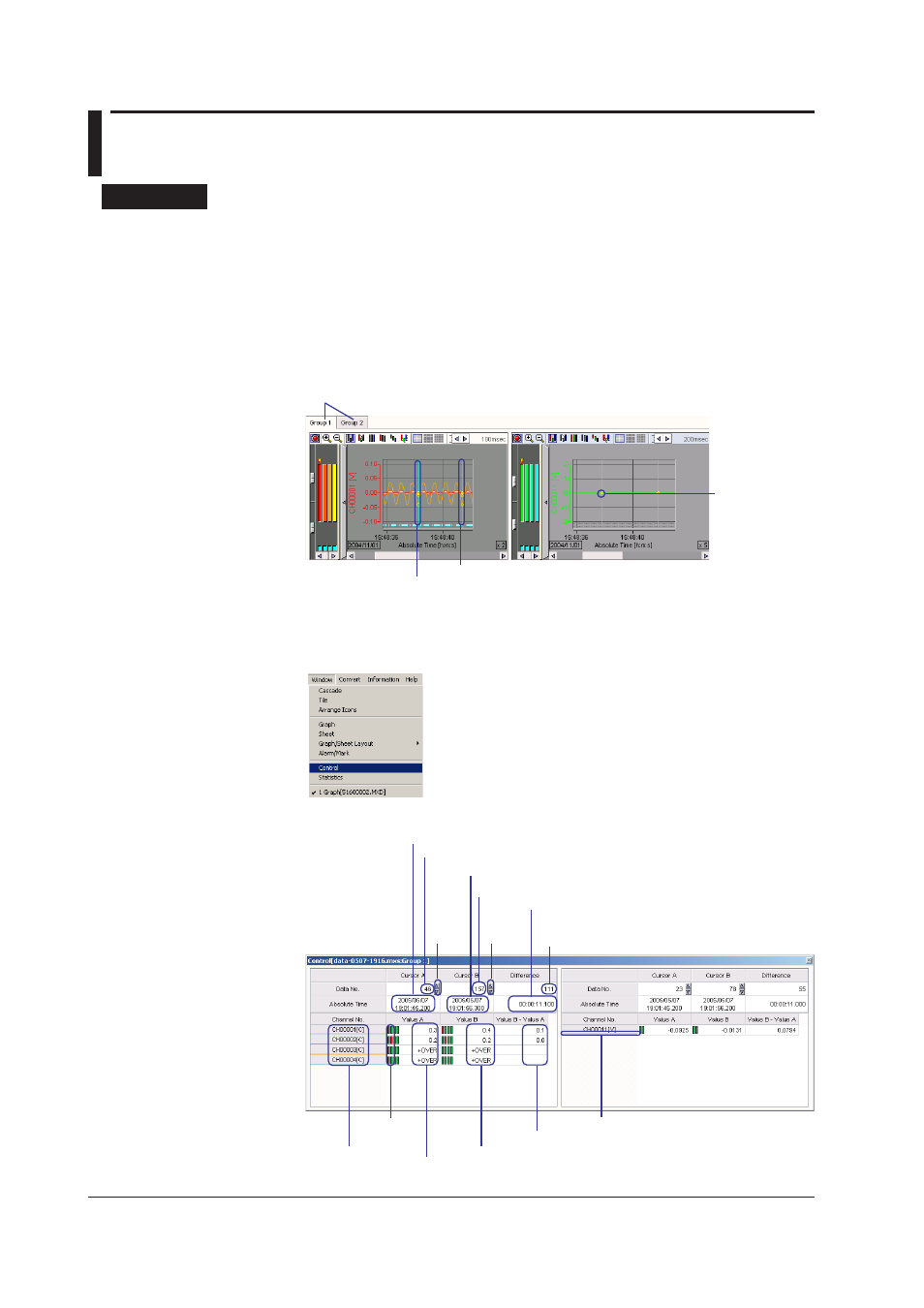

3.3 Reading Measured, Computed, and Thinned
Values Using the Cursors
Procedure
1. On the waveform display window, click the tag of the group from which you wish
to read the value using cursors.
2. Click the position of the desired data in the waveform display area of the
waveform display window.
If you wish to read another point simultaneously, drag the cursor. Cursor A
appears at the position where you first clicked; Cursor B appears at the position
where you released the mouse button. A yellow circle is displayed where the
waveform and the cursor cross.
Cursor A
Cursor B
Measurement point
Group selection tab
You can move the waveform that is displayed in the waveform display area using the scroll
buttons or scroll bar.
3. From the Window menu, choose Control.
The Cursor Value window opens.
Channel number and
measurement unit
Channel display color
Time between Cursors A and B
Time at Cursor B
Time at Cursor A
Readout value of Cursor B – Readout value of Cursor A
Readout value of Cursor B
Readout value of Cursor A
Alarm
indication
Data number at Cursor A
Move
Cursor A
Data number at Cursor B
Move
Cursor B
Difference in the data number
between Cursors A and B
