Yokogawa Data Acquisition with PID Control CX2000 User Manual
Page 55
8-3
IM 04L31A01-01E

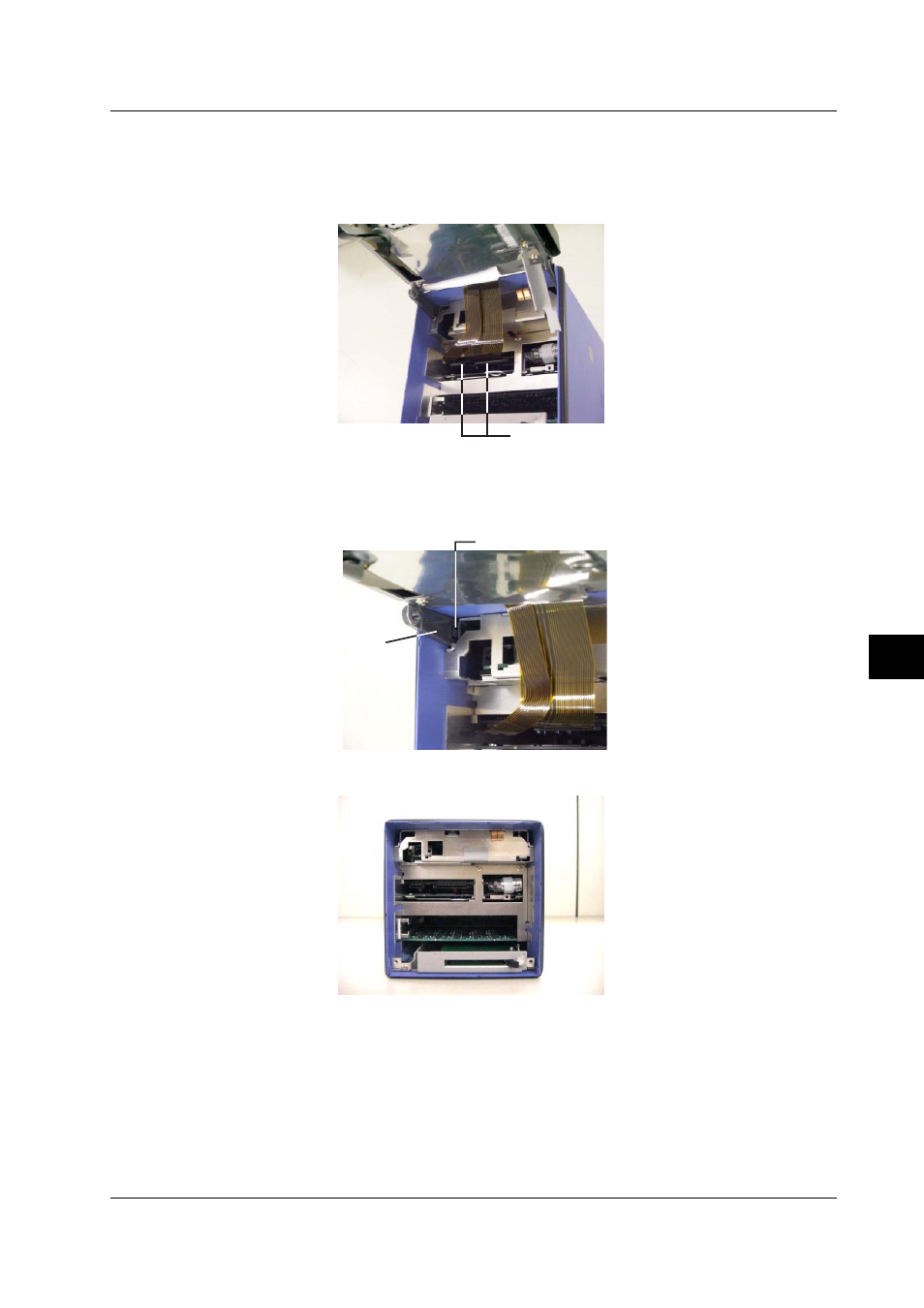

Procedures for Disassembly (CX1000)
8
Removing the Bezel
3.
Remove the two flexible cables that connect the bezel to the main unit. The
connector utilizes a latch. Pull outwards on the left and right sides of the latch to
release it, then pull out the cable.
Connector
4.
Release the bezel by pushing the latches on the left and right hinge arms using
a long pointed tools such as a Phillips head screw driver. With the latches
pushed in, pull the bezel out and remove it from the main unit.
Latch
Hinge Arm
CX with the front bezel removed
8.1 Removing the Bezel
