3-7
SM 04L31A01-01E
Adjustments
3

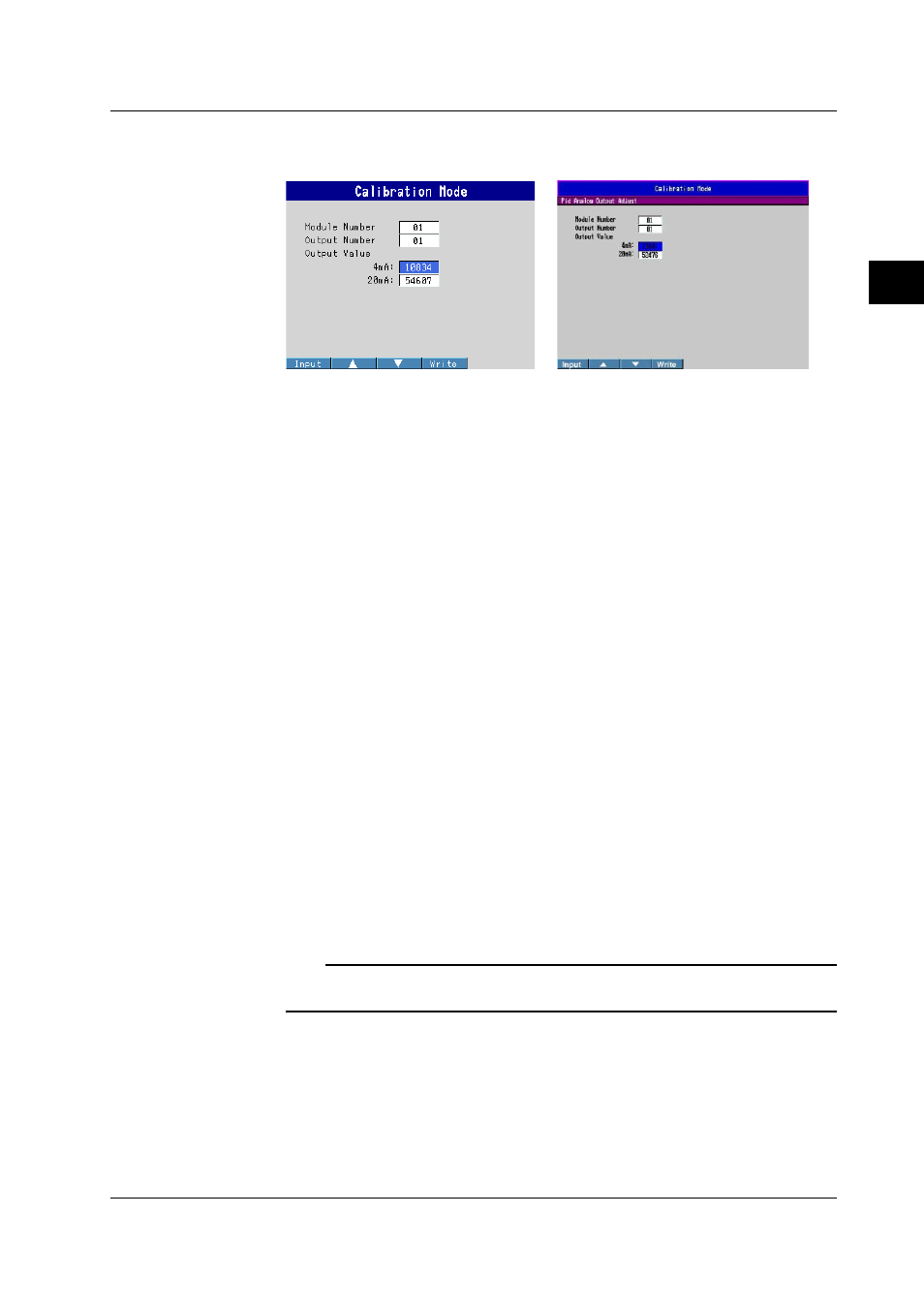

6. Press the Write function key for each output number. The calibration values are
saved.
7. Repeat steps 4—6 and calibrate all module and output numbers.
8. Press ESC. You are returned to the calibration screen.
9. Turn OFF the power
Calibration Using Communications
The commands required for control output calibration are listed below.
For other necessary commands, see Calibration Using Communications (page 3-5) in
section 3.1, “Calibrating the Measuring Instrument Input.”
Perform step 1 of Calibration Using Keys before using these commands for
calibration.
For OUTPUT
ZZp1,p2,p3,p4
p1 Action OUTPUT
p2 Module number (1 for the CX1000, or 1—3 for the CX2000)
p3 Output channels (1 and 2)
p4 4 mA/20 mA
p5 Calibration value (For 4 mA, 9285—12561)
(For 20 mA, 46421—62804)
For WRITE
ZZp1,p2,p3,p4
p1 Action (OUTPUT/WRITE)
p2 Module number (1 for the CX1000, or 1—3 for the CX2000)
p3 Output channels (1 and 2)
p4 (Calibration value for 4 mA, 9285—12561)
p5 (Calibration value for 20 mA, 46421—12561)
Note
When specifying WRITE, you can omit p4 and p5. If you do so, the currently set calibration
value is written.
3.2 Control Output Calibration
