5. BASIC OPERATING PROCEDURES

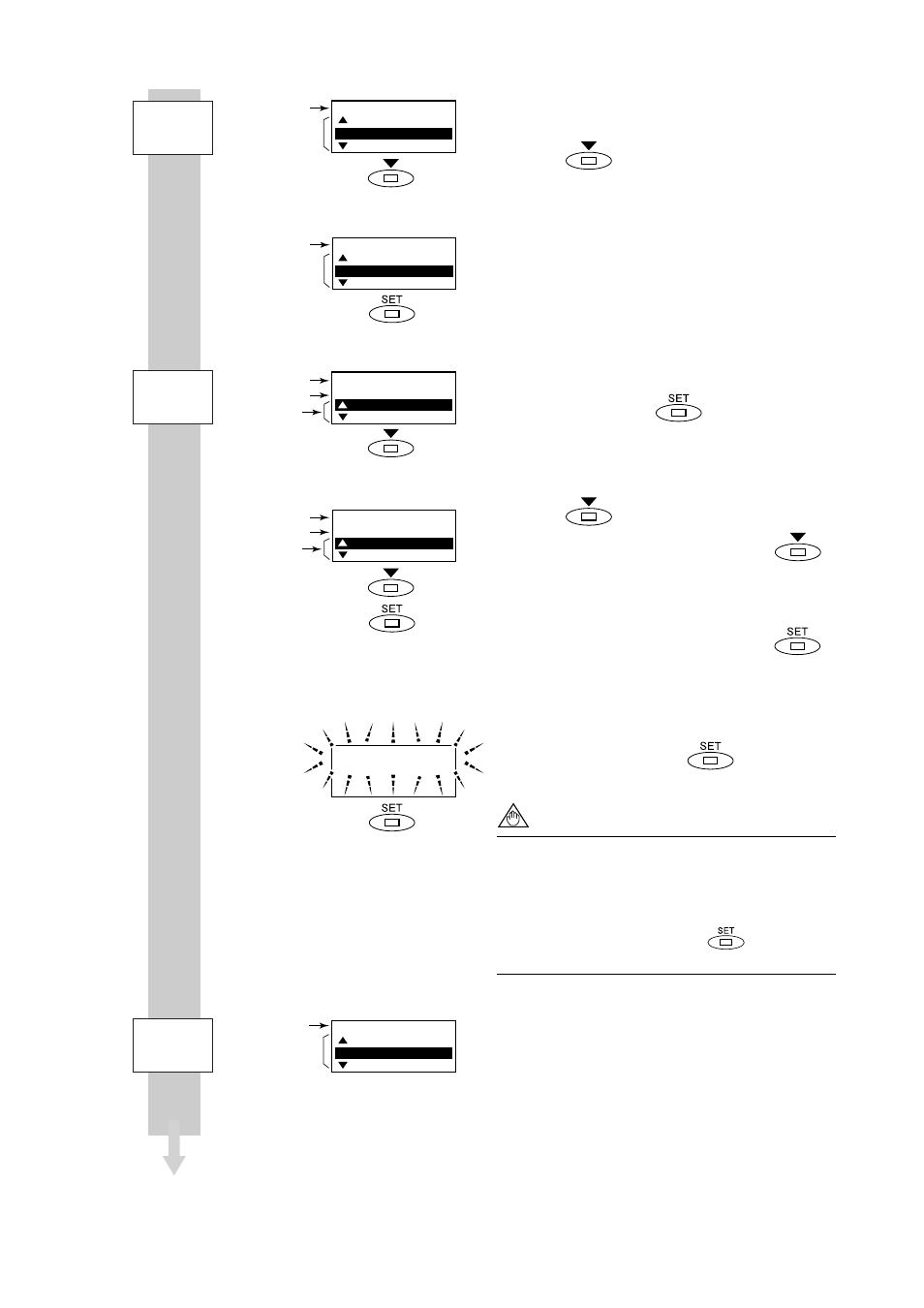

Sub-item Parameter Search Mode has been accessed
in this screen.
Touch the
switch to move the cursor to
B21: Base Flow Unit.
The cursor has been moved to B21: Base Flow
Unit in this screen. (Sub-item selection screen (A))
In this screen, Parameter Replacement Mode has
been called up using the
switch.
Touch the
switch to move the cursor to the
unit item for selection. In this example, the
switch is touched twice to select l (Liter)
When l (Liter) has been selected, touch the
switch.
In order to request confirmation, the entire display
flashes on and off. Touch the
switch once
again at this time to fix your selection.
NOTE
When no operations are carried out for 20
seconds in the flashing state, the system will
automatically return to the Sub-item Parameter
Search Mode.
When the operations except
are carried
out, the parameter cannot be set.
The system automatically returns to sub-item
selection screen (A).
F0504-2.EPS
Major item
Sub-item
selection (A)
Sub-item
Current unit setting
Available selections
Sub-item
Current unit setting
Available selections
B21:Base Flow Unit
l(Liter)
X2
X2
Major item
Sub-item
parameter
Sub-item
Parameter
Search Mode
Parameter
Replacement Mode
Sub-item
Parameter
Search Mode
Major item
Sub-item
selection (A)
B:Easy Setup
20:Flow Damping
21:Base Flow Unit
22:Base Time Unit
B21:Base Flow Unit
m
3
m
3
kl(Kiloliter)
B21:Base Flow Unit
m
3
l(Liter)
cm
3
B:Easy Setup
20:Flow Damping
21:Base Flow Unit
22:Base Time Unit
B:Easy Setup
50:Auto Zero Exe
10:Language
20:Flow Damping
