44 © 2012, ROSS CONTROLS ® . All Rights Reserved.
TURCK Modular Industrial I/O System BL 67
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles

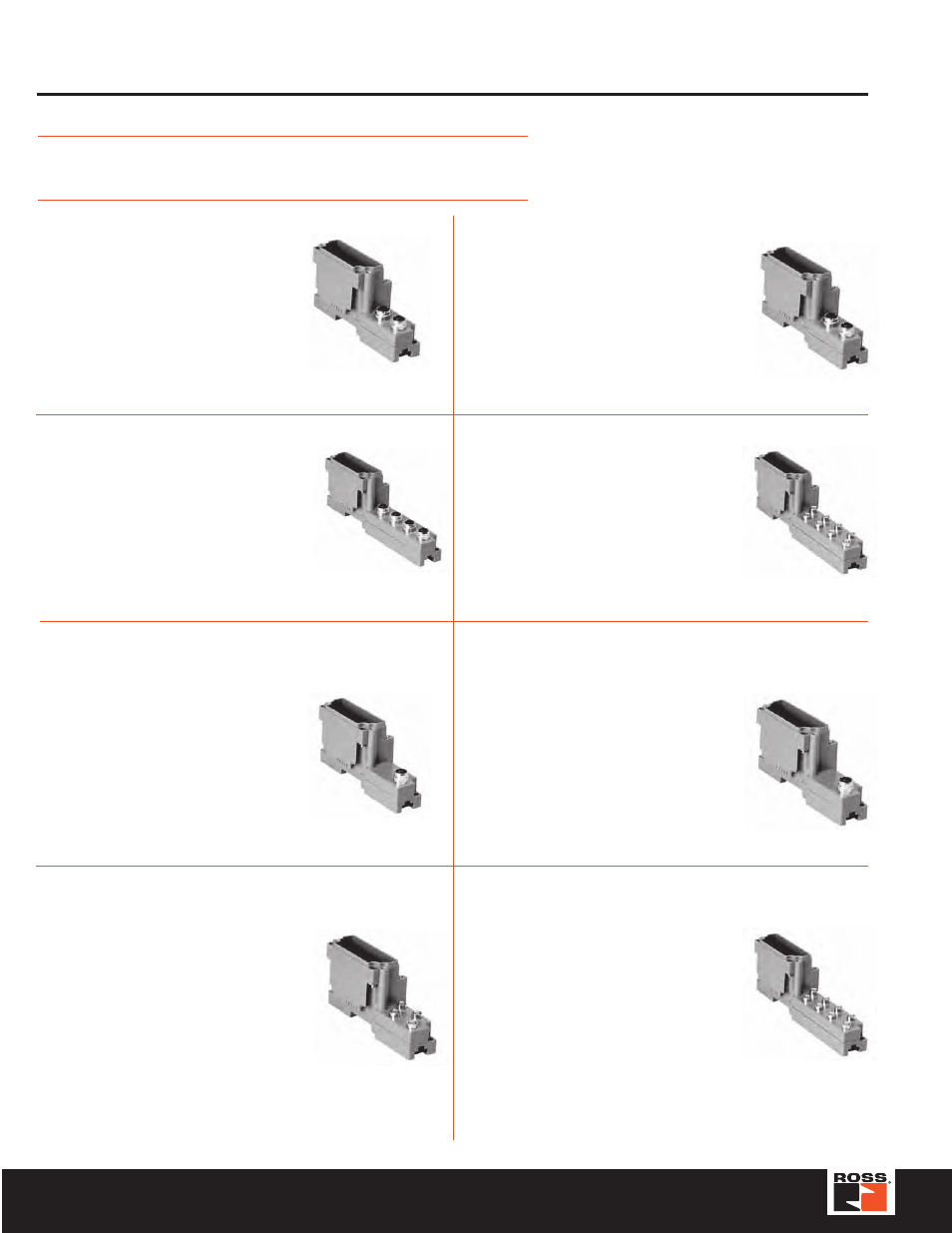

Base Modules for BL67 I/O
Two eurofast ® Connectors
BL67-B-2M12
Two eurofast ® Connectors with Paired I/O
BL67-B-2M12-P
Four eurofast ® Connectors
BL67-B-4M12
Base module with two eurofast connectors.
When used with 4 input or 4 output modules each
connector has 2 I/O points.
Base module with two eurofast connectors.
Each connector has 2 I/O points, paired so consecutive
points are on the same connector.
Four eurofast ® Connectors with Paired I/O
BL67-B-4M12-P
Base module with four eurofast connectors.
Each connector has 2 I/O points, paired so
consecutive points are on the same connector.
Base module with four eurofast connectors.
When used with 8 input or 8 output modules
each connector has 2 I/O points.
One eurofast ® Connector (5-pin)
BL67-B-1M12 One eurofast ® Connector (8-pin)
BL67-B-1M12-8
Four picofast ® Connectors
BL67-B-4M8
Base module with one eurofast 5-pin connector.
Typically used with serial I/O modules. Base module with one eurofast 8-pin connector.
Typically used with serial I/O modules.
Eight picofast ® Connectors
BL67-B-8M8
Base module with eight picofast connectors.
Typically used with 8-input or 8-output modules. Base module with four picofast connectors.
Typically used with 4-input or 4-output modules.
