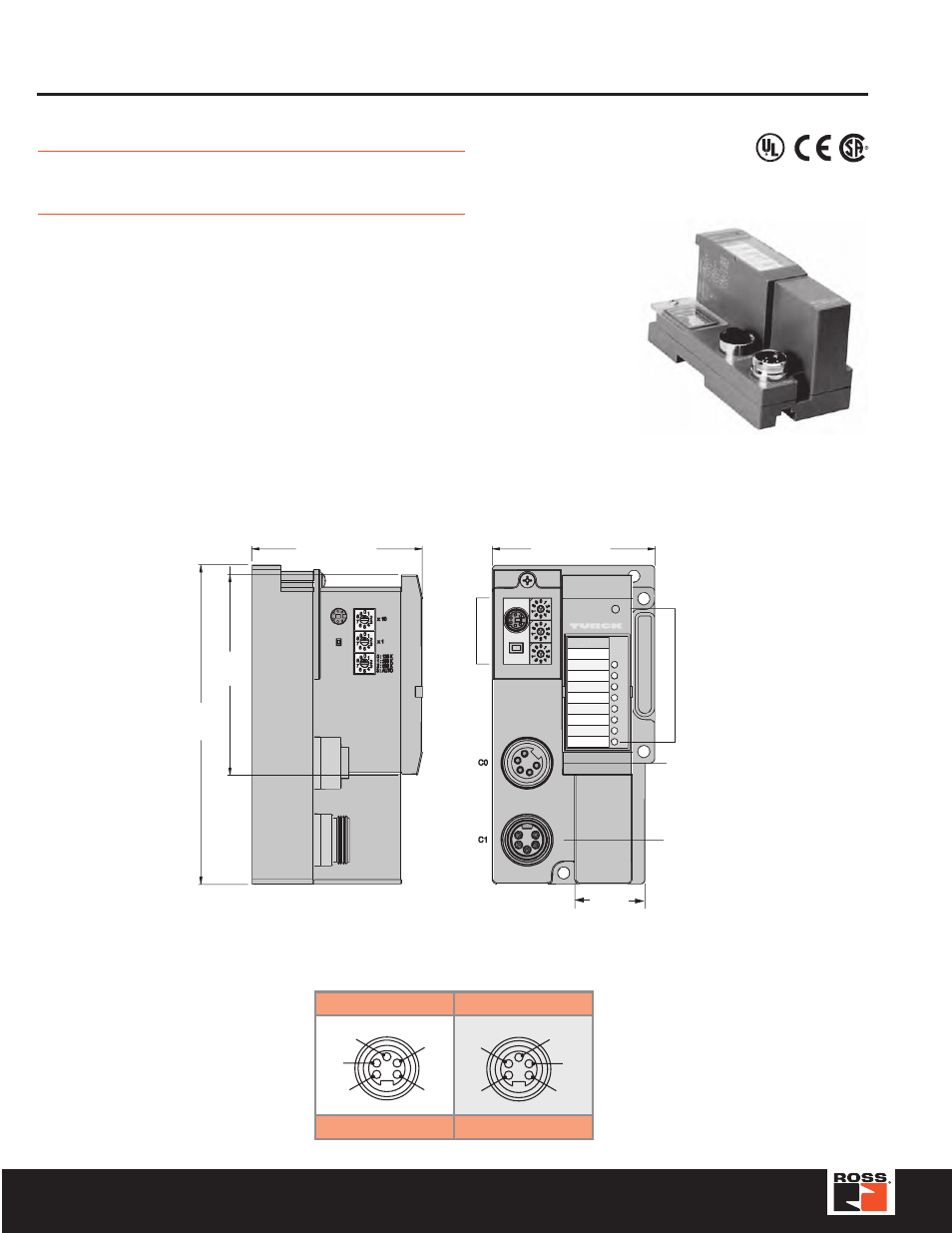

CANopen Gateway
Electrical: • Operating Current: <600 mA from V
MB
• Supply Current: <8 A to I/O (from DeviceNet)
•
Backplane Current: <1.5 A (from DeviceNet)
Mechanical: • Operating Temperature: 0 to +55°C (+32 to +131°F)
• Protection: IP 67
•
Vibration: 5 g @ 10-500 Hz
Material: • Housing: PC-V0 (Lexan)
Diagnostics (Logical)
• Diagnostic information available through the DeviceNet I/O map
Diagnostics (Physical)
• LEDs to indicate status of DeviceNet and Module Bus communication
BL67-GW-CO-T
TURCK Modular Industrial I/O System BL 67
Service Address
Set
5.709
(145.0)
3.583
(91.0)
3.051 (77.5)
Service
Port and
Address
Switches
2.913 (74.0)
Diagnostic
LEDs
CANopen
Connector
1.260
(32.0)
POWER
IO
VO
GW
BL67 IO
GW-
VCC
VI
MNS
CANopen
Connector
Male Female
5-Pin 5-Pin
1 = Shield
2 = V+
3 = V-
4 = CAN_H
5 = CAN_L
CANopen minifast ® Pinouts
1 1
2 2
3 3
4 4
5 5
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles
