11 www.rosscontrols.com
Size 2 Size 3 Size 1
Automotive Connectors
Mounted in Individual Manifold Conduit Cover
• 3-Pin - Wired for Single Solenoid
• 4-Pin / 5-Pin - Wired for Double Solenoid
Enclosures / Lead Length
J † Circuit Board, Single Address
M † Circuit Board, Double Address
Mounting Base Style / Port Size
Size 1
Sub-base: 3/8 NPT Side Ports 15
Sub-base: 3/8 BSPP Side Ports 16*
Manifold: 3/8 NPT End Ports 55
Manifold: 3/8 NPT End Ports 56*
Manifold: 3/8 NPT Bottom / End Port 65 †
Manifold: 3/8 BSPP Bottom / End Port 66* †
Note:
When using the Enclosure / Lead Length “J” or “M” option:
12 volts DC - Maximum number of coils is 13
24 volts DC - Maximum number of coils is 21
120 volts AC - Coils limited by the number of pins available in the connector
(25-Pin D-Sub = 24 coils, 19-Pin Brad Harrison = 16, 12-Pin M23 = 8)
240 volts AC - Must use “A” or “C” Option, Lead Wires or Terminal Blocks
R PS4011 55 M C P
Basic Series
Size 1 PS4011
Size 2 PS4111
Size 3 PS4211
Size 2
Sub-base: 1/2 NPT Side Ports 17
Sub-base: 1/2 BSPP Side Ports 18*
Sub-base: 1/2 NPT Bottom / End Port 27
Sub-base: 1/2 BSPP Bottom / End Port 28
Manifold: 1/2 NPT Bottom / End Port 67
Manifold: 1/2 BSPP Bottom / End Port 68*
Size 3
Sub-base: 3/4 NPT Side Ports 19
Sub-base: 3/4 BSPP Side Port 10*
Sub-base: 3/4 NPT Bottom / End Port 29
Sub-base: 3/4 BSPP Bottom / End Port 20
Manifold: 3/4 NPT Bottom / End Port 69
Manifold: 3/4 BSPP Bottom / End Port 60*
Size 1, 2, & 3 Manifold / Sub-Base Kits
* BSPP ISO 1179 Specifications.
† #1 Bottom Port - 1/4".
† Not Available with Subbase Kits.
Plug-in, Series W65 (5599-2)
Manifold Kits
Size 2 Size 3 Size 1
Automotive Connectors
Mounted in 1/2" Conduit Port
• 3-Pin - Wired for Single Solenoid
• 4-Pin / 5-Pin - Wired for Double Solenoid
Sub-Base Kits

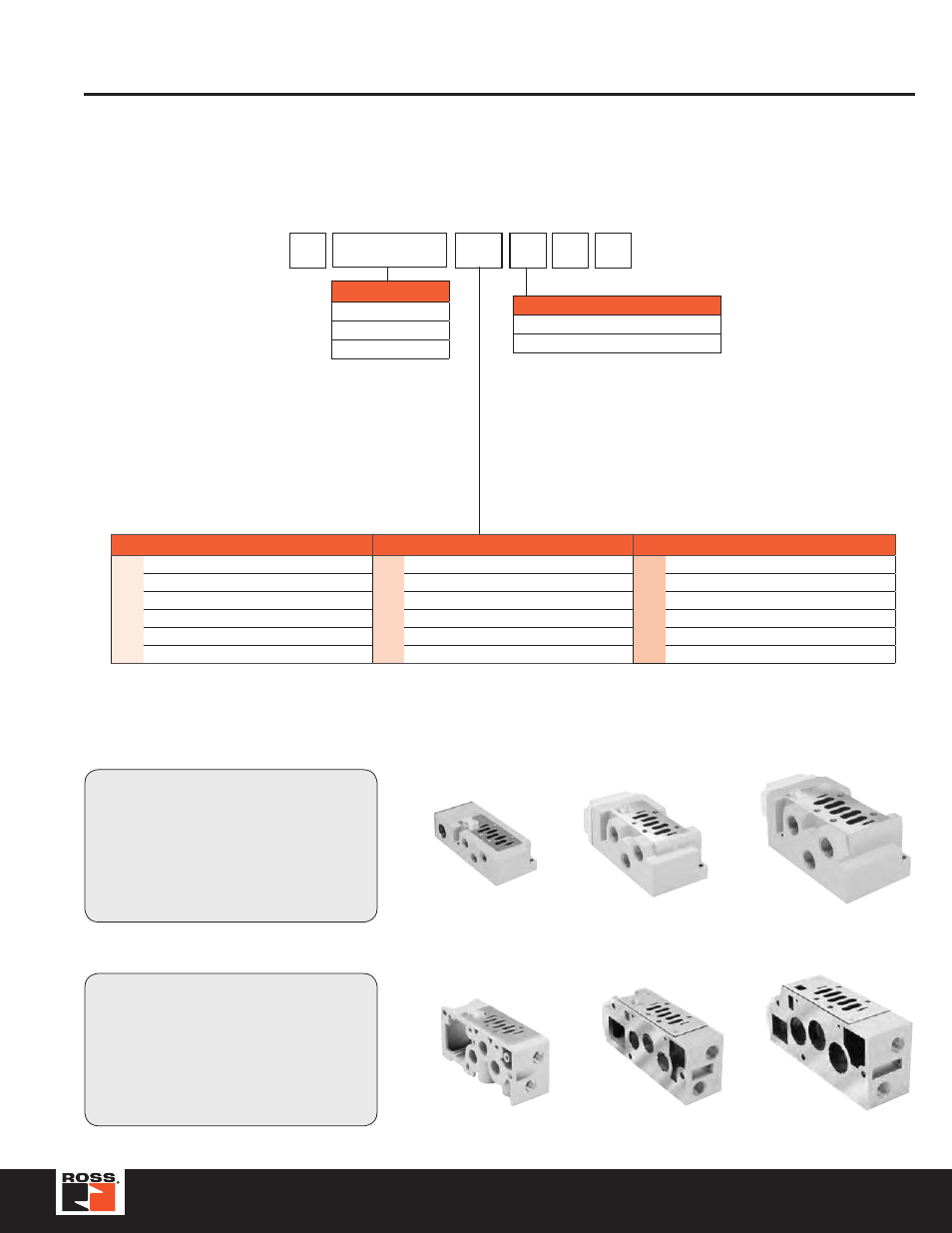

HOW TO ORDER
(Choose your options (in red) to configure your valve model number.)
