14 © 2012, ROSS CONTROLS ® . All Rights Reserved.
•
Remote Air Pilot Operated for hard-to-reach pressure
control
• Unregulated Pilot Pressure to valve for consistent
valve shifting regardless of pressure adjustment
Size 1
(Dual Interposed Regulator Shown)
Size 2
(Dual Interposed Regulator Shown)
Size 0 - 26mm
(Single Interposed Regulator Shown)
Size 00 - 18mm
(Dual Interposed Regulator Shown)
Features:
Accessories

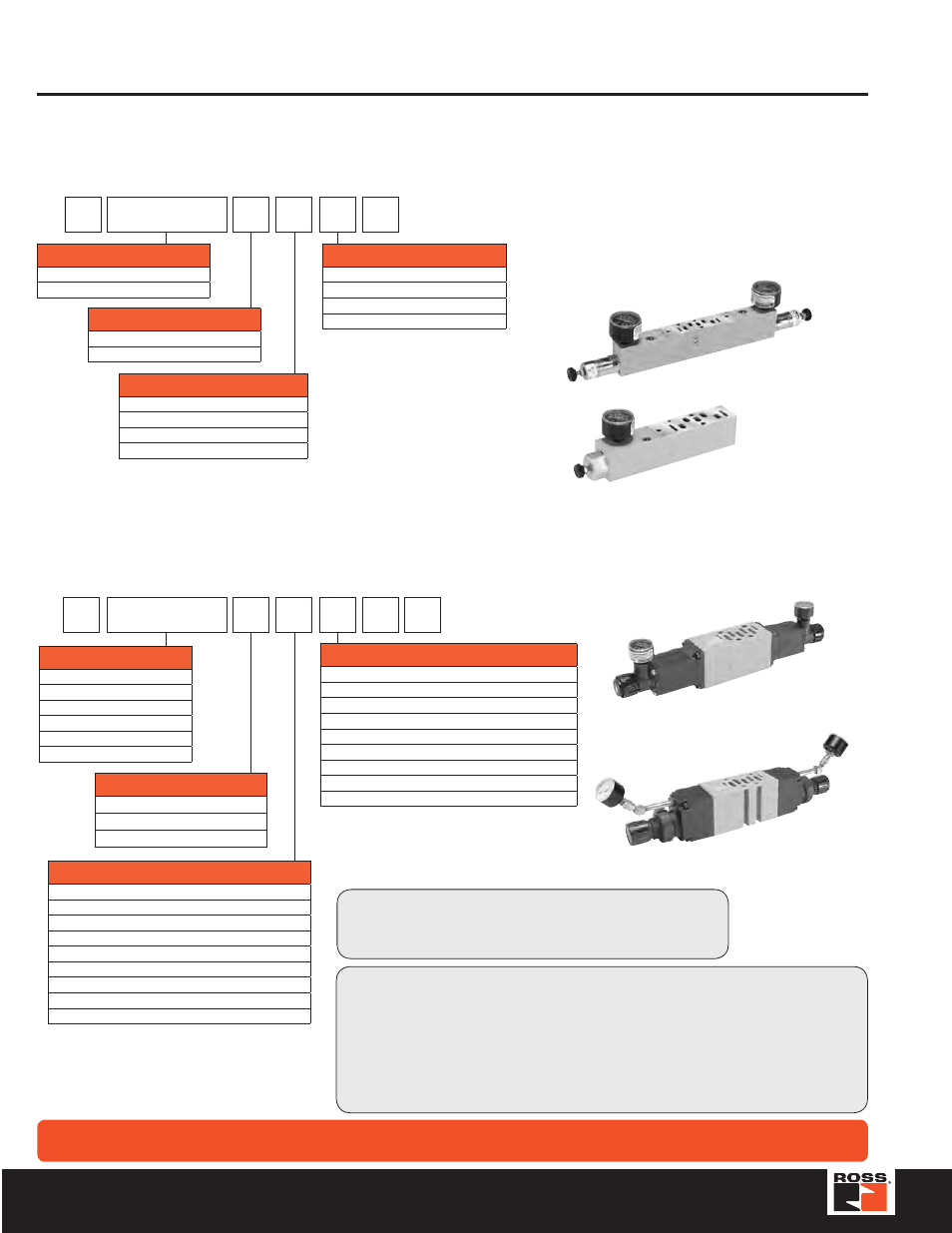

Interposed Regulators
R PS5637 1 6 6 P
Regulator Function
Common Pressure Regulator 1
Independent Pressure Regulator 2
#4 Port Regulator / Gauge*
2 2-60 PSIG w/o Gauge
3 5-125 PSIG w/o Gauge
5 2-60 PSIG w/Gauge
6 5-125 PSIG w/Gauge
#2 Port Regulator / Gauge*
2 2-60 PSIG w/o Gauge
3 5-125 PSIG w/o Gauge
5 2-60 PSIG w/Gauge
6 5-125 PSIG w/Gauge
* For Common Pressure Regulator Option, Regulator Gauge callout must
be the same number for both Port #4 and Port #2. (Example: 166)
* For Common Pressure Regulator Option, Regulator
Gauge callout must be the same number for both
Port #4 and Port #2. (Example: 166)
HOW TO ORDER
(Choose your options (in red) to configure your valve model number.)
Double interposed regulators will reverse output ports, the 12 solenoid will pressurize the 4 port, the 14 solenoid will
pressurize the 2 port which may cause unexpected, potentially dangerous cylinder movement at valve pressurization.
WARNING
Ordering Components
• Manifold or Subbase Kit required
• Interposed Regulator Kit configured for Internal Pilot as standard
• Order valve as External Pilot
R PS4037 1 6 6 C P
Basic Series
Size 1 5599-1 PS4037
Size 1 5599-2 PS4038
Size 2 5599-1 PS4137
Size 2 5599-1 PS4138
Size 3 5599-1 PS4237
Size 3 5599-1 PS4238
Regulator Function
Common Pressure Regulator 1
Independent Pressure Regulator 2
Selector Regulator 3
#2 Port Regulator / Gauge*
0** Line By-Pass Plate
1 1-30 PSIG w/o Gauge
2 2-60 PSIG w/o Gauge
3 5-125 PSIG w/o Gauge
4 1-30 PSIG w/Gauge
5 2-60 PSIG w/Gauge
6 5-125 PSIG w/Gauge
C Air Pilot w/60 PSIG Gauge
D Air Pilot w/160 PSIG Gauge
#4 Port Regulator / Gauge*
0** Line By-Pass Plate
1 1-30 PSIG w/o Gauge
2 2-60 PSIG w/o Gauge
3 5-125 PSIG w/o Gauge
4 1-30 PSIG w/Gauge
5 2-60 PSIG w/Gauge
6 5-125 PSIG w/Gauge
C Air Pilot w/60 PSIG Gauge
D Air Pilot w/160 PSIG Gauge
Basic Series
Size 00 15407-2, 18mm PS5638
Size 0 15407-2, 26mm PS5538
* For Common Pressure Regulator Option, Regulator Gauge callout must
be the same number for both Port #4 and Port #2. (Example: 166)
** Pressure Line By-Pass Option can only be used with Independent and
Selector Regulators (Option 2 & 3 in Interposed Block Function).
* For Common Pressure Regulator Option, Regulator Gauge callout must
be the same number for both Port #4 and Port #2. (Example: 166)
** Pressure Line By-Pass Option can only be used with Independent and
Selector Regulators (Option 2 & 3 in Interposed Block Function).
Internal Pilot Configuration - Pressure in Base Port 1 feeds regulator configured for
Internal Pilot which feeds valve configured for External Pilot.
External Pilot Configuration - Size 1, Size 2, Size 3
An External Pilot pressure in Port 12 or 14 of the base feeds thru the Interposed
Regulator 12 or 14 galley directly to the 12/14 pilot of the valve.
This configuration takes an External Pilot from the 12 port of the base and passes it thru
the regulator to feed the 12 galley of the valve.
How to Configure Interposed Regulator / Valve Combinations
Size 00 & 0
Size 1, 2, & 3
HOW TO ORDER
(Choose your options (in red) to configure your valve model number.)
