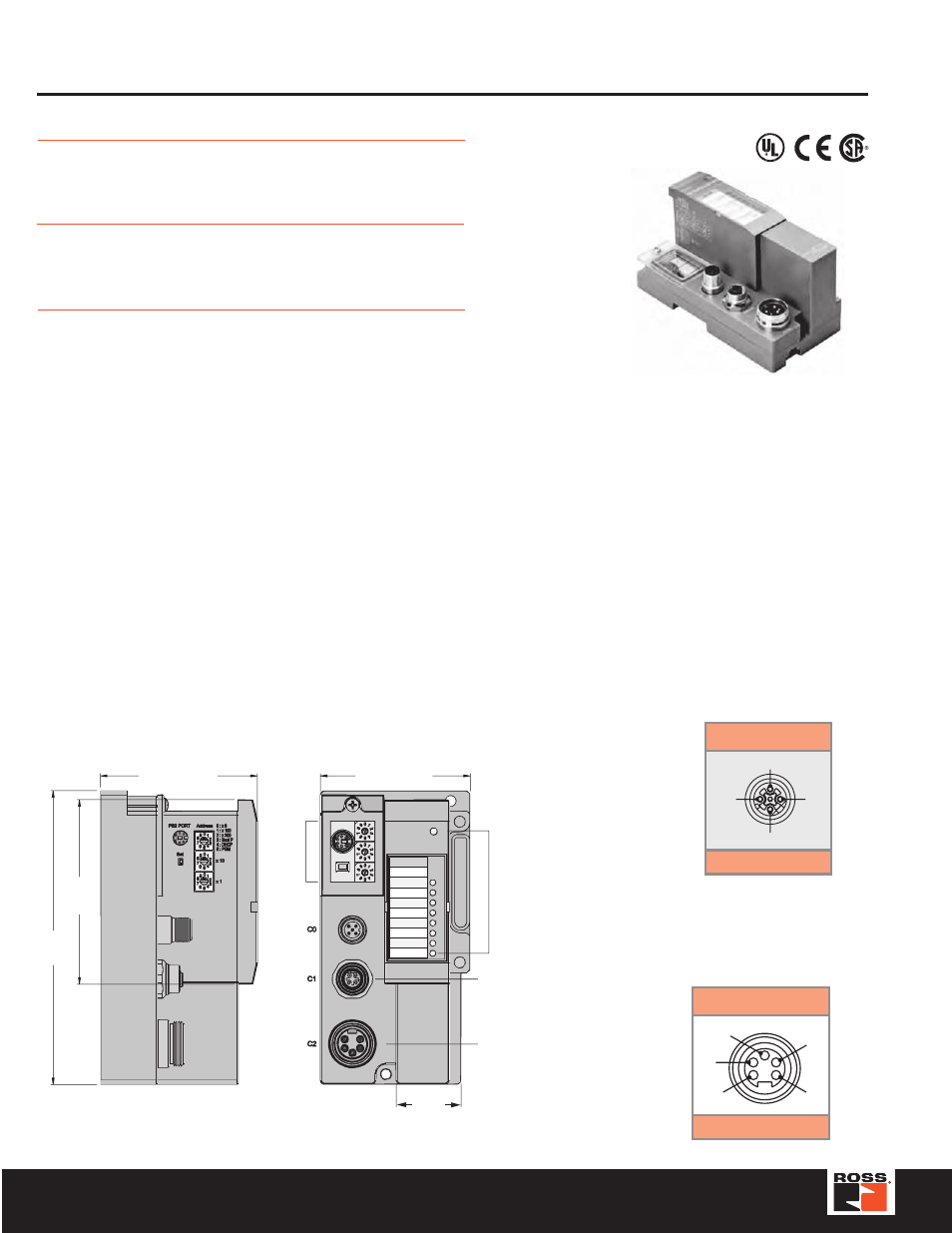

TURCK Modular Industrial I/O System BL 67
ModBus TCP/IP
Ethernet Gateways
Electrical: • Operating Current: <600 mA from V
MB
•
Input Supply Current: <4 A (from V
I
)
• Output Supply Current: <8 A (from V
O
)
• Backplane Current: <1.5 A (from V
MB)
Mechanical: •
Operating Temperature: -12 to +55°C (-13 to +131°F)
• Protection: IP 67
• Vibration: 5 g @ 10-500 Hz
Material: •
Housing: PC-V0 (Lexan)
Diagnostics (Logical)
• Diagnostic information available through the DeviceNet I/O map
Diagnostics (Physical)
• LEDs to indicate status of DeviceNet and Module Bus communication
Programmability
• PG in part number designates a programmable gateway
• Progammable according to IEC 61131.3 using CodeSys
(includes ladder logic)
• Use CodeSys to create logic programs to control local I/O
5.709
(145.0)
3.583
(91.0)
3.051 (77.5)
Service
Port and
Address
Switches
2.913 (74.0)
Diagnostic
LEDs
Ethernet
Connector
Power
Connector
1.260
(32.0)
ETHERNET
POWER
LNK/ACT
MS
VI
VO
VCC
GW
GW-EN
BL67 IO
Female
4-Pin
Ethernet Pinout
Male
5-Pin
1 = TD+
2 = RD+
3 = TD-
4 = RD-
1 = Gnd
2 = Gnd
3 = PE
4 = VI
5 = VO
5-pin minifast ® Power Pinout
3
4
5 1
2
1
2
3
4
Ethernet IP
Ethernet Gateways
BL67-GW-EN
BL67-PG-EN
BL67-GW-EN-IP
BL67-PG-EN-IP
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles
