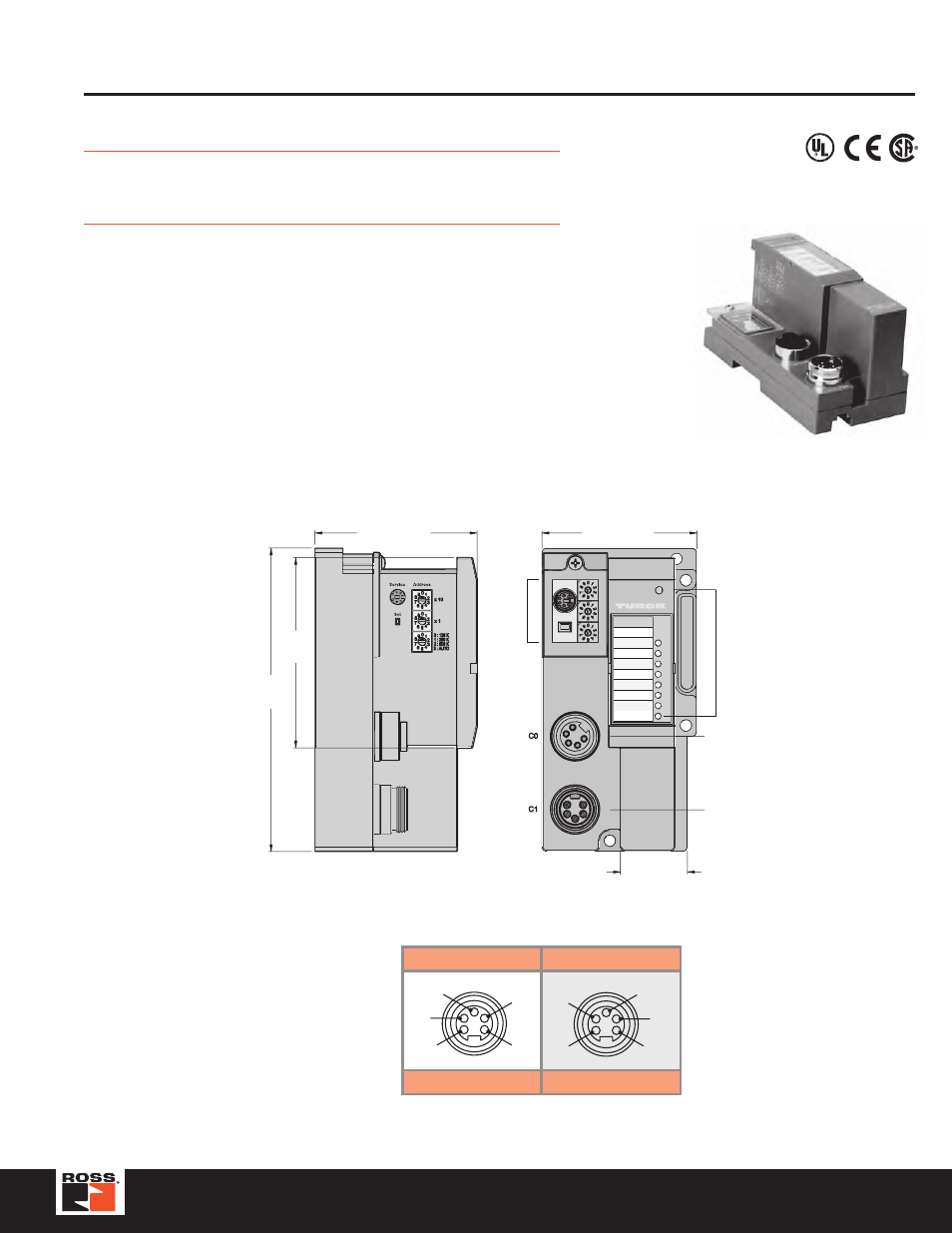

TURCK Modular Industrial I/O System BL 67
DeviceNet Gateway
Electrical: • Operating Current: <600 mA from V
MB
• Supply Current: <8 A to I/O (from DeviceNet)
• Backplane Current: <1.5 A (from DeviceNet)
Mechanical: • Operating Temperature: 0 to +55°C (+32 to +131°F)
• Protection: IP 67
• Vibration: 5 g @ 10-500 Hz
Material: • Housing: PC-V0 (Lexan)
Diagnostics (Logical)
•
Diagnostic information available through the DeviceNet I/O map
Diagnostics (Physical)
• LEDs to indicate status of DeviceNet and Module Bus communication
Male Female
5-Pin 5-Pin
DeviceNet minifast ® Pinouts
1 = Shield
2 = V+
3 = V-
4 = CAN_H
5 = CAN_L
3
4
5 1
2
1
2
3
4
5
5.709
(145.0)
3.583
(91.0)
3.051 (77.5)
Service
Port and
Address
Switches
2.913 (74.0)
Diagnostic
LEDs
DeviceNet
Connector
DeviceNet
Connector
1.260 (32.0)
DeviceNet
DeviceNet
MNS
IO
VI
VO
VCC
GW
GW-DN
BL67 IO
BL67-GW-DN
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles
Note: Power feeding modules may be used for I/O current supply to prevent overloading the DeviceNet power supply.
