32 © 2012, ROSS CONTROLS ® . All Rights Reserved.

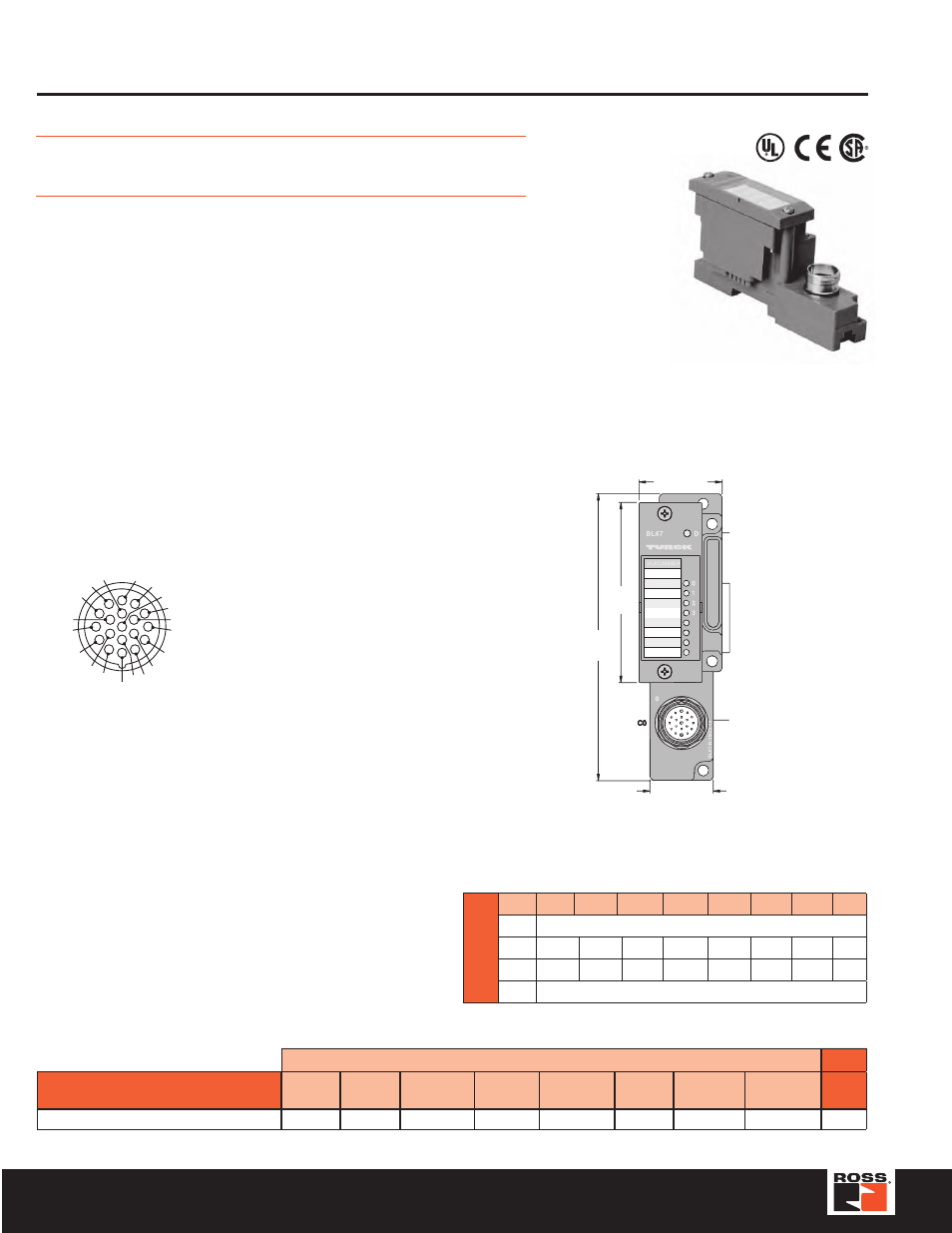

TURCK Modular Industrial I/O System BL 67
16 Discrete Output Modules
Electrical: • Operating Current: <30 mA from V
MB
<100 mA from V
O
• Output Current: <0.5 A per output from V
O
Power Distribution: • Inputs: V
O
• Logic: V
MB
and V
O
Material: • Connectors: Nickel-plated brass
• Housing: PC-VO (Lexan)
Diagnostics (Logical): • Diagnostic information available through the fieldbus gateway
Diagnostics (Physical): • LED to indicate module bus communication status as well as I/O diagnostics
• LEDs for each I/O point to indicate on/off status
BL67-16DO-0.1A-P
3.583
(91.0)
1.654 (42.0)
Diagnostic
LEDs
I/O LEDs
I/O
Connector
1.260 (32.0)
5.709
(145.0)
Outputs Data
Part Number Drawing
Output
Count
Connectors Pinout
Outputs per
Connector
Current Style
Individual
Diagnostics
I/O
Map
BL67-16DO-0.1-P with BL67-B-1M23-19 A 16 0 M23-16O 16 0.1 A Source 1
1 = Output
14
2 = Output
10
3 = Output
6
4 = Output
3
5 = Output
2
6 = V-
7 = Output
1
8 = Output
5
9 = Output
9
10 = Output
13
11 = Output
12
12 = PE
13 = Output
11
14 = Output
7
15 = Output
0
16 = Output
4
17 = Output
8
18 = Output
15
19 = V
I
+
M23-16O
1 11
12
13
18
9
16
10
17
8
7
15 6
5
19
4
14
3
2
Outputs Connectors
I/O Data Map 1
Shown with
BL67-8-1M23 base
Application:
• SMC Valve Blocks; CSM DB25 19-17-*/SMC
• MAC Valve Blocks; CSM DBK 25 19-17-*/MAC
• 16MB12-4P2-CS191; CSM CKM 19-19-0-*/S101
* Indicates lenght in meters.
1 Splitter box, refer to Connectivity Catalog for more information
Note: TURCK cannot guarantee pinout pinout of connecting devices.
Please verify pinout is correct for your application.
Out
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
n-1 (Data for modules to the left)
n 0-7 0-6 0-5 0-4 0-3 0-2 0-1 0-0
n+1 0-15 0-14 0-13 0-12 0-11 0-10 0-9 0-8
n+2 (Data for modules to the right)
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles
