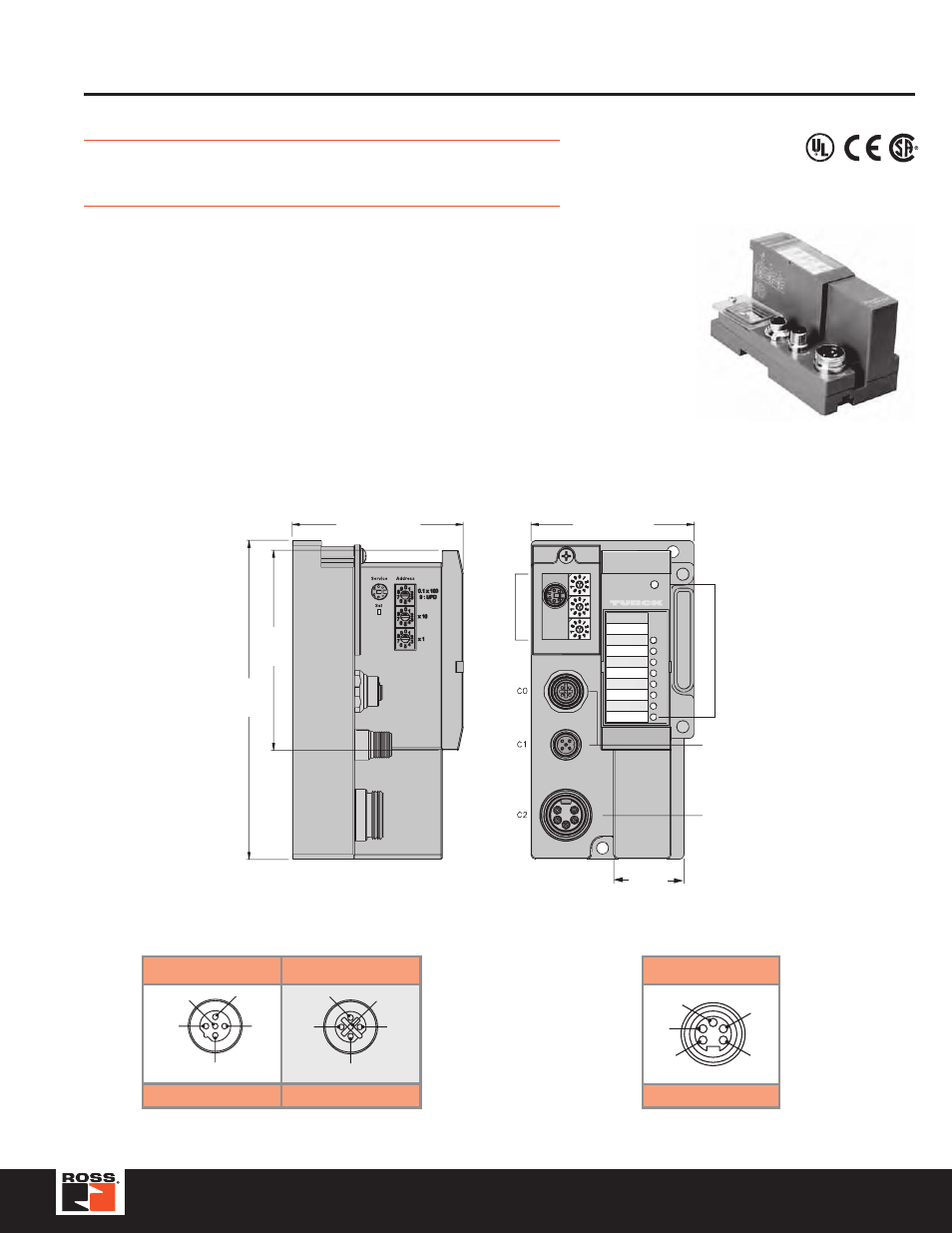

TURCK Modular Industrial I/O System BL 67
CANopen Gateway
Electrical: • Operating Current: <600 mA from V
MB
•
Supply Current: <8 A to I/O (from DeviceNet)
• Backplane Current: <1.5 A (from DeviceNet)
Mechanical: • Operating Temperature: -25 to +55°C (+32 to +131°F)
•
Protection: IP 67
• Vibration: 5 g @ 10-500 Hz
Material: • Housing: PC-V0 (Lexan)
Diagnostics (Logical)
• Diagnostic information available through the DeviceNet I/O map
Diagnostics (Physical)
• LEDs to indicate status of DeviceNet and Module Bus communication
BL67-GW-CO
Note: Power feeding modules may be used for I/O current supply to prevent overloading the DeviceNet power supply.
5.709
(145.0)
3.583
(91.0)
3.051 (77.5)
Service
Port and
Address
Switches
2.913 (74.0)
Diagnostic
LEDs
CANopen
Connector
Power
Connector
1.260
(32.0)
POWER
Error
VO
GW-CO
BL67 IO
GW
VCC
VI
Bus
Male Female
5-Pin 5-Pin
CANopen eurofast ® Pinouts
1 = Shield
2 = V+
3 = V-
4 = CAN_H
5 = CAN_L
* Female connector only
minifast ® Power Pinouts
1 = Gnd
2 = Gnd
3 = PE
4 = V
I
5 = V
O
Male
5-Pin
1 1
1
2 2
2
3 3
3
4 4
4
5 5
5
