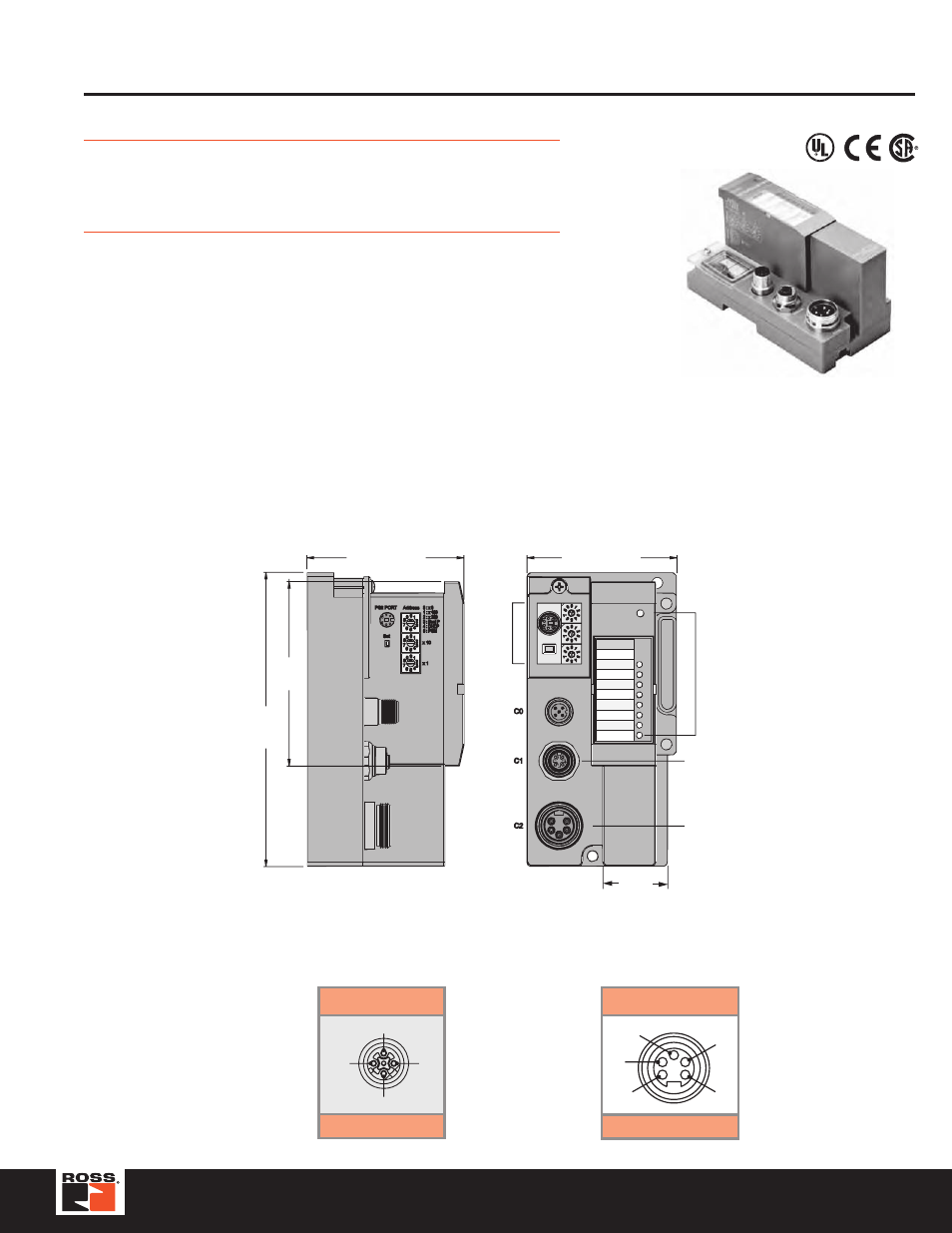

TURCK Modular Industrial I/O System BL 67
Profinet
Ethernet Gateways
BL67-GW-EN-PN
Electrical: • Operating Current: <600 mA from V
MB
• Input Supply Current: <4 A (from V
I
)
• Output Supply Current: <8 A (from V
O
)
• Backplane Current: <1.5 A (from V
MB)
Mechanical: • Operating Temperature: -12 to +55°C (-13 to +131°F)
•
Protection: IP 67
• Vibration: 5 g @ 10-500 Hz
Material: • Housing: PC-V0 (Lexan)
Diagnostics (Logical)
• Diagnostic information available through the DeviceNet I/O map
Diagnostics (Physical)
• LEDs to indicate status of DeviceNet and Module Bus communication
5.709
(145.0)
3.583
(91.0)
3.051 (77.5)
Service
Port and
Address
Switches
2.913 (74.0)
Diagnostic
LEDs
Ethernet
Connector
Power
Connector
1.260
(32.0)
ETHERNET
POWER
LNK/ACT
MS
VI
VO
VCC
GW
GW-EN
BL67 IO
Female
4-Pin
Ethernet Pinout
Male
5-Pin
1 = TD+
2 = RD+
3 = TD-
4 = RD-
1 = Gnd
2 = Gnd
3 = PE
4 = VI
5 = VO
5-pin minifast ® Power Pinout
3
4
5 1
2
1
2
3
4
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles
