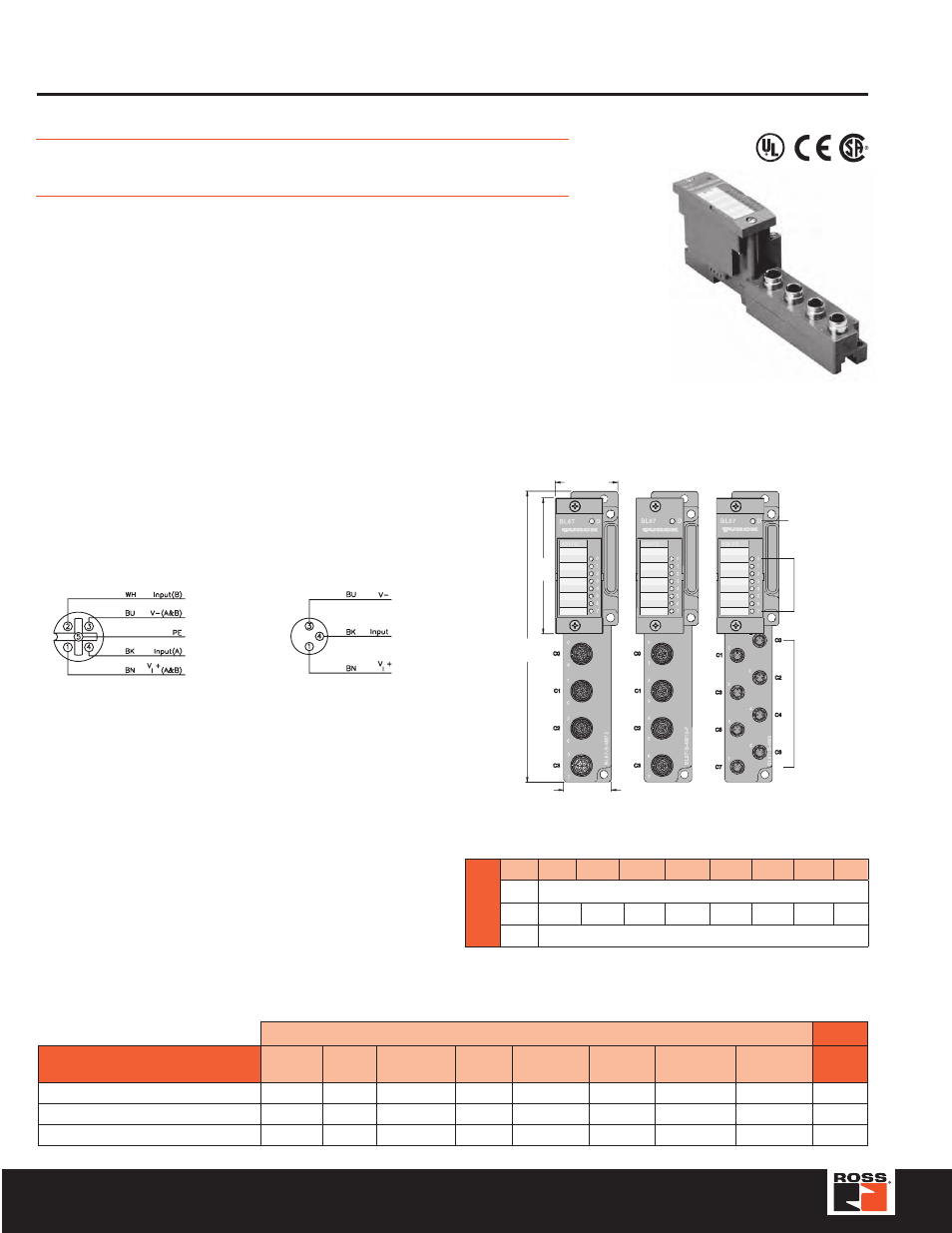

TURCK Modular Industrial I/O System BL 67
Deluxe 8 Discrete Input Modules BL67-8DI-PD
Input Connectors
PI
Mating cordset: PSG 3M-*
2S
Mating cordset: RK 4.4T-*-RS 4.4T
Splitter: VBRS 4.4-2RK 4T-*/*
Shown with
BL67-B-4M12 base
Electrical: • Operating Current: <30 mA from V
MB
<100 mA from V
I
Power Distribution: • Inputs: V
I
• Logic: V
MB
and V
I
Material: • Connectors: Nickel-plated brass
• Housing: PC-VO (Lexan)
Diagnostics (Logical):
• Diagnostic information available through the fieldbus gateway
Diagnostics (Physical):
• LED to indicate module bus communication status as well as I/O diagnostics
• LEDs for each I/O point to indicate on/off status
Inputs Data
Part Number Drawing
Input
Count
Connectors Pinout
Inputs per
Connector
Sensor
Style
Individual
Diagnostics
Wire-Break
Detection
I/O
Map
BL67-8DI-PD with BL67-B-4M12* A 8 0-3 2S 2 PNP X X 1
BL67-8DI-PD with BL67-B-4M12-P* B 8 0-3 2S 2 PNP X 1
BL67-8DI-PD with BL67-B-8M8* C 8 0-7 PI 1 PNP X 1
Note: I/O faults can be reported in the I/O map. Consult the product user
manual for details.
I/O Data Map 1
In
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
n-1 (Data for modules to the left)
n I-7 I-6 I-5 I-4 I-3 I-2 I-1 I-0
n+1 (Data for modules to the right)
Modular I/O
•
Fieldbus Independent Configuration
•
IP 67 Protection
•
Various I/O Styles
A B C
3.583
(91.0)
1.654 (42.0)
Diagnostic
LEDs
I/O LEDs
I/O
Connectors
1.260 (32.0)
7.677
(195.0)
