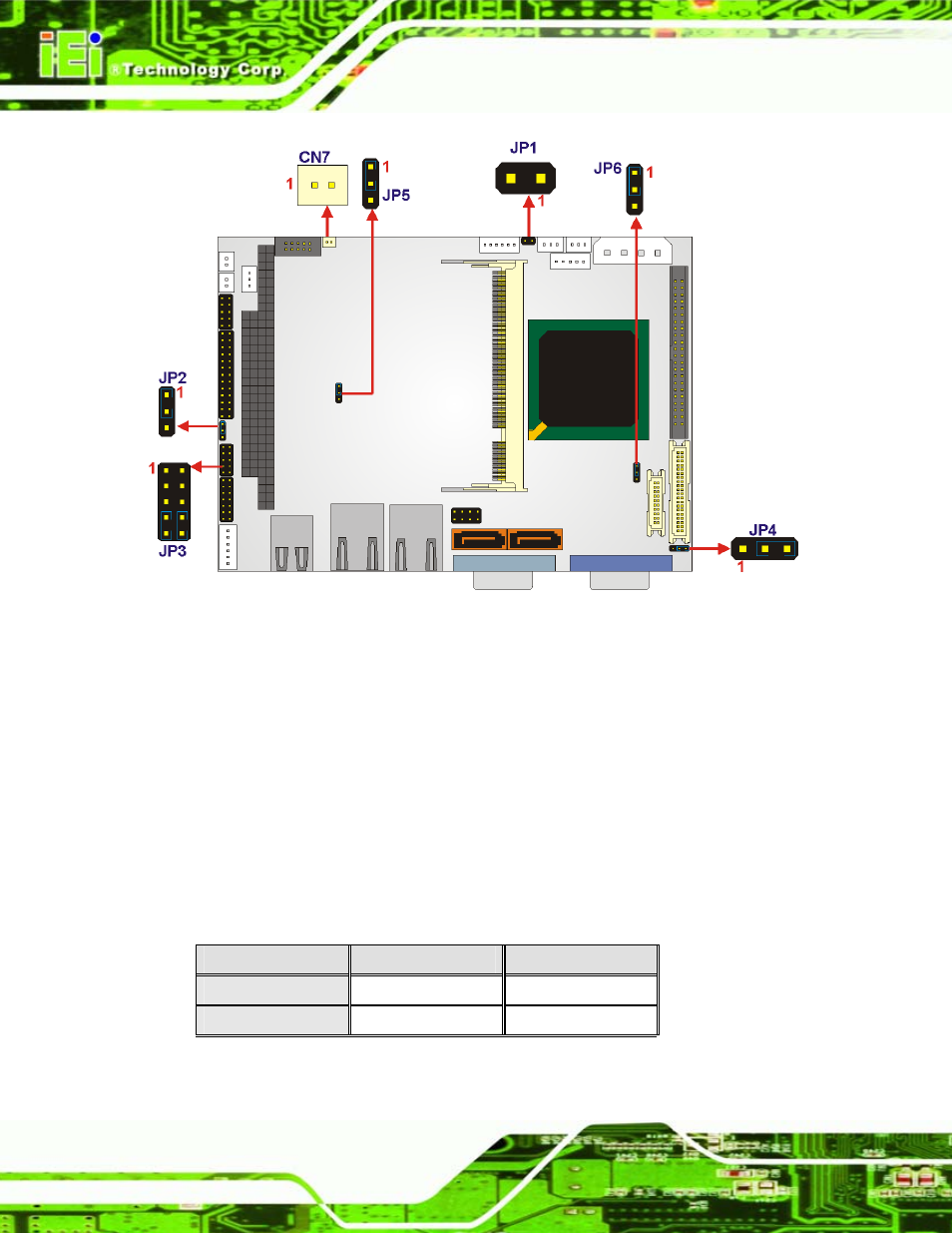

Figure 5-2: Jumper Locations

5.5.1 AT Power Select Jumper Settings

Jumper Label:

JP1

Jumper Type:

2-pin header

Jumper Settings:

See Table 5-3

Jumper Location:

See Figure 5-2

The AT/ATX Power Mode Select jumper specifies the systems power mode. Jumper

settings are shown in Table 5-3.

AT Power Select

Description

Short Use

AT

power

Default

Open Use

ATX

power

Table 5-3: AT Power Select Jumper Settings
