4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the WAFER-LX.
4.2.1 AT Power Connector
CN Label: CN1
CN Type: 4-pin AT power connector (1x4)
CN Location: See Figure 4-3
CN Pinouts: See Table 4-4
The AT power connector is connected to an AT power source that powers the system.

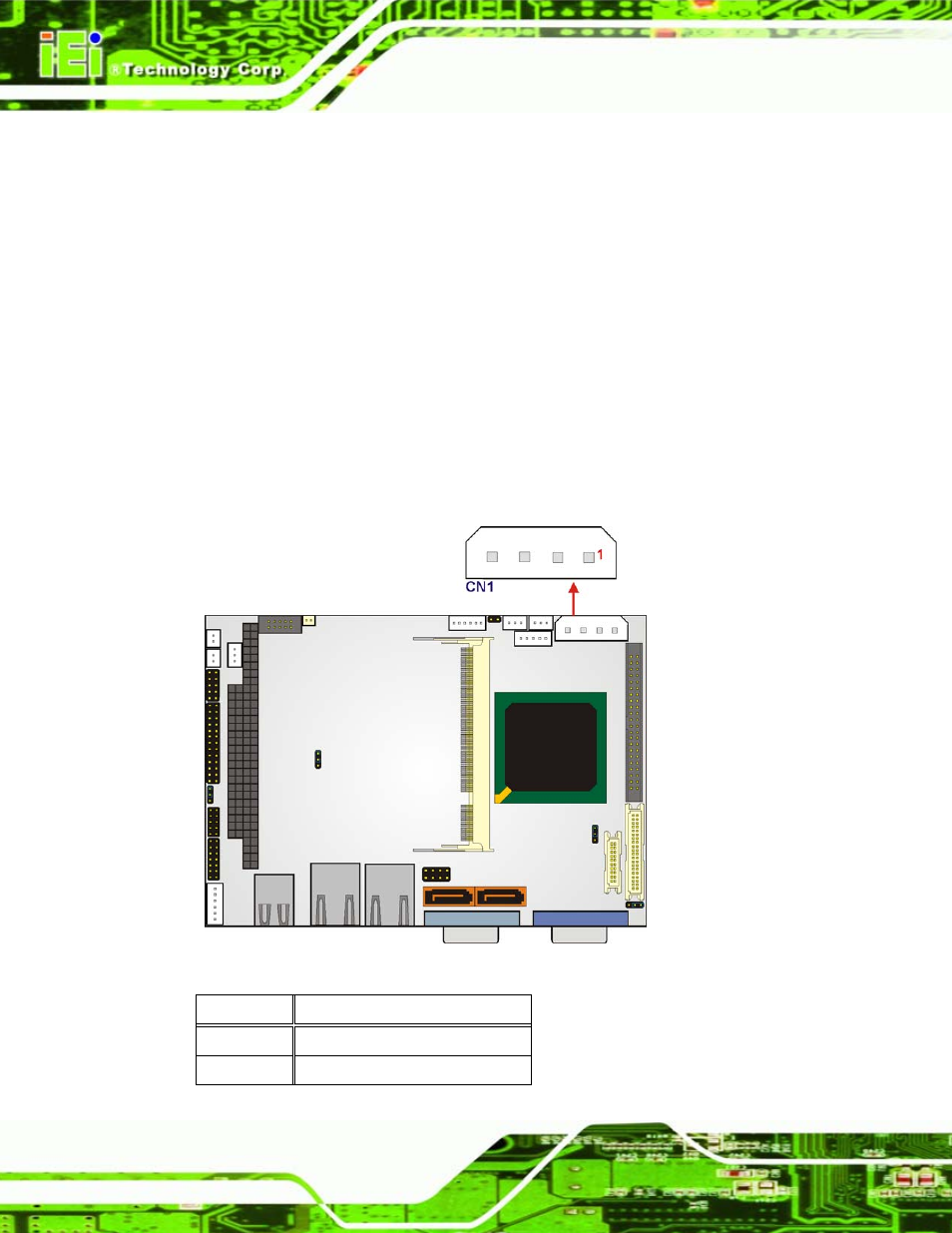

Figure 4-3: AT Power Connector Location
PIN NO. DESCRIPTION
1 +12 V
2 GND
