WAFER-LX Motherboard

Page 39

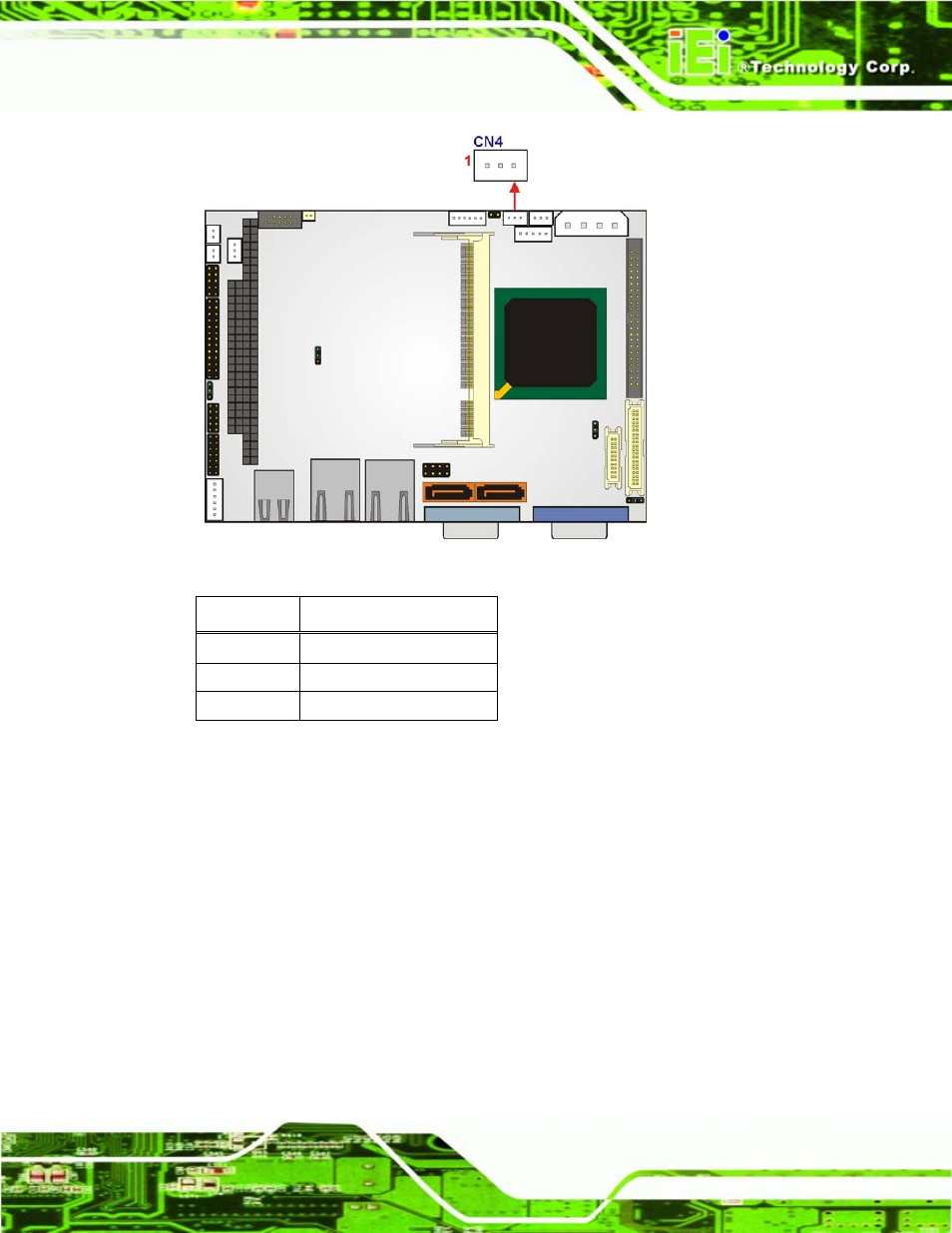

Figure 4-9: Fan Connector Location

PIN NO.

DESCRIPTION

1 CPUFAN_OUT

2 +12

V

3 GND

Table 4-10: Fan Connector Pinouts

4.2.8 Floppy Disk Connector (Slim Type, Optional)

CN Label:

CN31 (solder side)

CN Type:

26-pin header (1 x 26)

CN Location:

See Figure 4-10

CN Pinouts:

See Table 4-11

The floppy disk connector (FDD1) is connected to a floppy disk drive.
