WAFER-LX Motherboard
Page 51

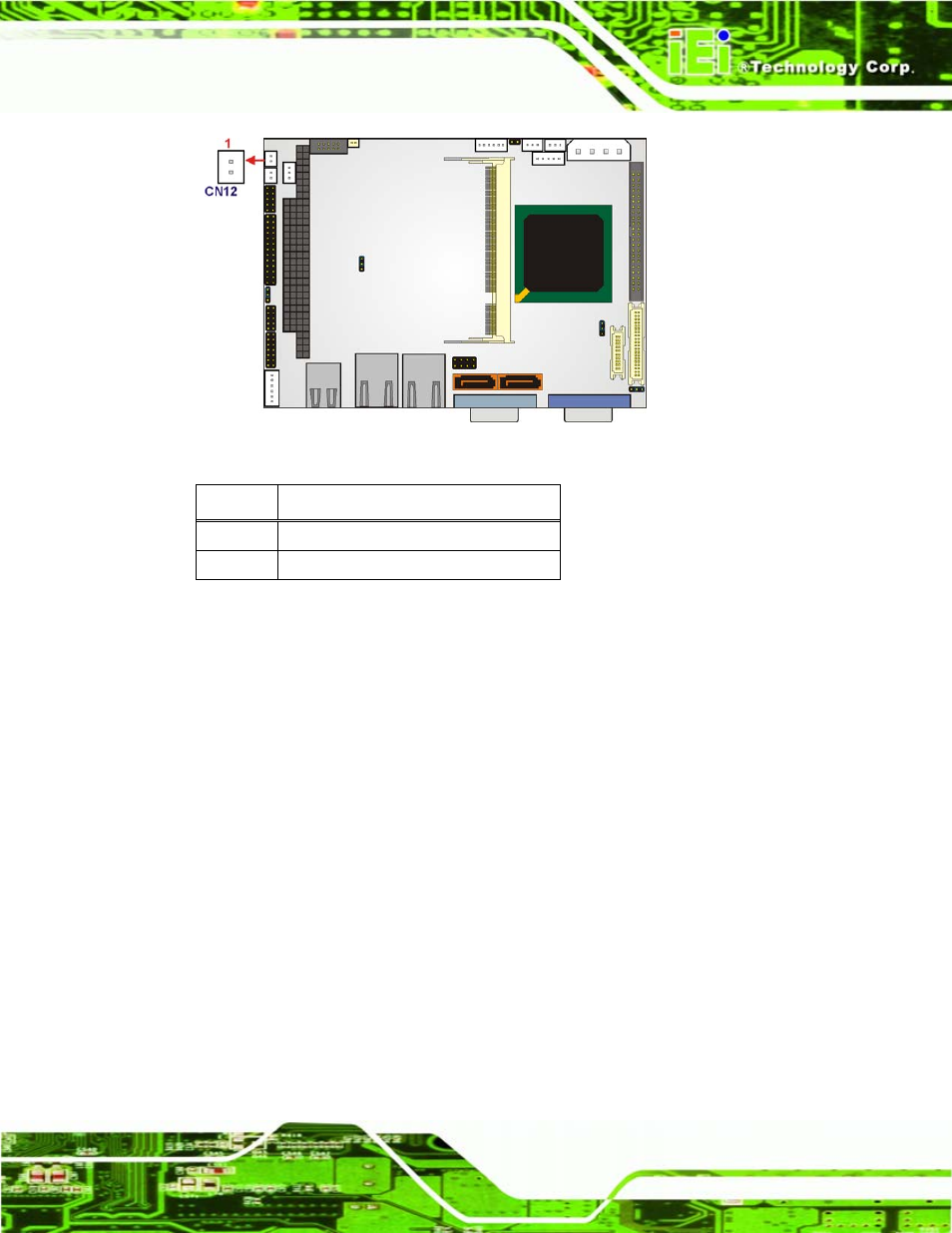

Figure 4-19: Reset Button Connector Locations
PIN NO. DESCRIPTION
1 Reset+
2 Ground
Table 4-20: Reset Button Connector Pinouts
4.2.18 RS-232/422/485 Cable Connectors
CN Label: CN16
CN Type: 14-pin header (2x7)
CN Location: See Figure 4-20
CN Pinouts: See Table 4-21
The COM2/COM3 serial port combination connectors connect to RS-232 serial port
devices. The COM2 port is located on pin 1 to pin 10 and the COM3 is located on pin 11 to
pin 14 of CN16.
