4.2.9 GPIO Connector

CN Label:

CN14

CN Type:

10-pin header (2x5)

CN Location:

See Figure 4-11

CN Pinouts:

See Table 4-12

The General Purpose Input Output (GPIO) connector can be connected to external I/O

control devices including sensors, lights, alarms and switches.

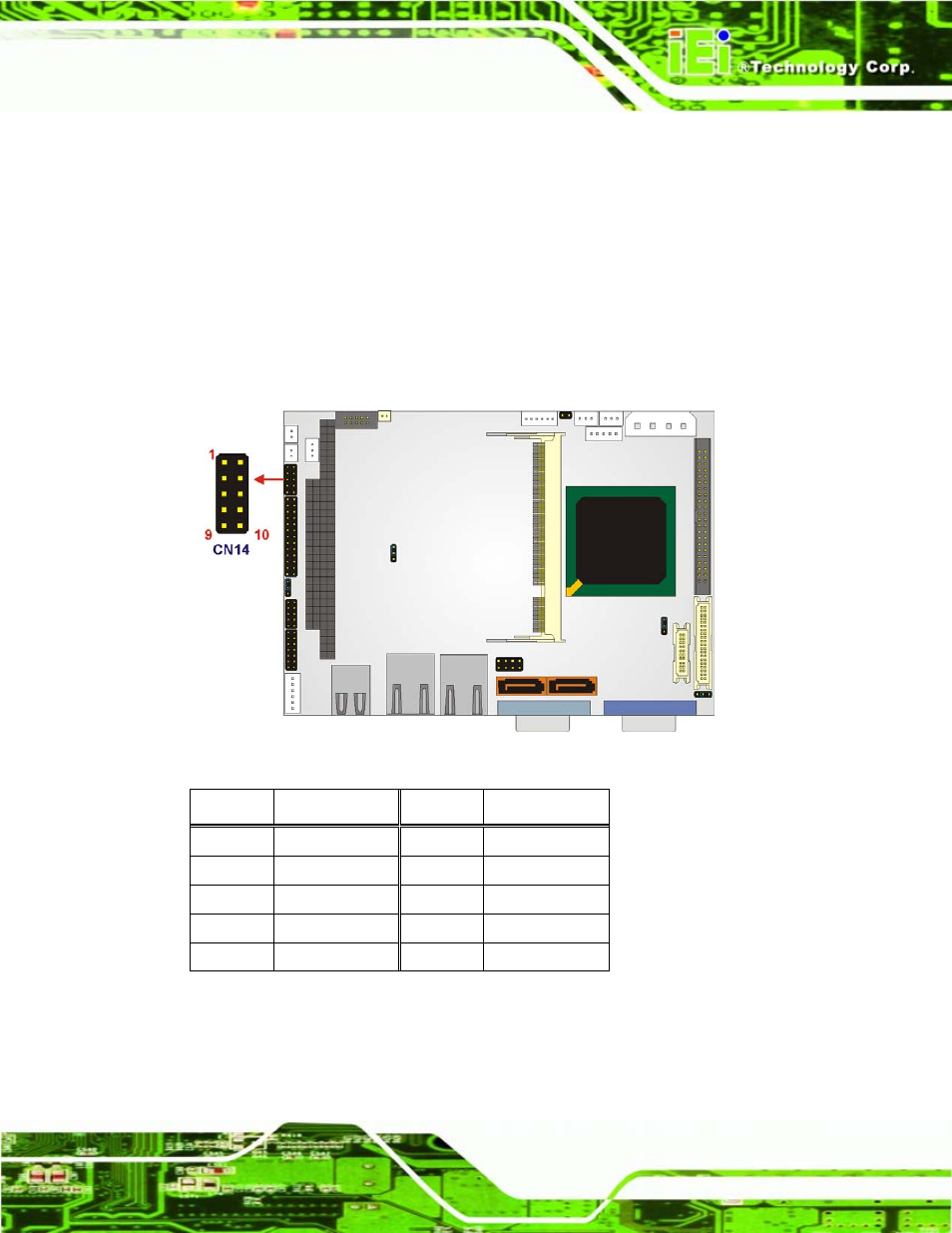

Figure 4-11: GPIO Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 GND

2 5

V

3 GPO0

4 GPO1

5 GPO2

6 GPO3

7 GPI0

8 GPI1

9 GPI2

10

GPI3

Table 4-12: GPIO Connector Pinouts
