WAFER-LX Motherboard
Page 35
CN Type: 10-pin header (2x5)
CN Location: See Figure 4-6
CN Pinouts: See Table 4-7
The audio connector is connected to an on-board codec. An external audio connector kit
can be connected to the connector to provide sound input and output.

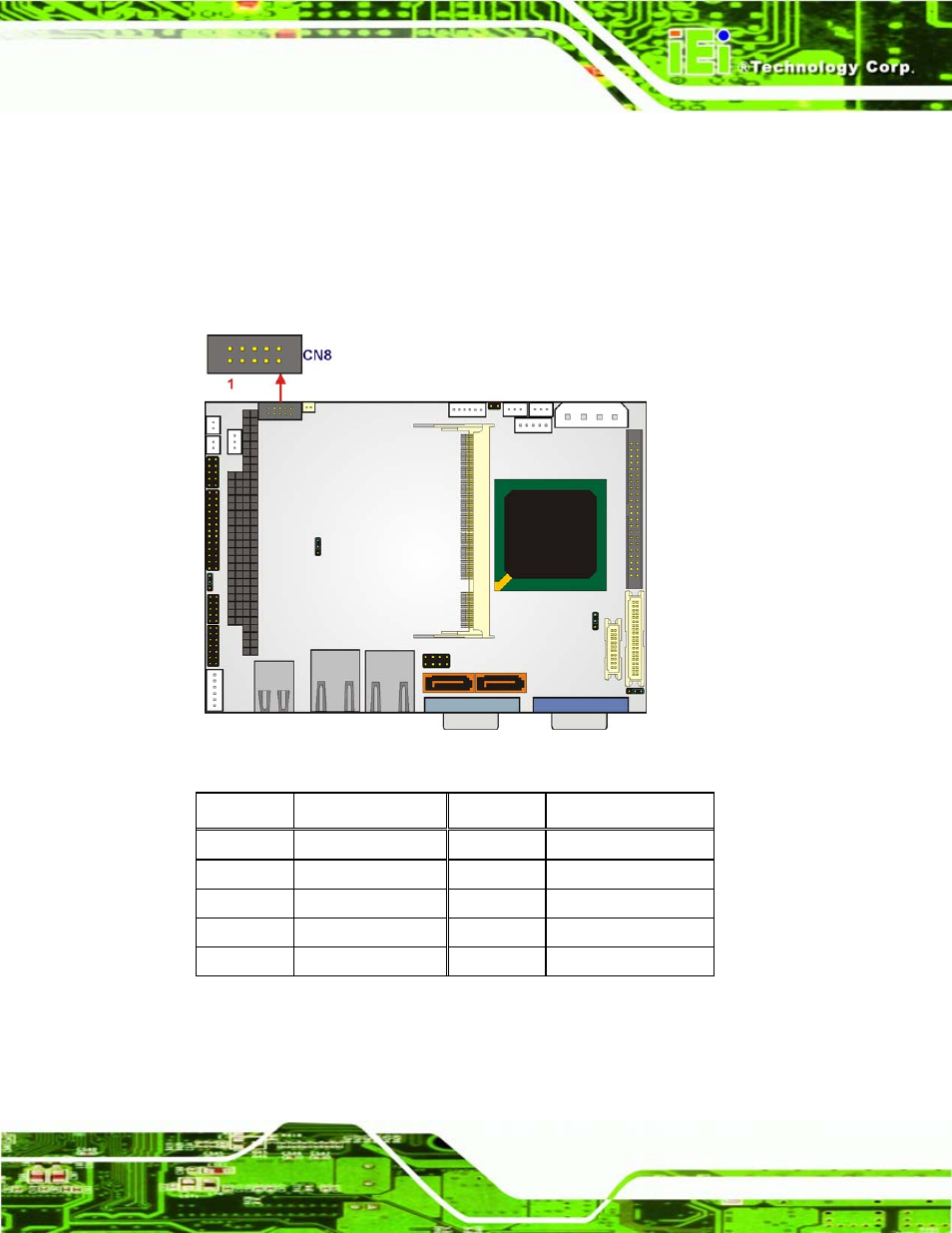

Figure 4-6: Audio Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Line Out Right 2 Line In Right
3 GND 4 GND
5 Line Out Left 6 Line In Left
7 GND 8 GND
9 MIC In 10 N/C
Table 4-7: Audio Connector Pinouts
