WAFER-LX Motherboard

Page 34

PIN NO.

DESCRIPTION

3 PS_ON

Table 4-5: ATX Power Connector Pinouts

4.2.3 ATX Power Button Connector

CN Label:

CN13

CN Type:

1-pin header (1x2)

CN Location:

See Figure 4-5

CN Pinouts:

See Table 4-6

The ATX power button connector to a power switch installed on the system chassis.

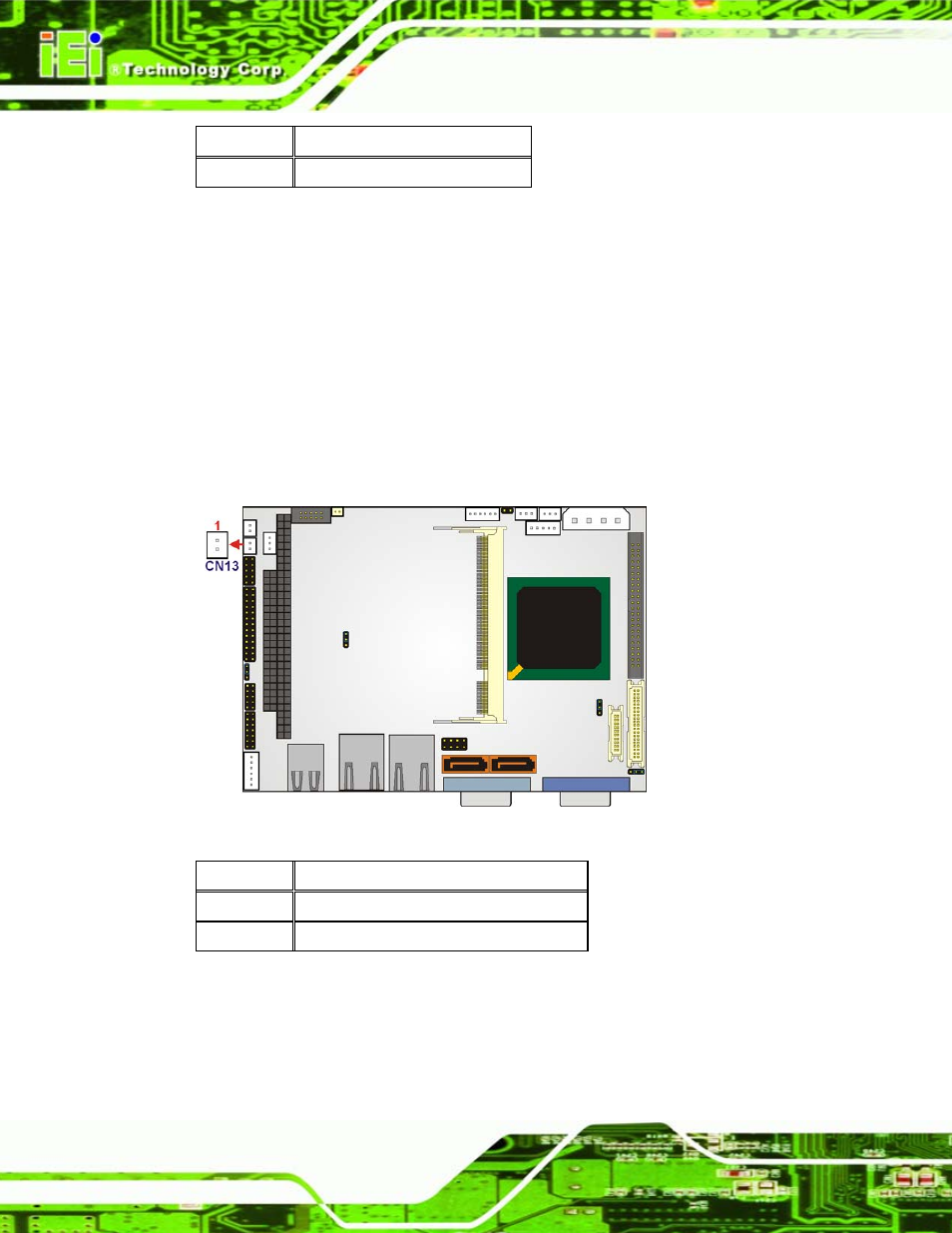

Figure 4-5: ATX Power Button Connector

PIN NO.

DESCRIPTION

1 PWRBTN#

2 GND

Table 4-6: ATX Power Button Connector Pinouts

4.2.4 Audio Connector

CN Label:

CN8
