WAFER-LX Motherboard
Page 49
CN Pinouts: See Table 4-19
The PC/104 slot enables a PC/104 compatible expansion module to be connected to the
board.

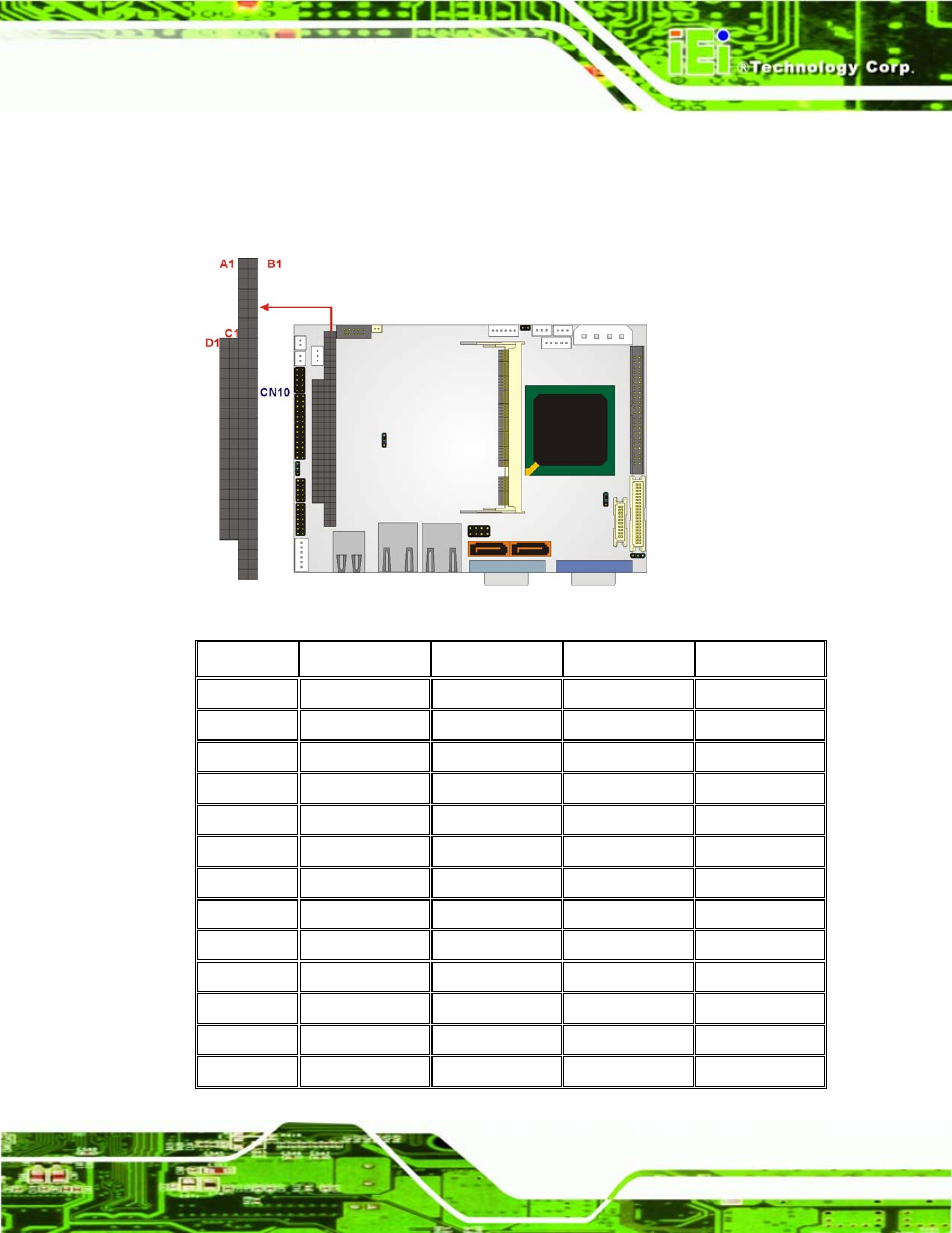

Figure 4-18: PC/104 Slot Location
Pin No. Column A Column B Column C Column D
1 IOCHK- GROUND GROUND GROUND
2 SD7 RSTDRV SBHE- MCS16-
3 SD6 +5 V SA23 IOCS16-
4 SD5 IRQ9 SA22 IRQ10
5 SD4 -5 V SA21 IRQ11
6 SD3 DREQ2 SA20 IRQ12
7 SD2 -12 V SA19 IRQ15
8 SD1 ZWS- SA18 IRQ14
9 SD0 +12 V SA17 DACK0-
10 IOCHRDY GROUND MEMR- DREQ0
11 AEN SMEMW- MEMW- DACK5-
12 SA19 SMEMR- SD8 DRREQ5
13 SA18 IOW- SD9 DACK6-
