Step 3:

The “Source” or “Stripe0” drive is shown in green text with a [*] at the beginning.

Step 4:

Select the drive to be the “Mirror” or “Stripe1” and press Enter.

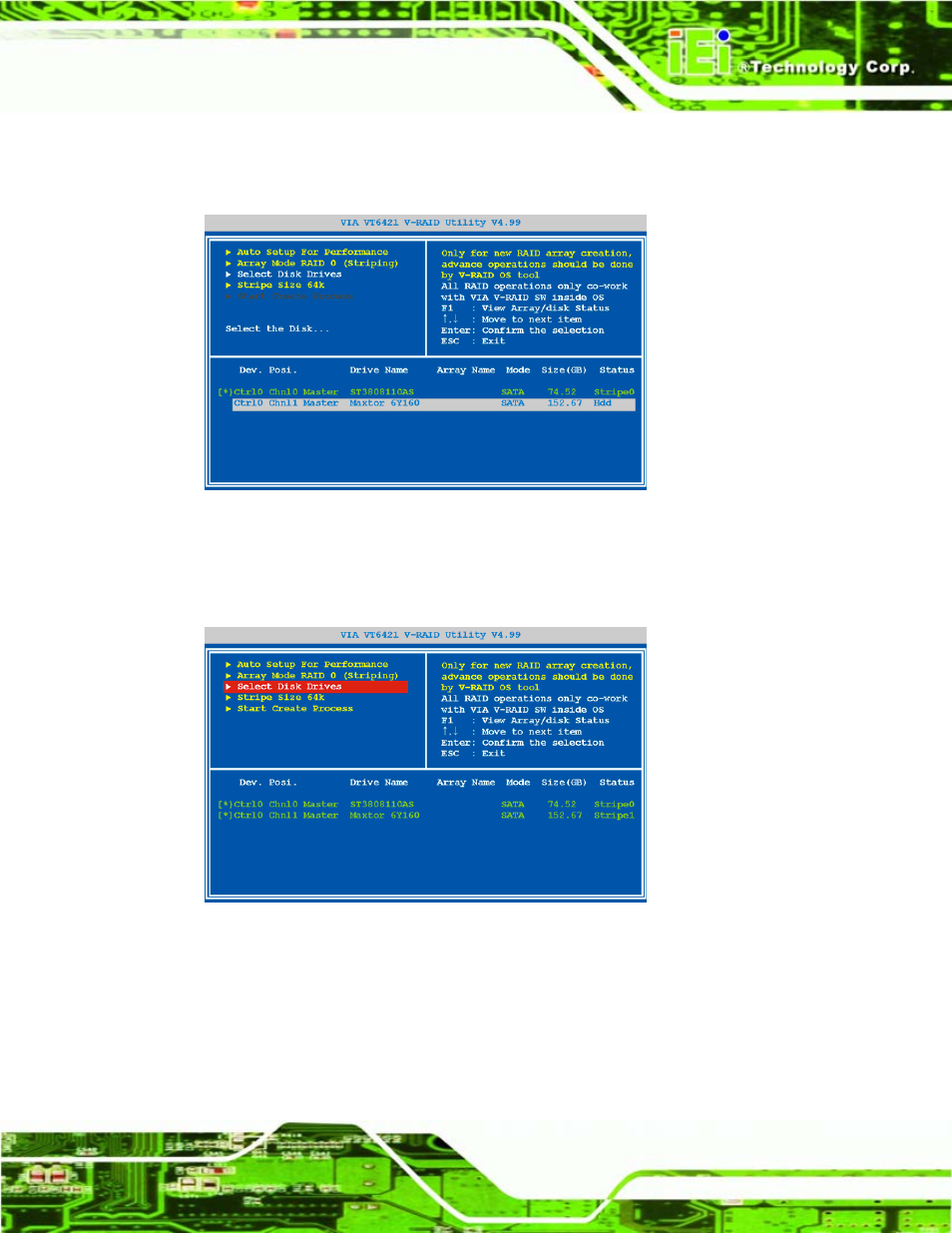

Figure 7-10: Select Second Drive

Step 5:

The “Mirror” or “Stripe1” drive is now also shown in green text with a [*] at the

beginning.

Figure 7-11: Disk Drives Selected
