WAFER-LX Motherboard
Page 29

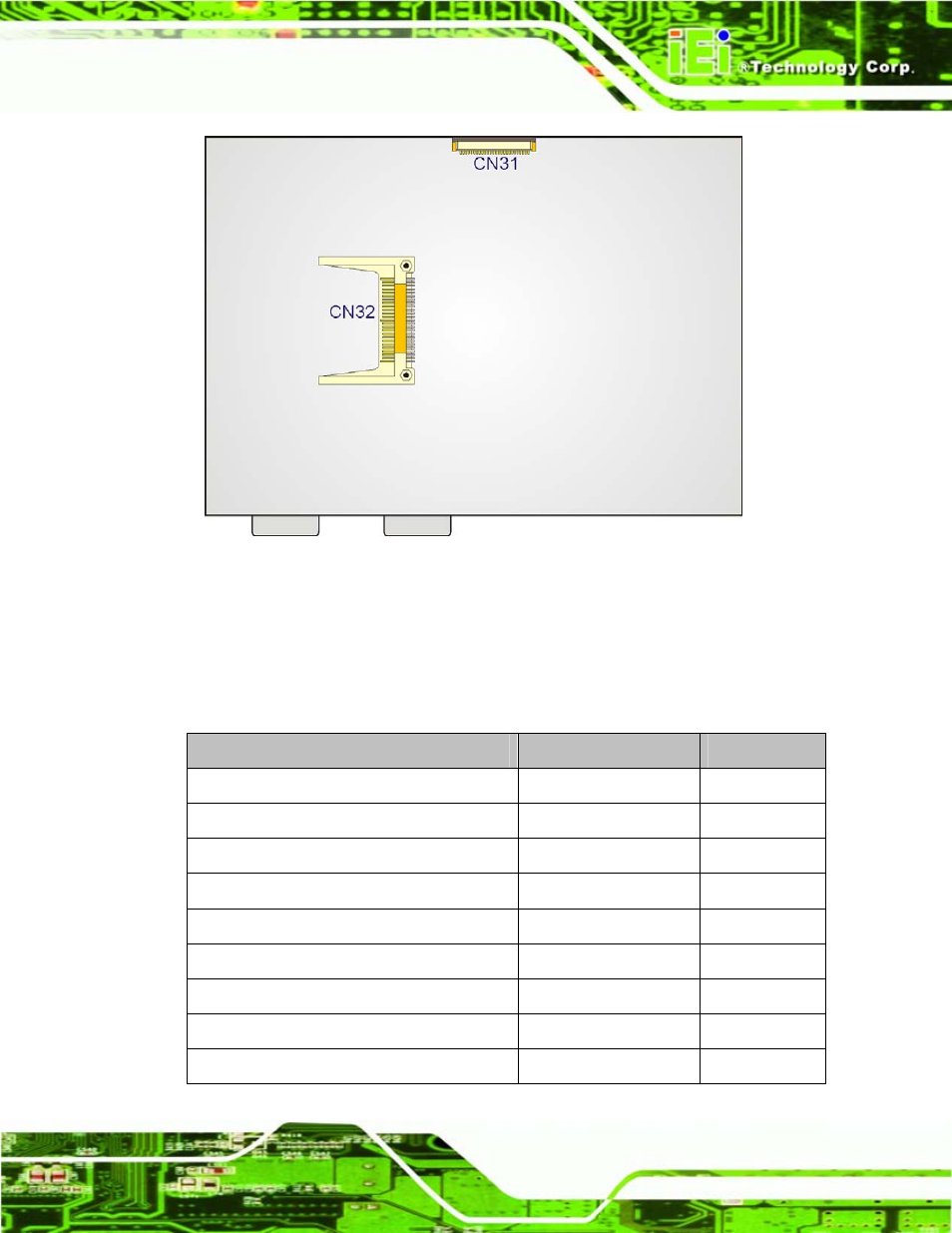

Figure 4-2: Connector and Jumper Locations (Solder Side)
4.1.2 Peripheral Interface Connectors
Table 4-1 shows a list of the peripheral interface connectors on the WAFER-LX. Detailed
descriptions of these connectors can be found in Section 4.2 on page 31.
Connector Type Label
AT power connector 4-pin header CN1
ATX power function connector 3-pin header CN2
ATX power button connector 2-pin header CN13
Audio connector 10-pin header CN8
Battery connector 2-pin header CN7
Compact Flash (CF) connector 50-pin header CN32
Fan connector 3-pin header CN4
Floppy Disk connector 26-pin header CN31
GPIO connector 10-pin header CN14
