4.2.5 Battery Connector

CN Label:

CN7

CN Type:

2-pin header (1x2)

CN Location:

See Figure 4-7

CN Pinouts:

See Table 4-8

The battery connector is connected to a backup battery. The battery connector is also

used to reset the CMOS memory if the incorrect BIOS settings have been made and the

system cannot boot up.

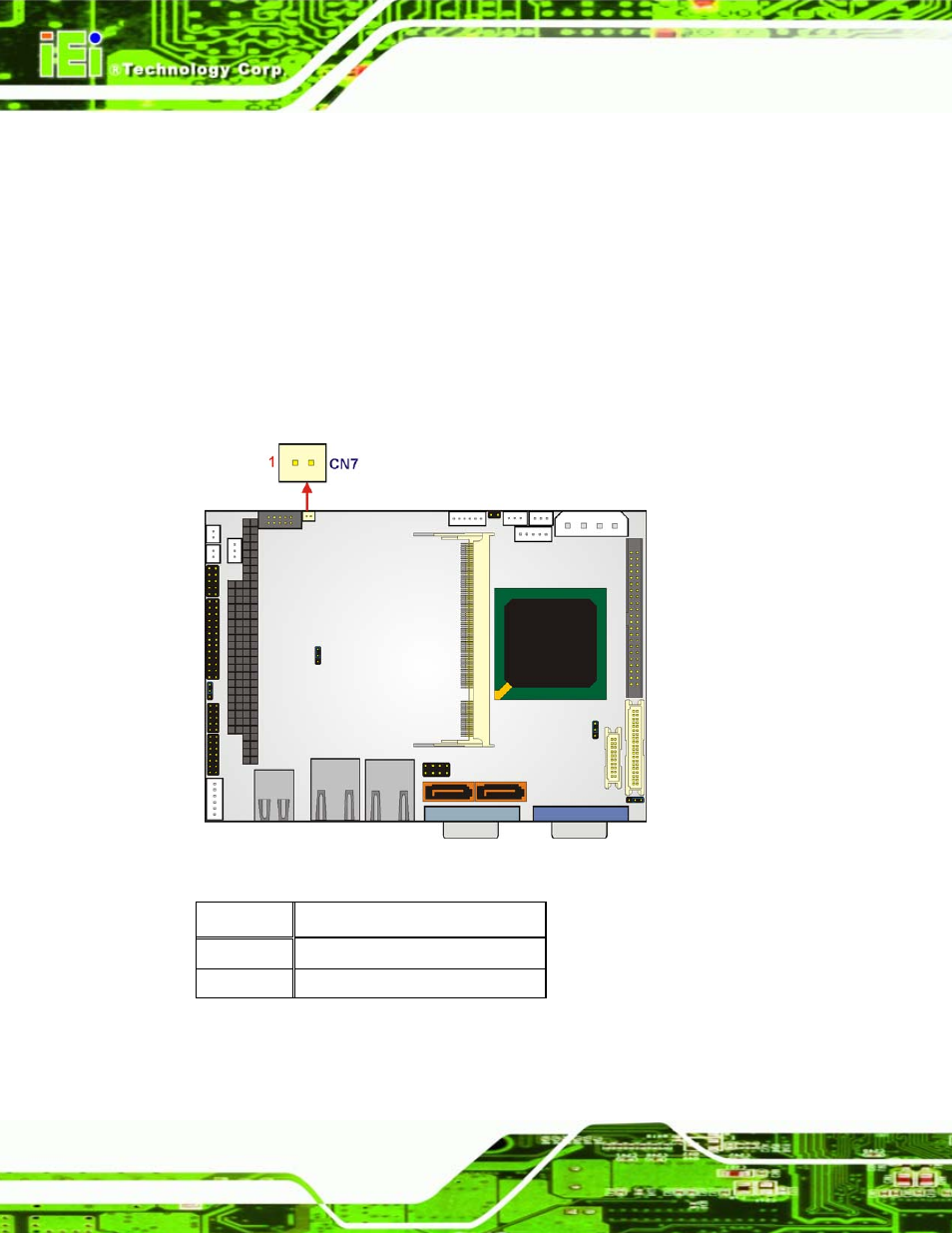

Figure 4-7: Battery Connector Location

PIN NO.

DESCRIPTION

1 Battery+

2 Ground

Table 4-8: Battery Connector Pinouts
