WAFER-LX Motherboard

Page 53

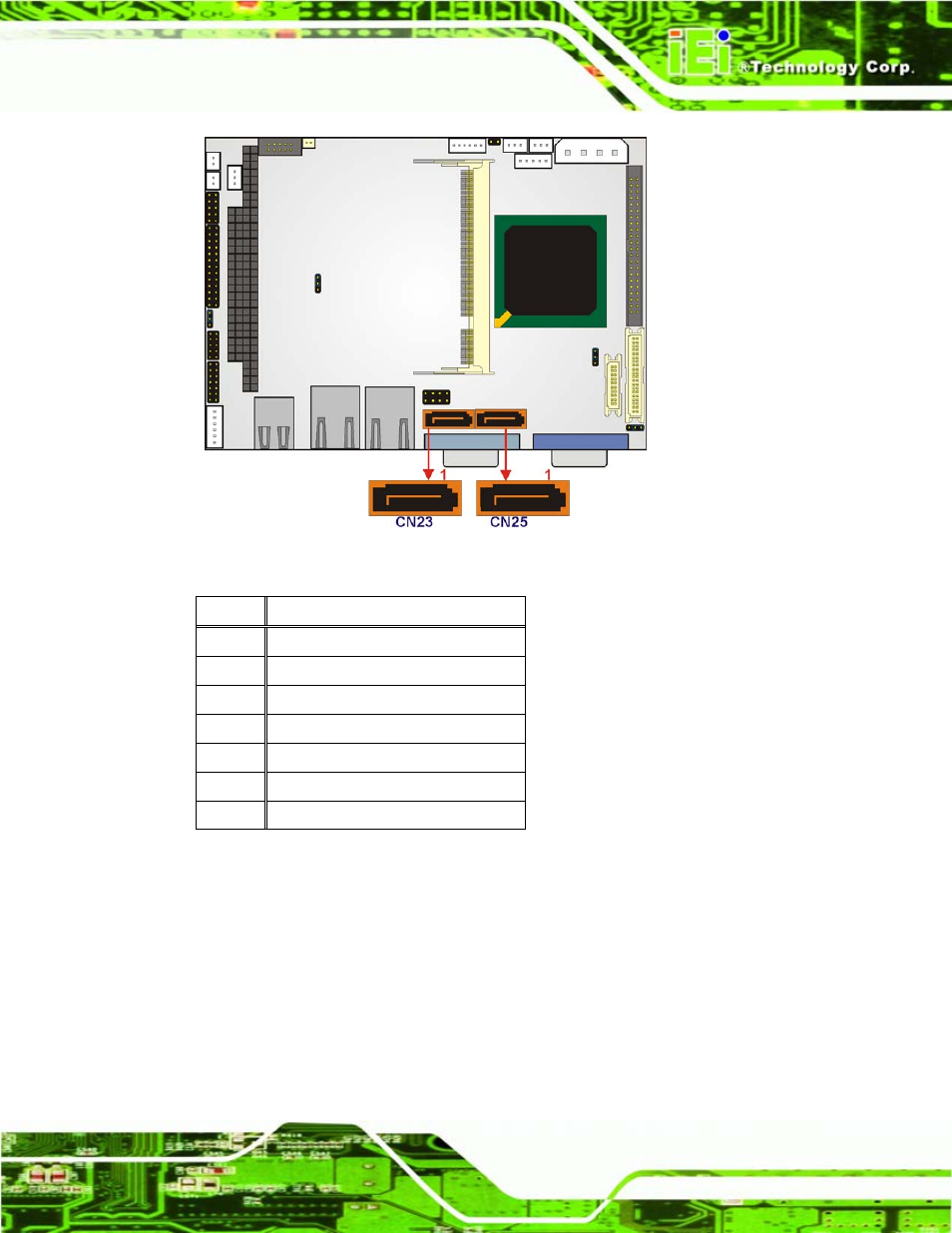

Figure 4-21: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 4-22: SATA Drive Connector Pinouts

4.2.20 TFT LCD LVDS Connector

CN Label:

CN29

CN Type:

20-pin header (2x10)

CN Location:

See Figure 4-22

CN Pinouts:

See Table 4-23
