WAFER-LX Motherboard

Page 45

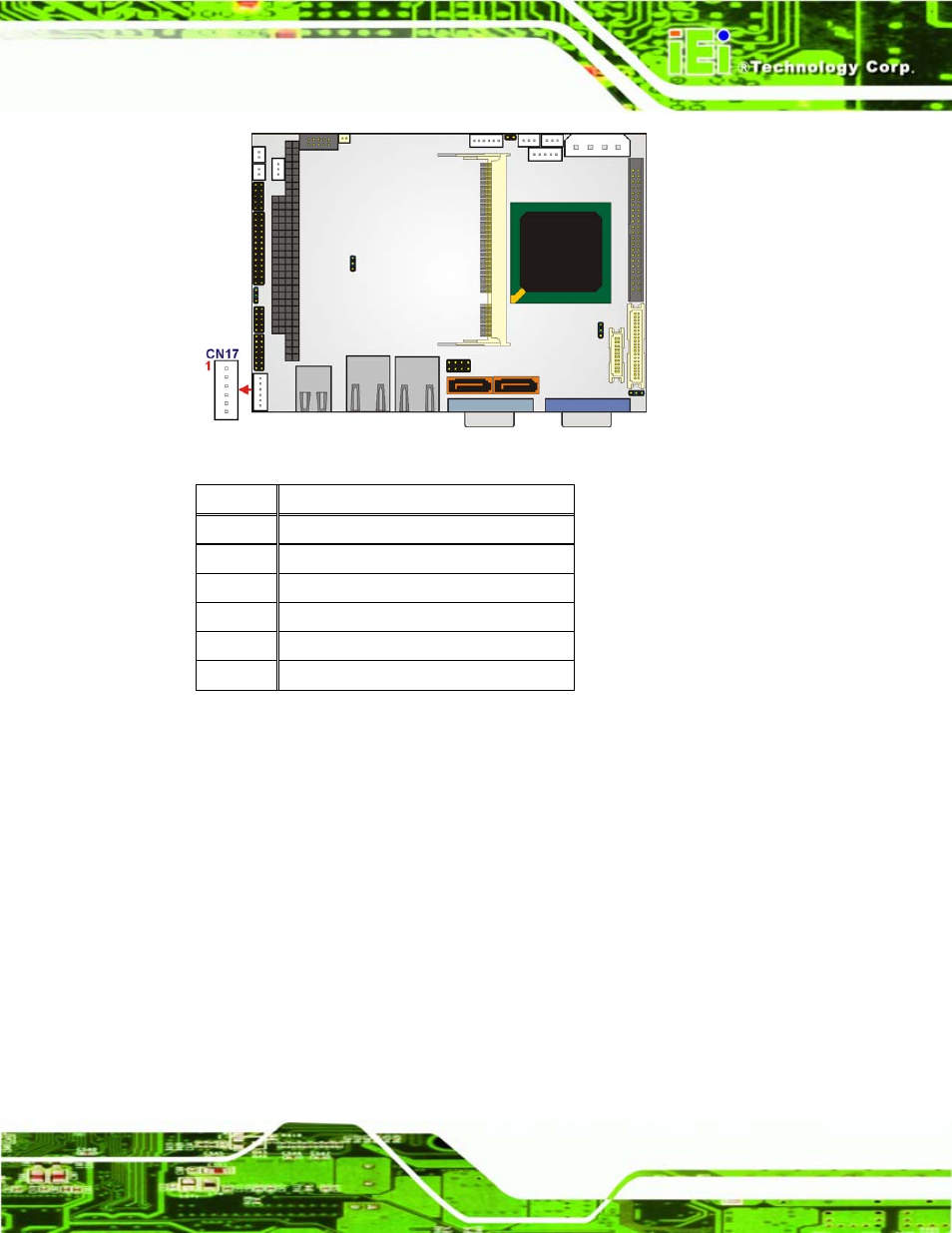

Figure 4-14: Keyboard/Mouse Connector Location

PIN NO.

DESCRIPTION

1 +5

V

2 MS

DATA

3 MS

CLK

4 KB

DATA

5 KB

CLK

6 GND

Table 4-15: Keyboard/Mouse Connector Pinouts

4.2.13 LED Connector

CN Label:

CN5

CN Type:

6-pin header (1x6)

CN Location:

See Figure 4-15

CN Pinouts:

See Table 4-16

The LED connector (CN5) connects to an HDD indicator LED and a power LED on the

system chassis to inform the user about HDD activity and the power on/off status of the

system.
