WAFER-LX Motherboard

Page 57

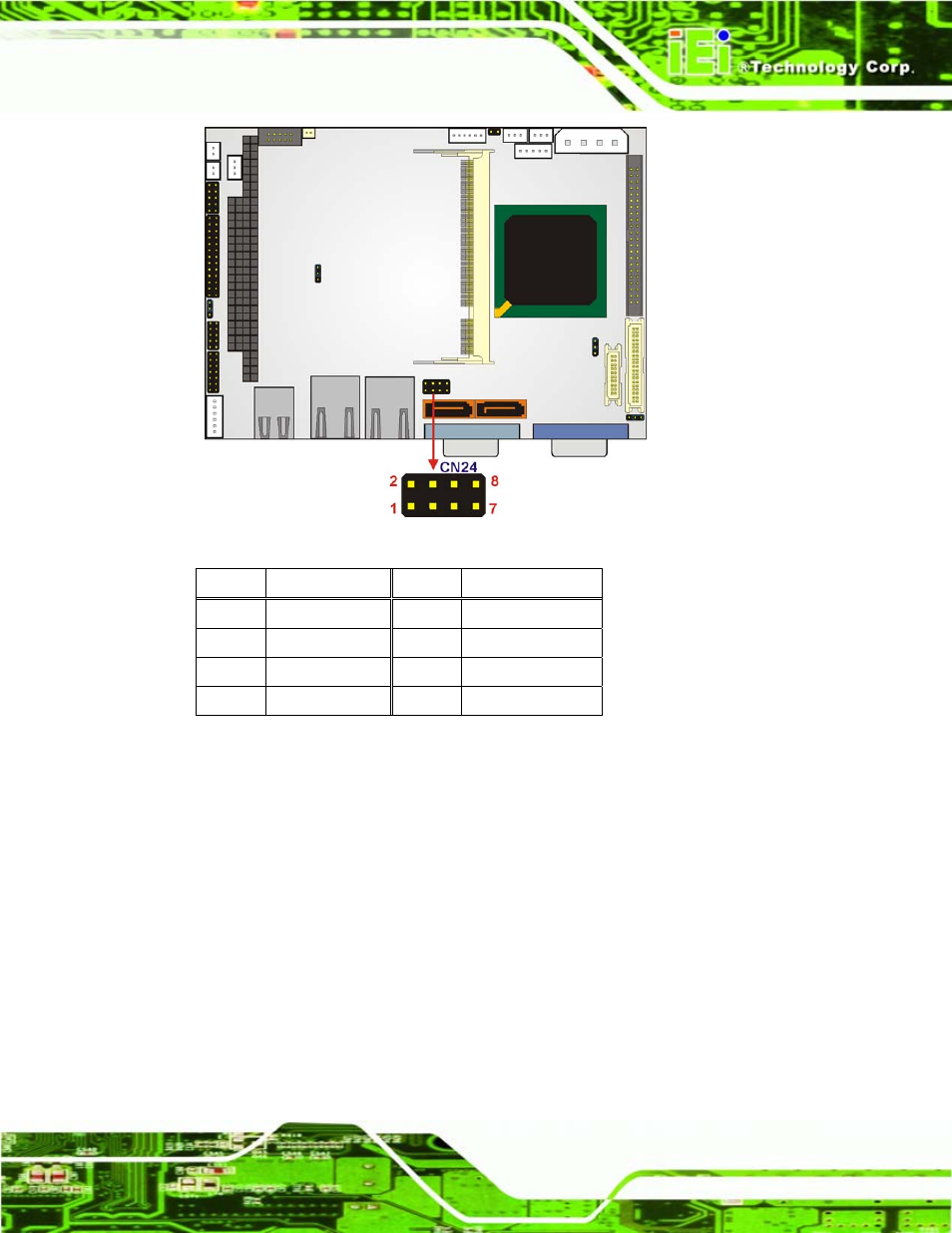

Figure 4-24: USB Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO.

DESCRIPTION

1 VCC_USB 2 GND

3 DATA3-

4 DATA4+

5 DATA3+ 6 DATA4-

7 GND

8 VCC_USB

Table 4-25: USB Port Connector Pinouts

4.3 External Interface Connectors

4.3.1 External Interface Connector Overview

Figure 4-25 shows the WAFER-LX motherboard external interface connectors. The

WAFER-LX on-board external interface connectors are listed below and shown in

Figure 4-25:

ƒ 1 x USB combo port

ƒ 2 x Ethernet connector

ƒ 1 x Serial communications port

ƒ 1 x VGA port
