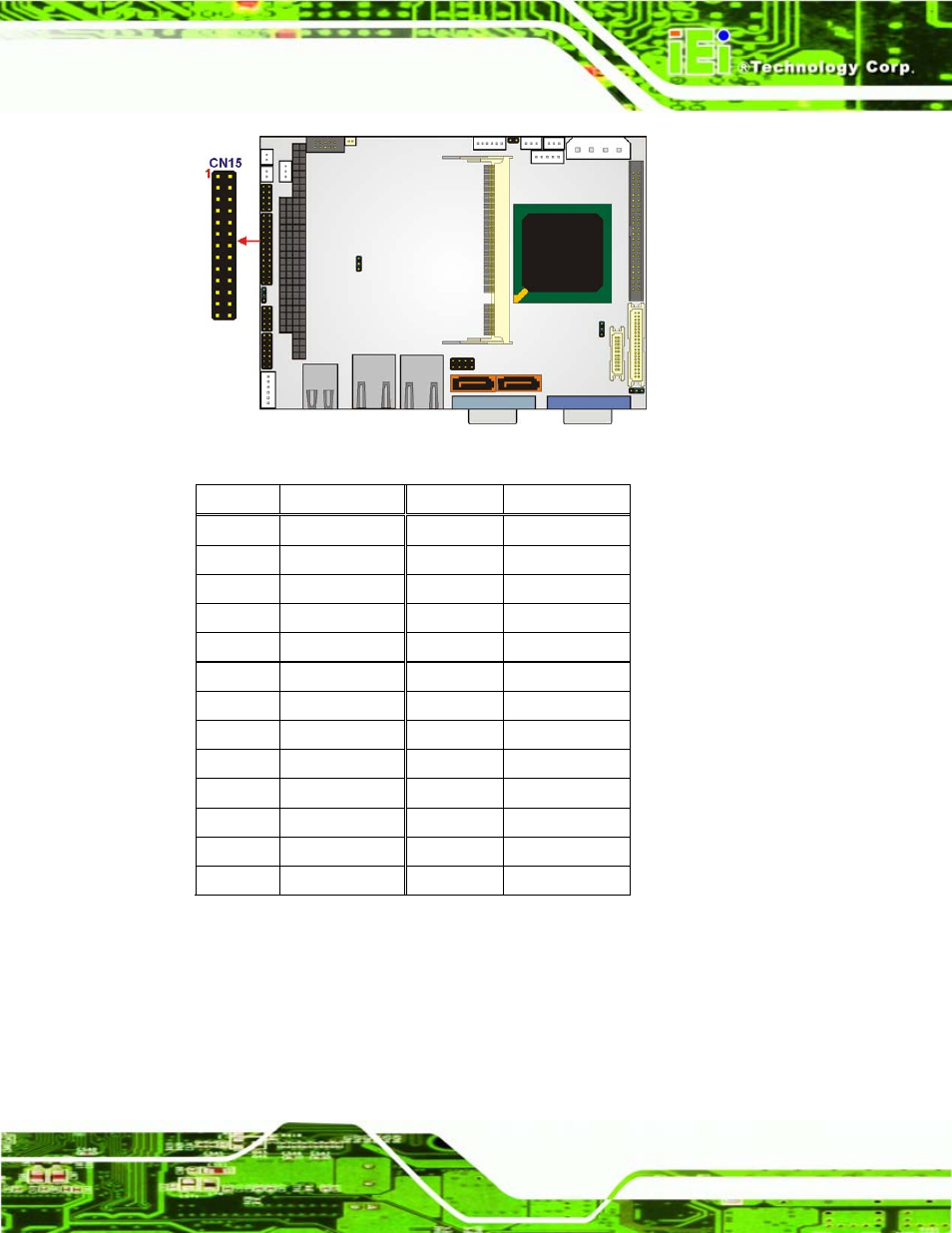

Figure 4-16:Print Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 STB#

2 AFD#

3 PD0

4 ERR#

5 PD1

6 INIT#

7 PD2

8 SLIN#

9 PD3

10 GND

11 PD4

12 GND

13 PD5

14 GND

15 PD6

16 GND

17 PD7

18 GND

19 ACK#

20 GND

21 BUSY

22 GND

23 PE

24 GND

25 SLCT

26 N/C

Table 4-17: Parallel Port Connector Pinouts

4.2.15 PC/104 Power Input Connector

CN Label:

CN11

CN Type:

3-pin header (1x3)
