IMBA-G410 ATX Mo th e rb o a rd
P a g e 63

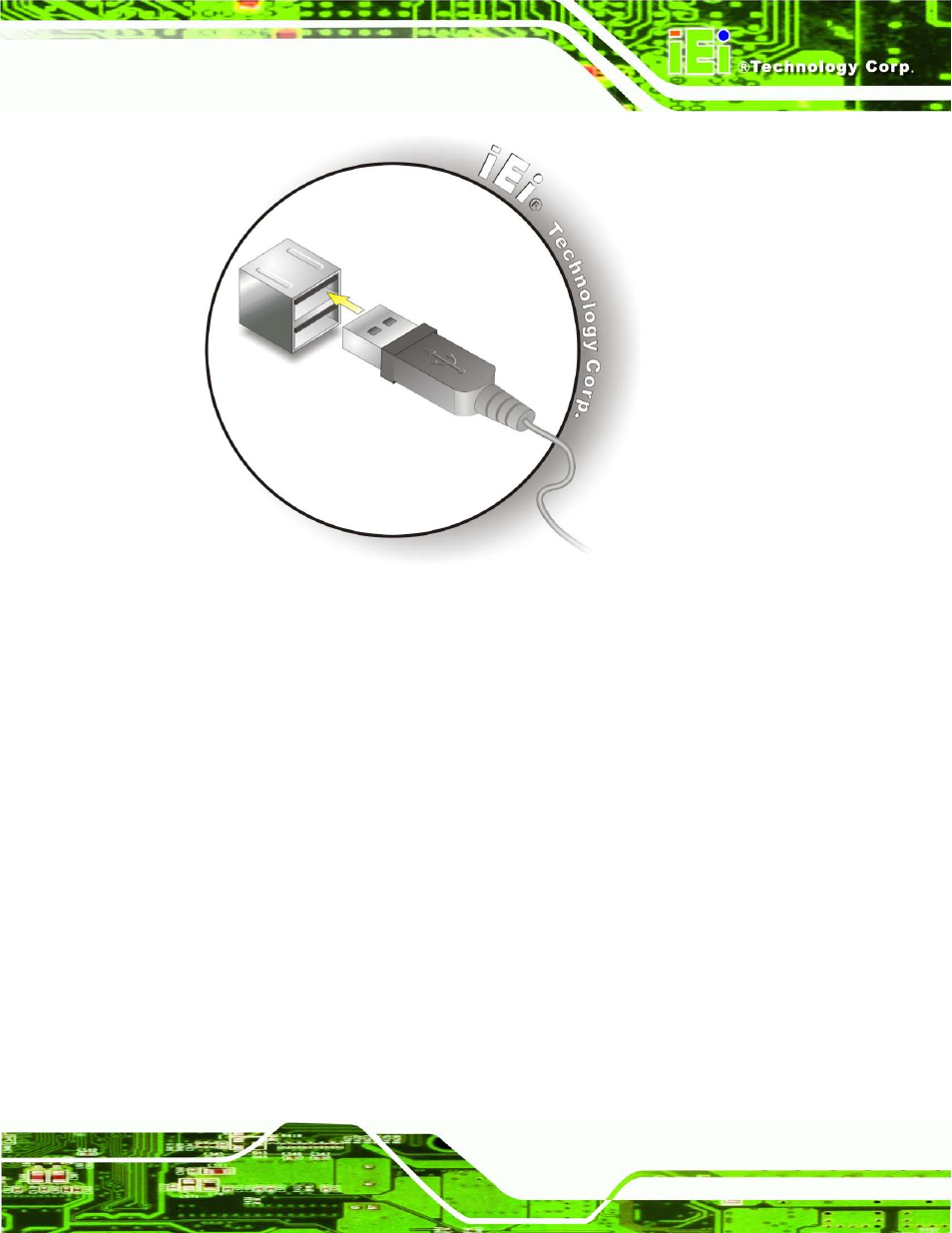

Figure 4-22: USB Connector
4.6.7 VGA Mo n ito r Co n n e c tio n
The IMBA-G410 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor
to the IMBA-G410, please follow the instructions below.
S te p 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
S te p 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
S te p 3: Insert the VGA connector . Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
IMBA-G410. See Figure 4-23.
