IMBA-G410 ATX Mo th e rb o a rd
P a g e 25

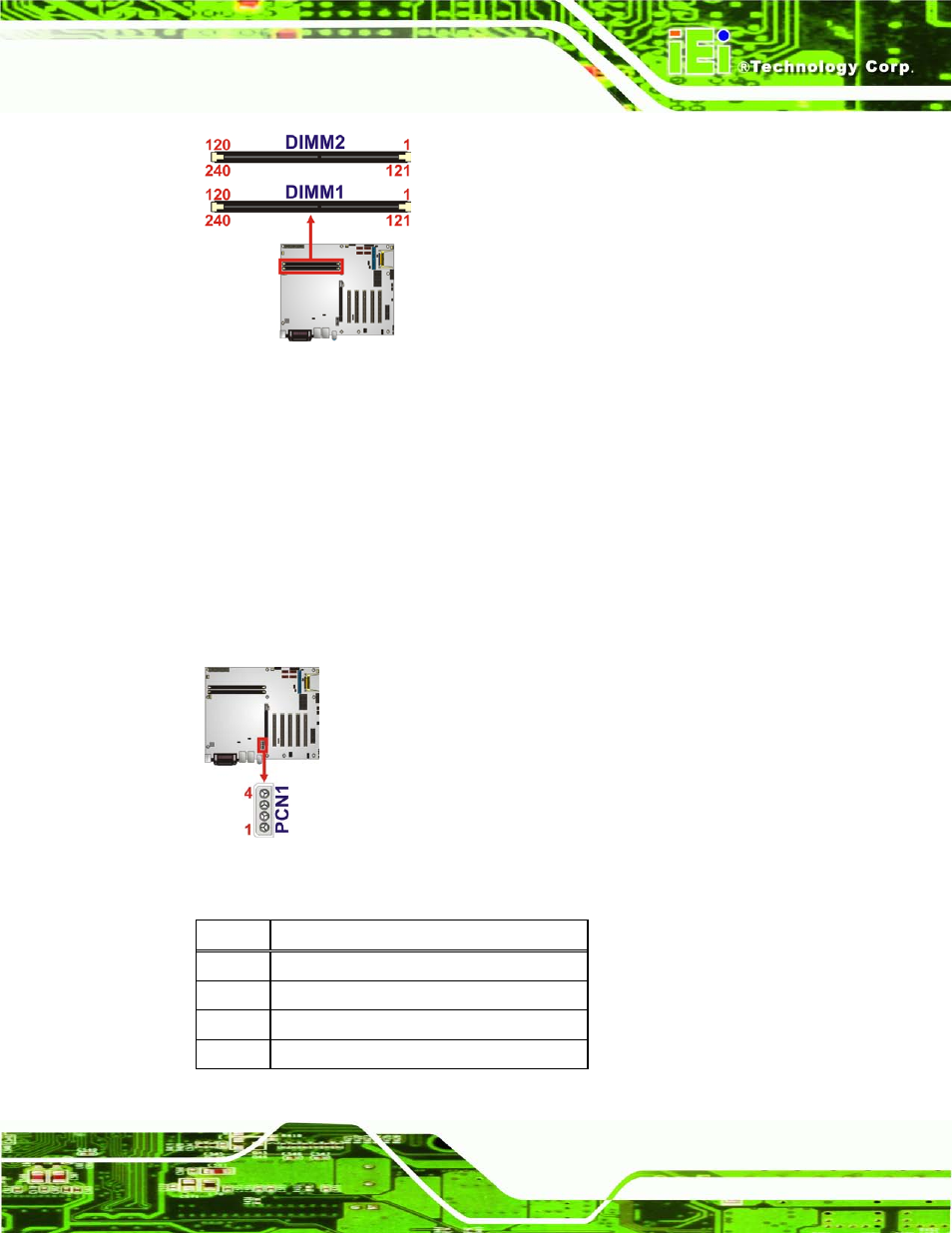

Figure 3-10: Memory Card Slot Locations
3.2.10 P CIe P o we r In p u t Co n n e c to r
CN La b e l: P NC1
CN Typ e : 3-pin wafer (1x3)
CN Lo c a tio n : See Figure 3-11
CN P in o u ts : See Table 3-12
The PCIe power input connector provides extra power to the PCIe card.
Figure 3-11: PCIe Power Input Connector Location
Pin Description
1 VCC +5 V
2 GND
3 GND
4 VCC +12 V
Table 3-12: PCIe Power Input Connector Pinouts
