IMBA-G410 ATX Mo th e rb o a rd
CN P in o u ts : See Table 3-9
The front panel connector connects to the indicator LEDs and buttons on the computer's
front panel.

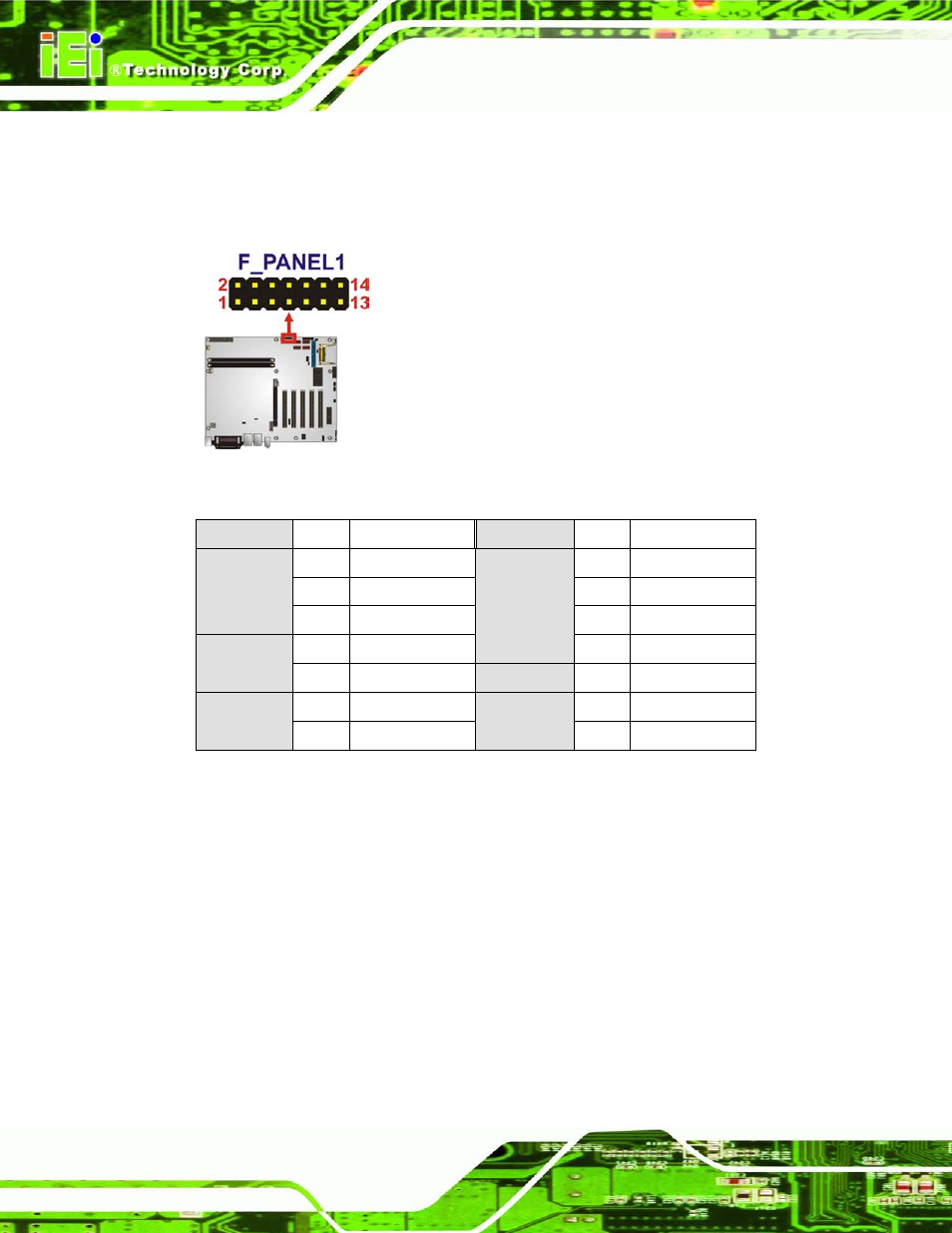

Figure 3-7: Front Panel Connector Location
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED 1 Power LED Buzzer 2 BEEP_PWR
3 NC 4 NC
5 GND 6 NC
Power
Button
7 PWRBTSW# 8 PC_BEEP
9 GND -- 10 NC
HDD LED 11 HDD LED+ Reset 12 RESET
13 HDD LED- 14 GND
Table 3-9: Front Panel Connector Pinouts
3.2.7 IDE Co n n e c to r
CN La b e l: IDE1
CN Typ e : 40-pin box header (2x20)
CN Lo c a tio n : See Figure 3-8
CN P in o u ts : See Table 3-10
The IDE connector can connect to an IDE hard drive or optical device.
