IMBA-G410 ATX Mo th e rb o a rd
P a g e 37
Pin Description Pin Description
13 PRINTER SELECT
Table 3-23: Parallel Port Connector Pinouts

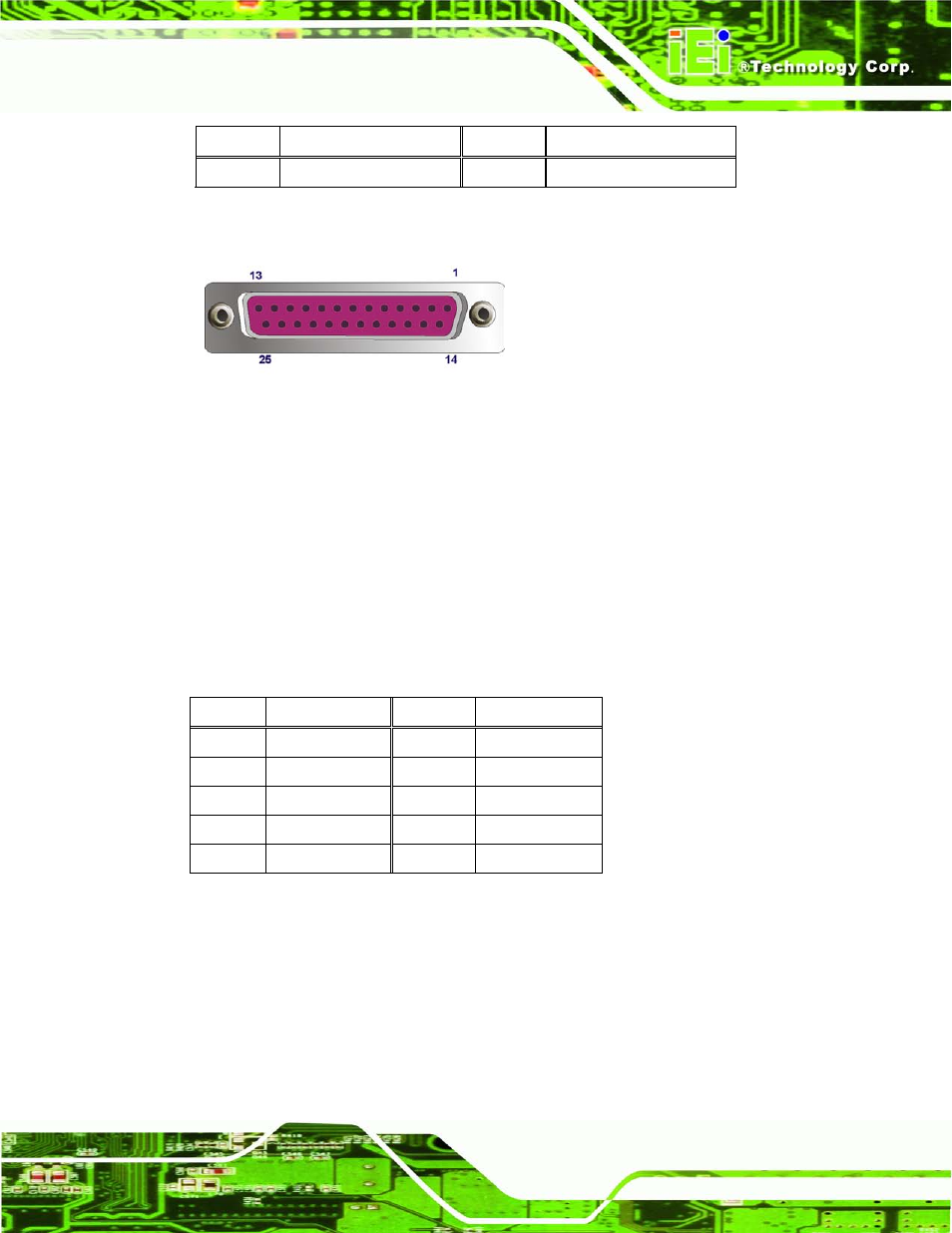

Figure 3-24: Parallel Port Connector Location
3.3.5 S e ria l P o rt Co n n e c to r (COM1)
CN La b e l: 3IN1_DS UB1B (COM1)
CN Typ e : DB-9 Male
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Table 3-24 and Figure 3-25
The serial port connects to a RS-232 serial communications device.
Pin Description Pin Description
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
Table 3-24: Serial Port Pinouts
