IMBA-G410 ATX Mo th e rb o a rd
P a g e 35

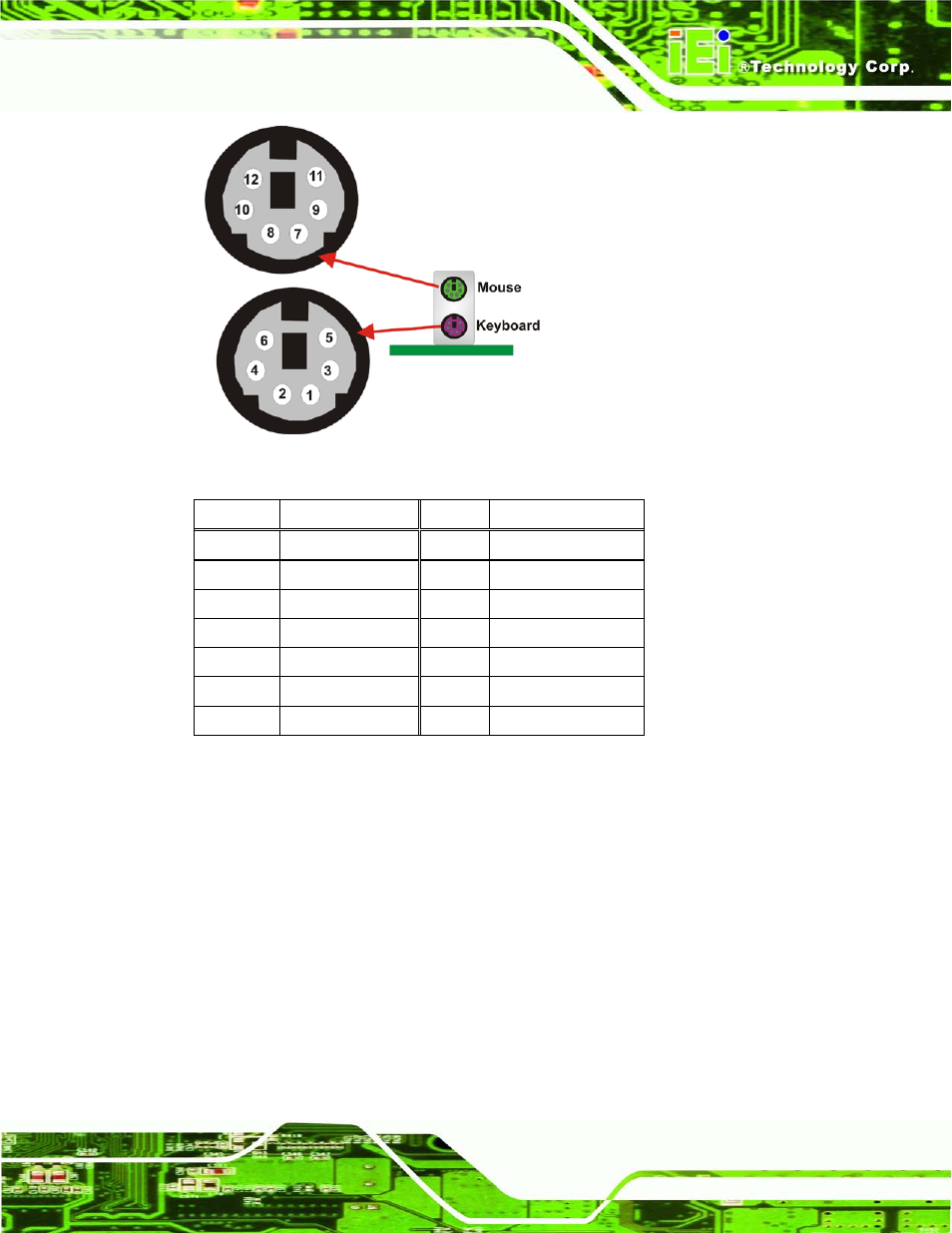

Figure 3-23: PS/2 Pinout and Configuration
Pin Description Pin Description
1 KB_DATA 8 NC
2 NC 9 GND
3 GND 10 5 V
4 5 V 11 MS_CLK
5 KB_CLK 12 NC
6 NC 13 KB_GND
7 MS_DATA 14 KB_GND
Table 3-21: Keyboard Connector Pinouts
3.3.3 LAN Co n n e c to rs
CN La b e l: LAN1, LAN2
CN Typ e : RJ-45
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Table 3-22
The LAN connector connects to a local network.
