IMBA-G410 ATX Mo th e rb o a rd
P a g e 57

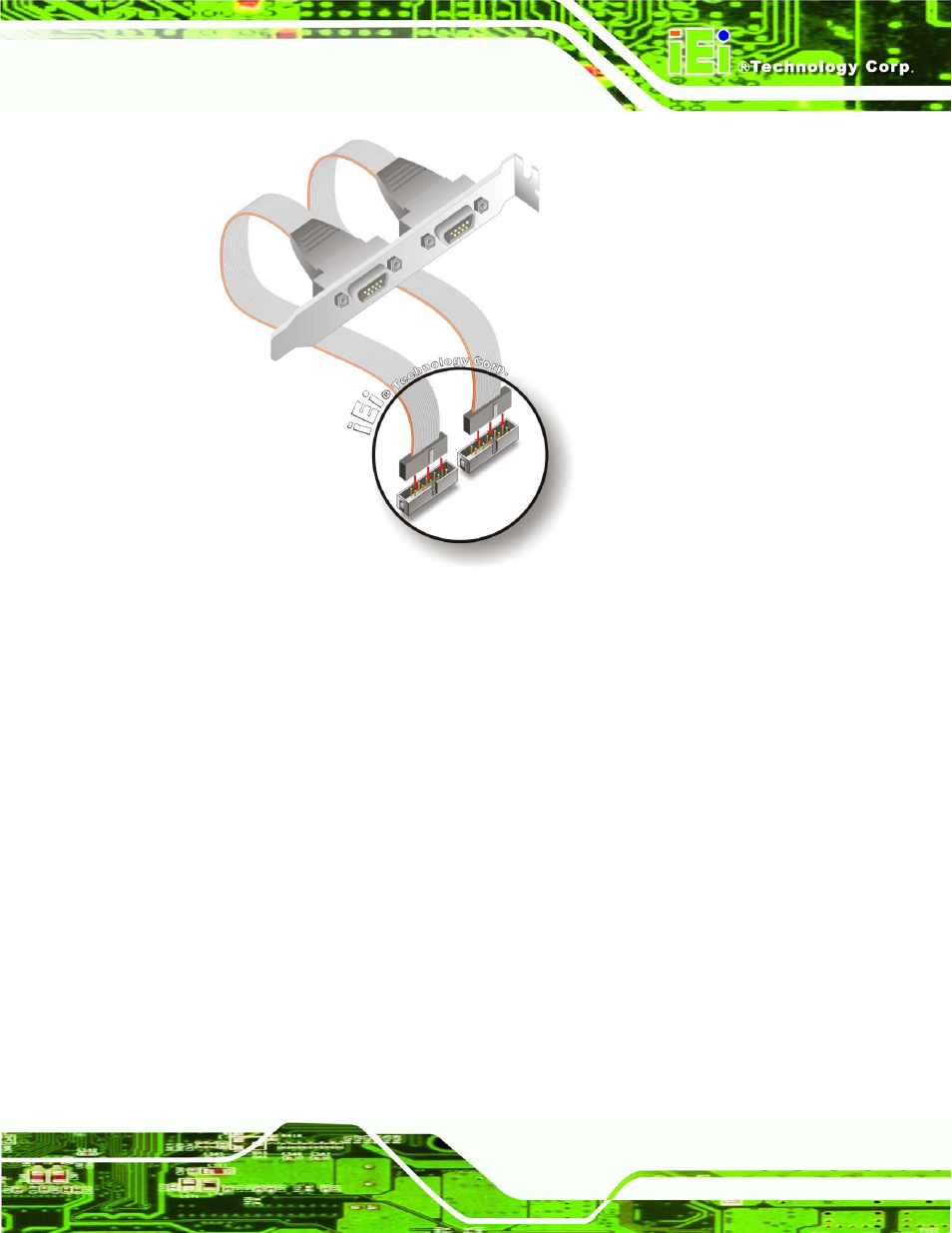

Figure 4-16: Dual RS-232 Cable Installation
S te p 3: Secure the bracket. The dual RS-232 connector has two D-sub 9 male
connectors secured on a bracket. To secure the bracket to the chassis please
refer to the reference material that came with the chassis. S te p 0:
4.6 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
This section describes connecting devices to the external connectors on the IMBA-G410.
4.6.1 Au d io Co n n e c to r
The audio jacks on the external audio connector enable the IMBA-G410 to be connected
to a stereo sound setup. To install the audio devices, follow the steps below.
S te p 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
