P a g e 28
IMBA-G410 ATX Mo th e rb o a rd
3.2.13 RS -232/422/485 S e ria l P o rt Co n n e c to r
CN La b e l: COM2
CN Typ e : 14-pin box header
CN Lo c a tio n : See Figure 3-14
CN P in o u ts : See Table 3-15
This connector provides RS-232, RS-422 or RS-485 communications.

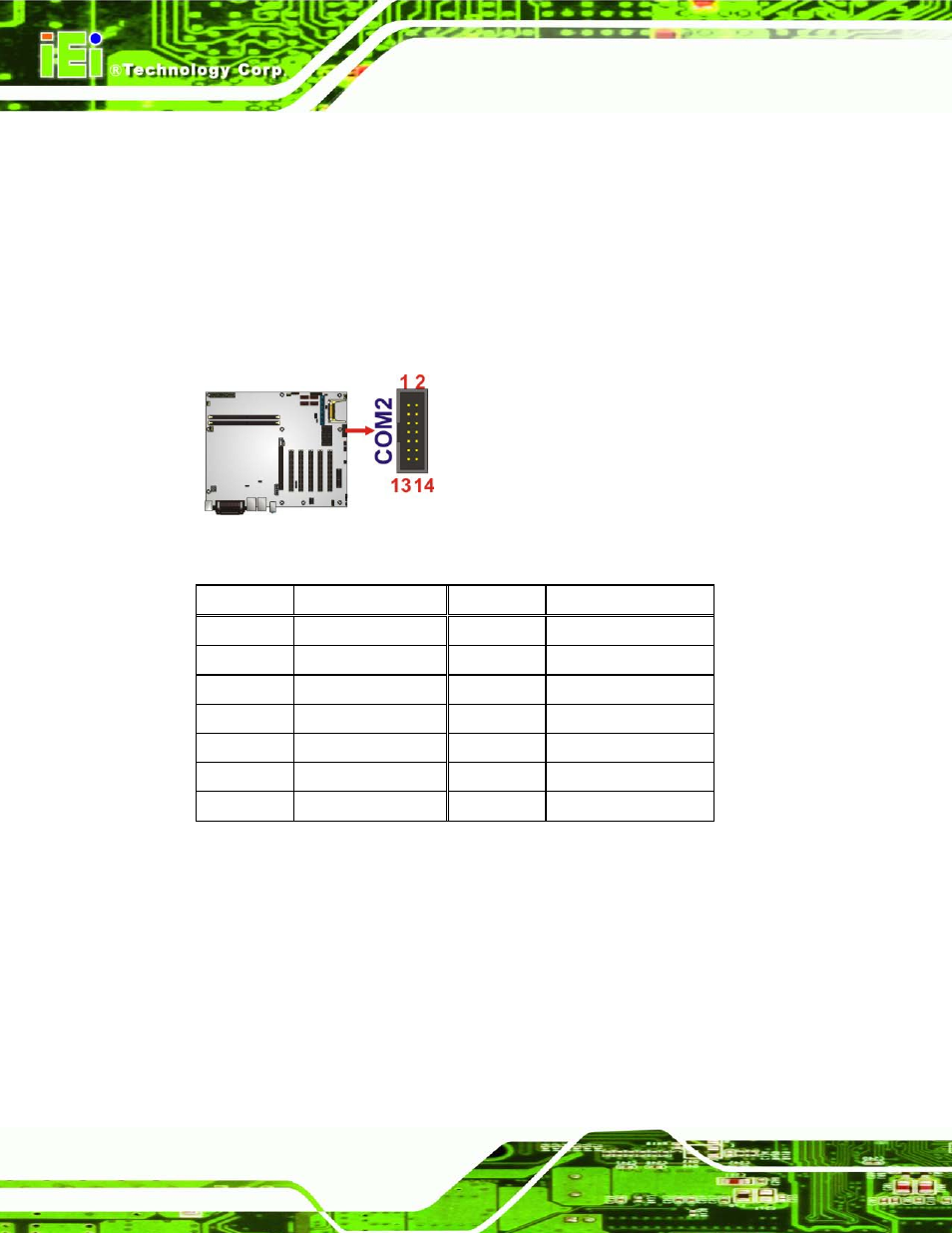

Figure 3-14: RS-232/422/485 Serial Port Connector Location
Pin Description Pin Description
1 NDCD 2 NDSR
3 NRX 4 NRTS
5 NTX 6 NCTS
7 NDTR 8 NRI
9 GND 10 NC
11 TX+ 12 TX-
13 RX+ 14 RX-
Table 3-15: RS-232/422/485 Serial Port Connector Pinouts
3.2.14 S ATA Drive Co n n e c to rs
CN La b e l: S ATA1, S ATA2, S ATA3, S ATA4
CN Typ e : 7-pin SATA drive connectors
CN Lo c a tio n : See Figure 3-15
The SATA drive connectors can be connected to SATA 3Gb/s drives.
