IMBA-G410 ATX Mo th e rb o a rd
P a g e 39

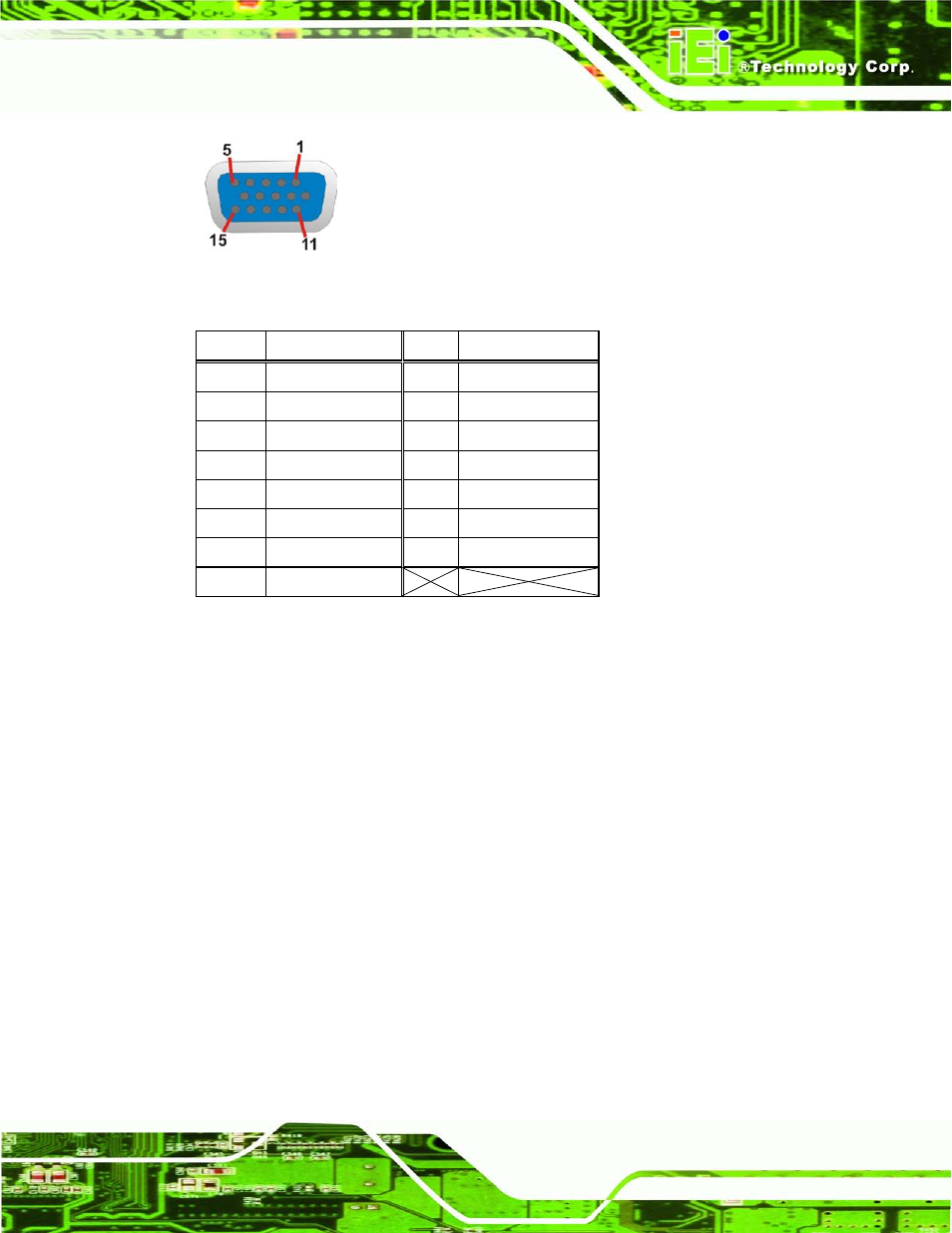

Figure 3-26: VGA Connector
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 CRT_PLUG#
5 GND 6 GND
7 GND 8 GND
9 VGAVCC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-26: VGA Connector Pinouts
