IMBA-G410 ATX Mo th e rb o a rd

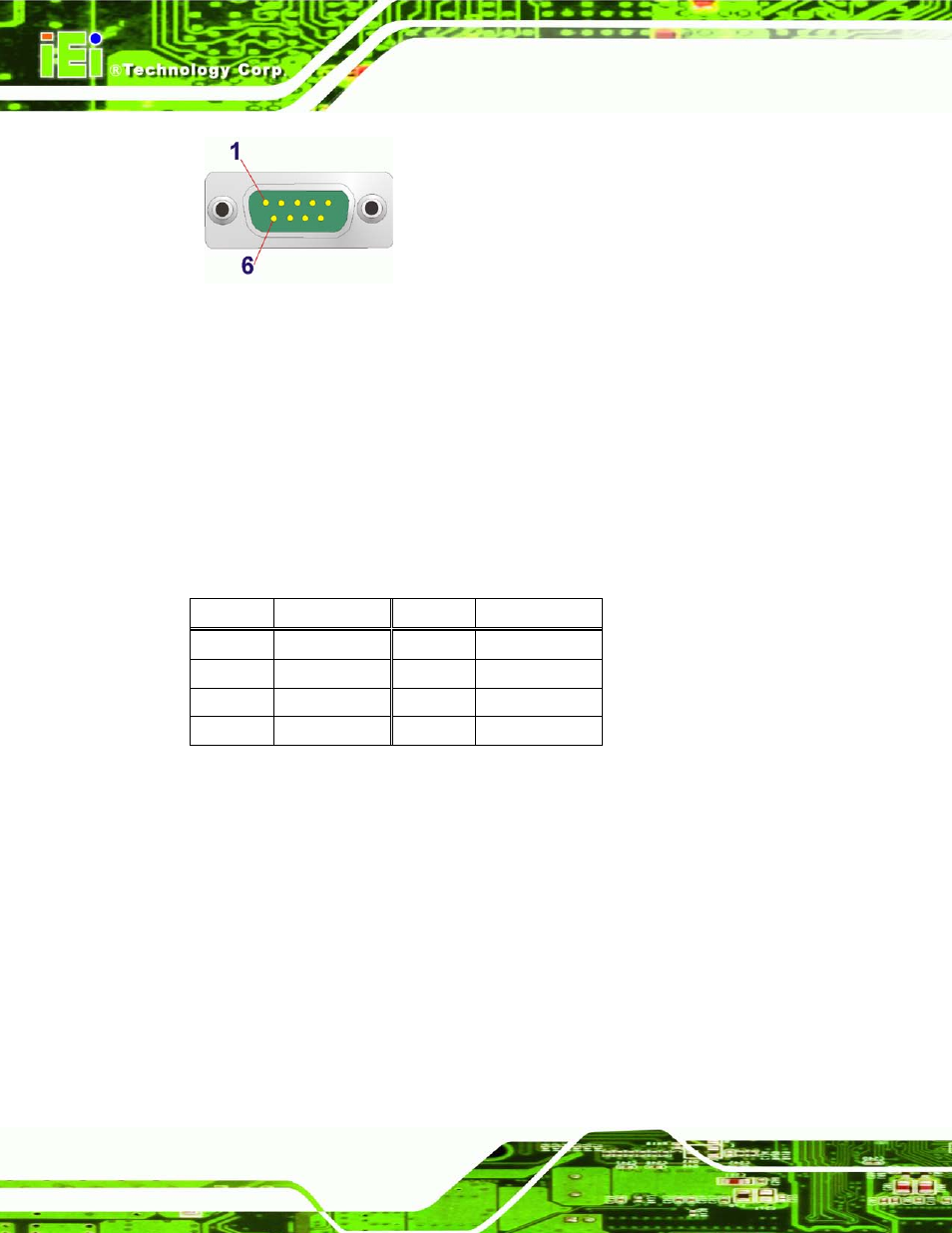

Figure 3-25: Serial Port Pinouts
3.3.6 US B Co n n e c to rs
CN La b e l: US B1, US B2
CN Typ e : USB port
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Table 3-25
The USB connector can be connected to a USB device.
Pin Description Pin Description
1 USBPWR1 2 USBP0/2-
3 USBP0/2+ 4 GND
5 USBPWR1 6 USBP1/3-
7 USBP1/3+ 8 GND
Table 3-25: USB Port Pinouts
3.3.7 VGA Co n n e c to r
CN La b e l: 3IN1_DS UB1C
CN Typ e : 15-pin Female
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Figure 3-26 and Table 3-26
The VGA connector connects to a monitor that accepts a standard VGA input.
