IEI Integration IMBA-G410 v2.00 - Manual (Page 16)

21/20/2012165
P a g e 2
IMBA-G410 ATX Mo th e rb o a rd
1.1 In tro d u c tio n

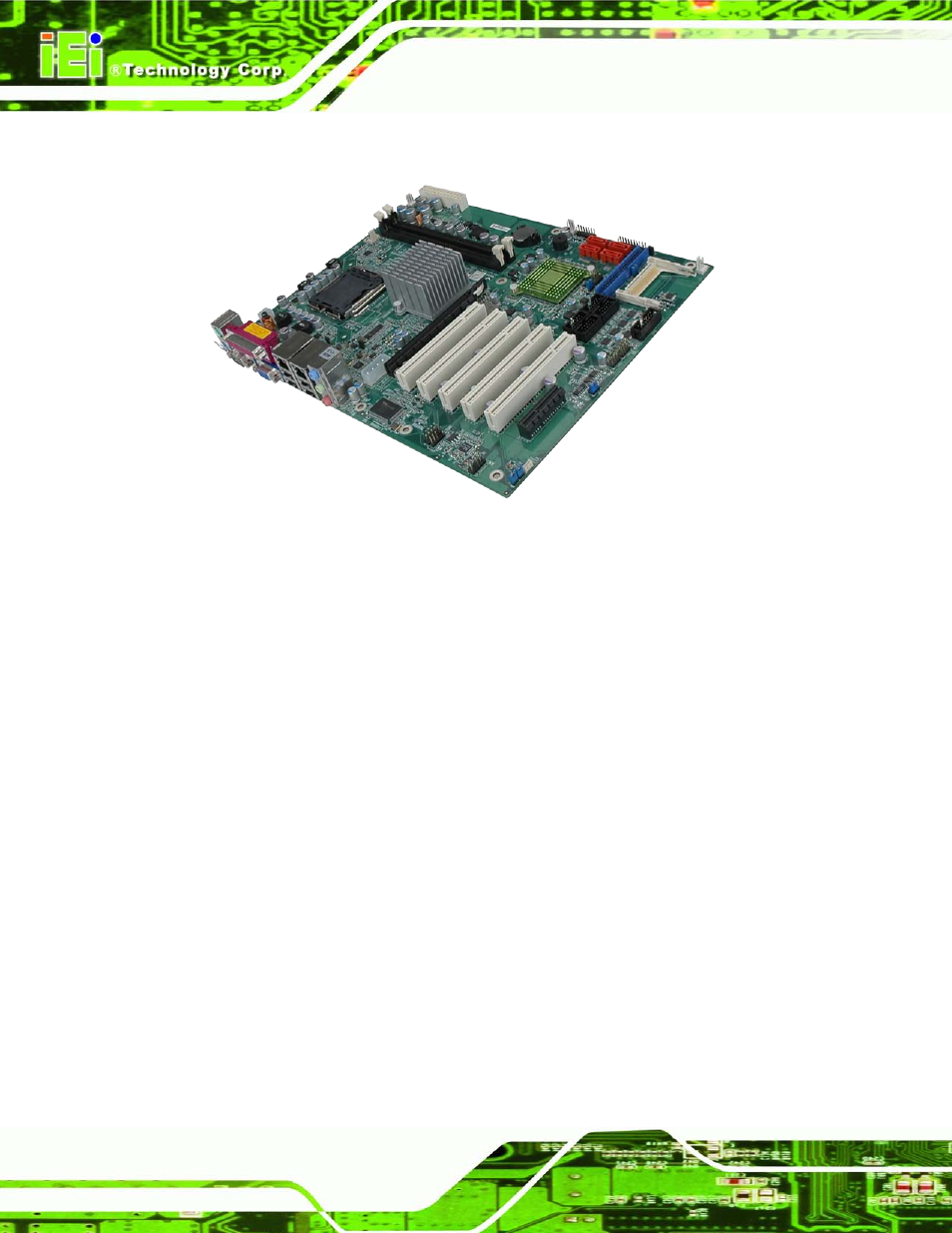

Figure 1-1: IMBA-G410
The IMBA-G410 is an ATX motherboard with an 800/1066/1333 MHz front side bus. The
LGA775 socket accepts Intel® Core™2 Duo/Quad processors and the motherboard
supports two DDR3 DIMMs up to 4.0 GB each (8.0 GB total). The IMBA-G410 includes
VGA output with up to QXGA resolution. Multiple expansion cards may be added,
including PCIe x16, PCIe x4 and PCI interface. Other features include four SATA 3Gb/s,
dual PCIe GbE, digital I/O, five RS-232 serial ports, one RS-232/422/485 serial ports, one
parallel port, audio jacks and eight USB ports.
1.2 Be n e fits
Some of the IMBA-G410 motherboard benefits include:
 Powerful graphics
 Staying connected with both wired LAN connections
 Speedy running of multiple programs and applications
 Multiple expansion capabilities
