IMBA-G410 ATX Mo th e rb o a rd

P a g e 21

3.2.5 Dig ita l I/O Co n n e c to r

CN La b e l:

DIO1

CN Typ e :

10-pin header

CN Lo c a tio n :

See Figure 3-6

CN P in o u ts :

See Table 3-8

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

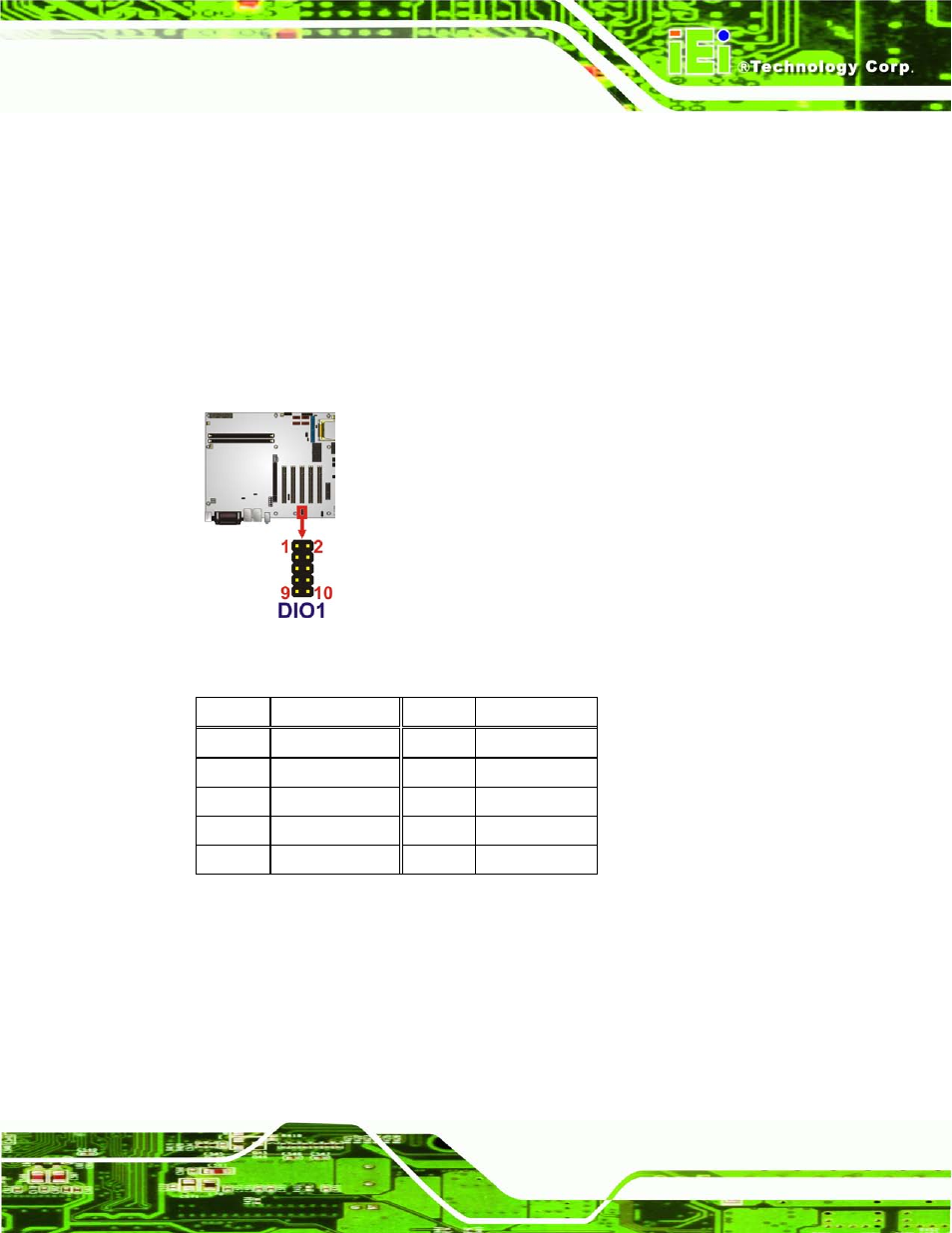

Figure 3-6: Digital I/O Connector Location

Pin

Description

Pin

Description

1

GND

2

VCC5S

3

Output 0

4

Output 1

5

Output 2

6

Output 3

7

Input 0

8

Input 1

9

Input 2

10

Input 3

Table 3-8: Digital I/O Connector Pinouts

3.2.6 Fro n t P a n e l Co n n e c to r

CN La b e l:

F_P ANEL1

CN Typ e :

14-pin header

CN Lo c a tio n :

See Figure 3-7
