1341/20/2012165

P a g e 134

IMBA-G410 ATX Mo th e rb o a rd

S te p 7:

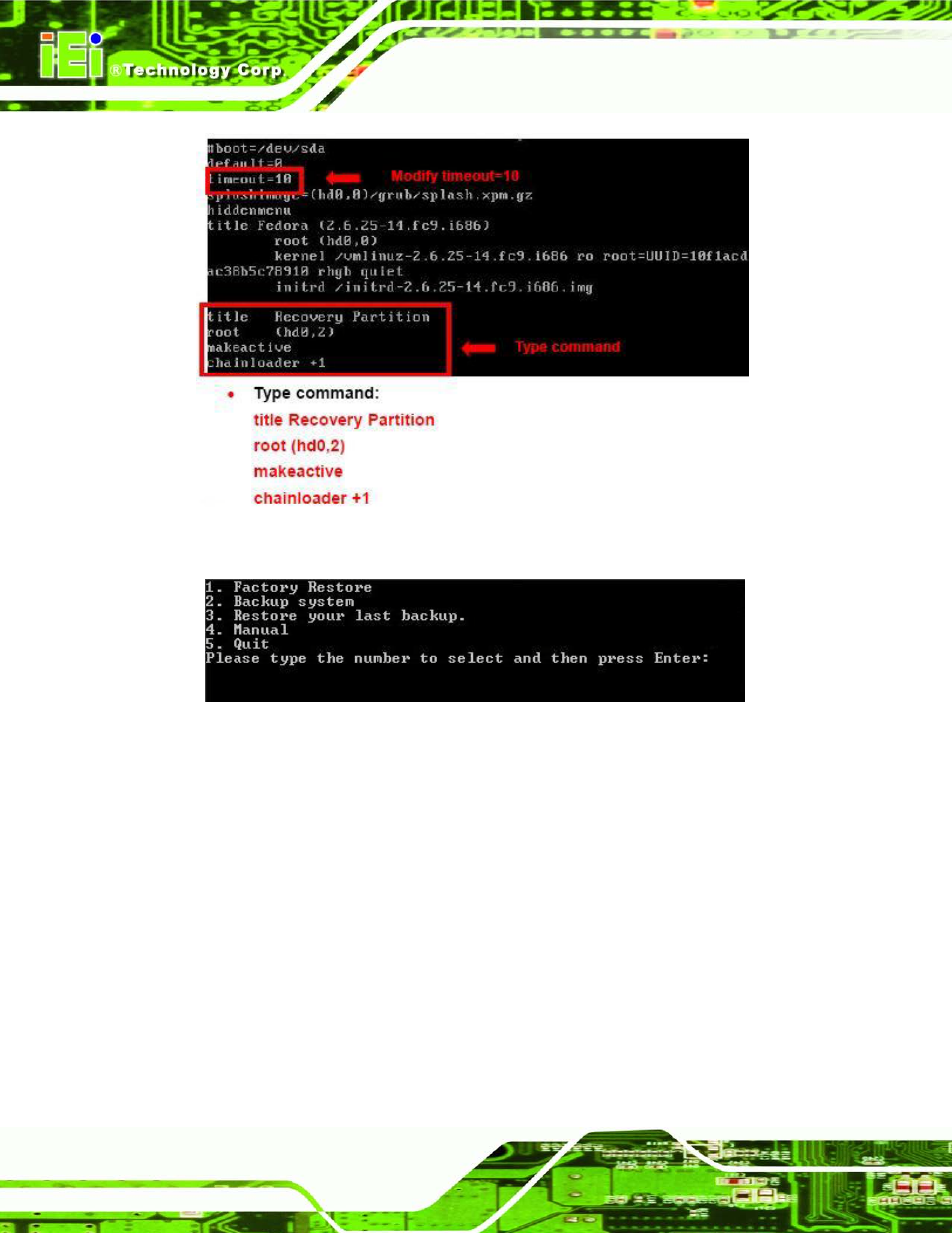

The recovery tool menu appears. (Figure C-25)

Figure C-25: Recovery Tool Menu

S te p 8:

Create a factory default image. Follow

Step 2

~

Step 12

described

in

Section C.2.5 to create a factory default image.

C.4 Re c o ve ry To o l Fu n c tio n s

After completing the initial setup procedures as described above, users can access the

recovery tool by pressing <F3> while booting up the system. The main menu of the

recovery tool is shown below.
