IMBA-G410 ATX Mo th e rb o a rd

P a g e 33

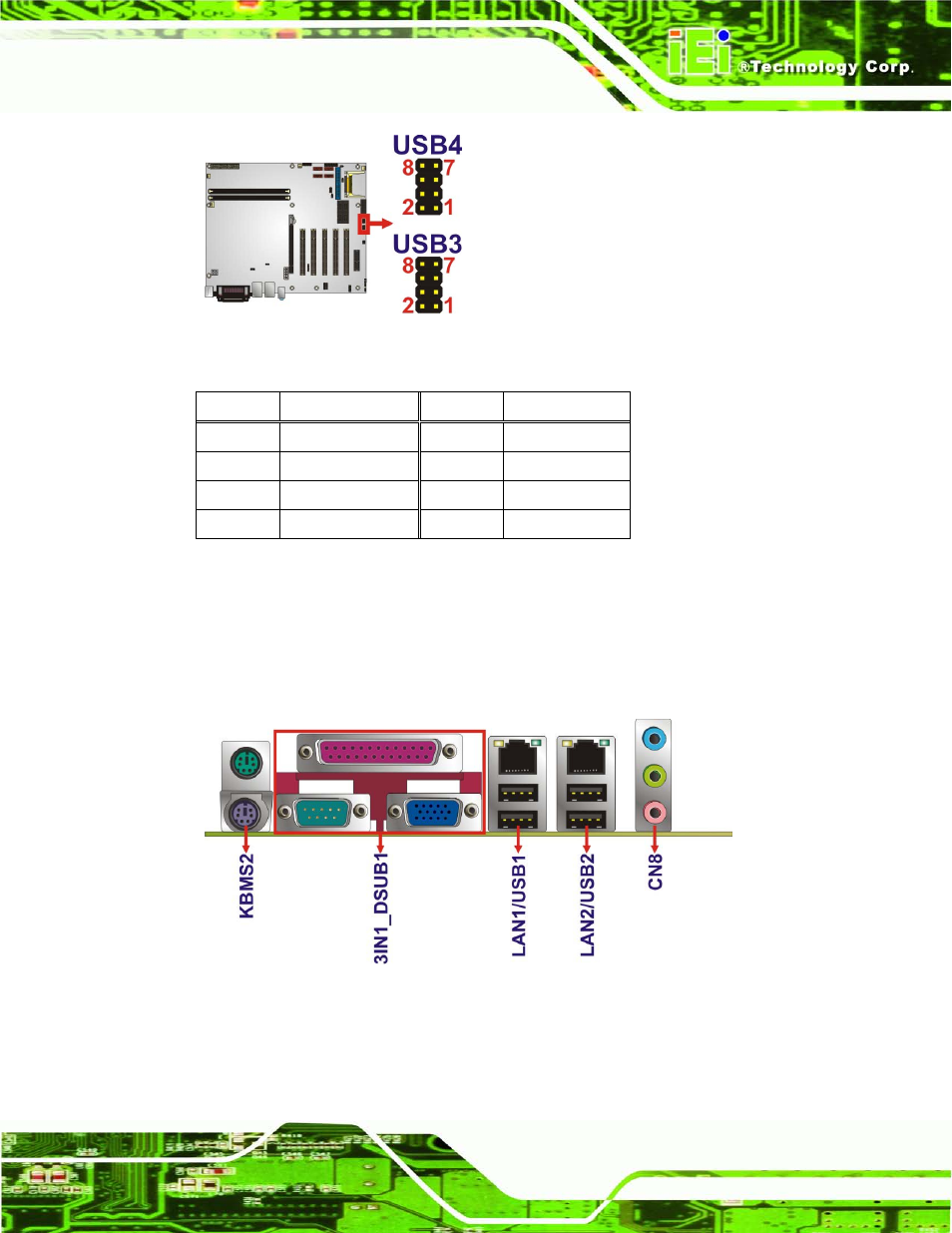

Figure 3-20: USB Connector Pinout Locations

Pin

Description

Pin

Description

1

+5V

2

GND

3

USBP4/6#

4

USBP5/7

5

USBP4/6

6

USBP5/7#

7

GND

8

+5V

Table 3-20: USB Port Connector Pinouts

3.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

Figure 3-21: External Peripheral Interface Connector
