IMB-C2060 microATX Motherboard
Page 61

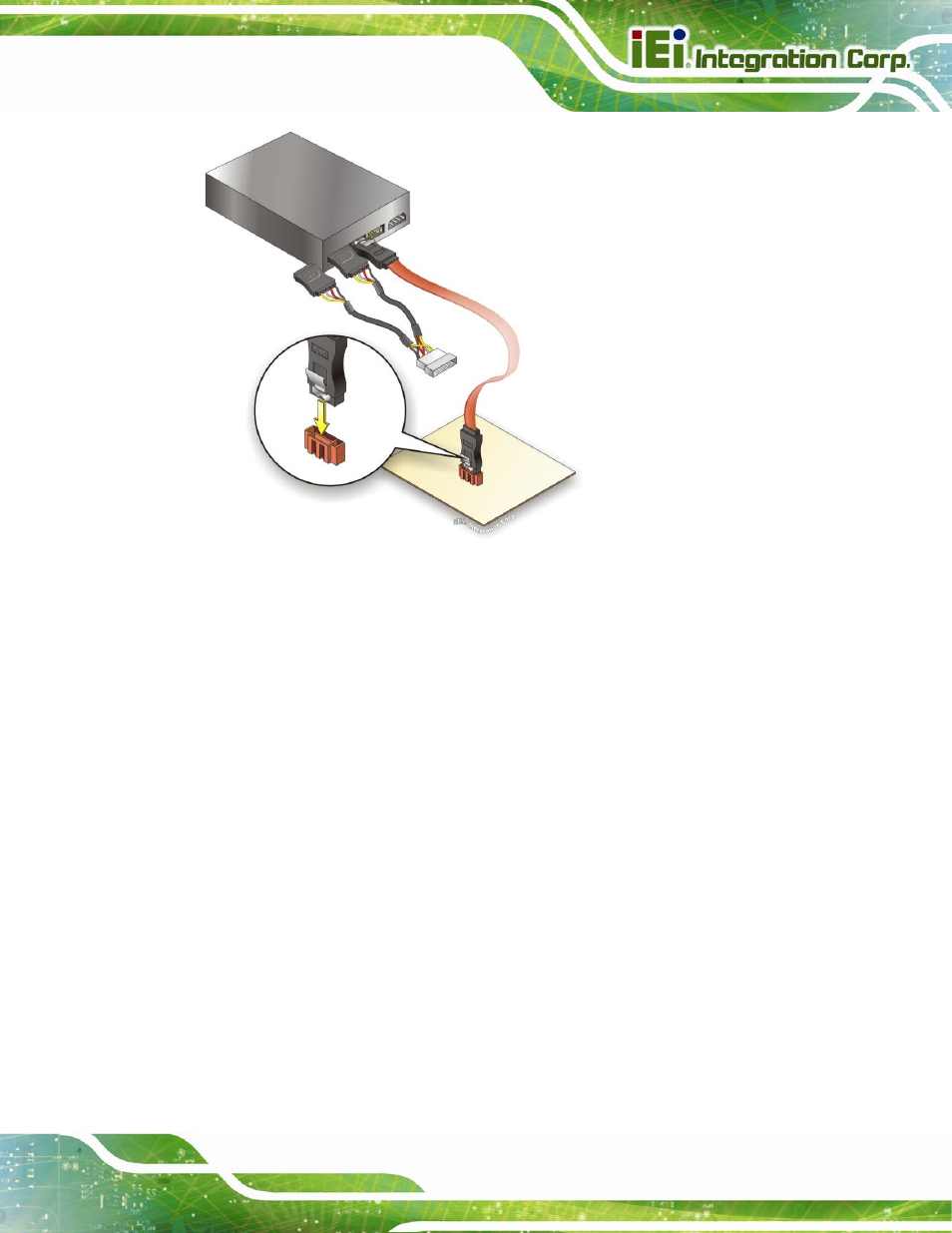

Figure 4-14: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See Optional Items in Section 2.4.
4.5 External Peripheral Interface Connection
This section describes connecting devices to the external connectors on the IMB-C2060.
4.5.1 Audio Connector
The audio jacks on the external audio connector enable the IMB-C2060 to be connected
to a stereo sound setup. Each jack supports both input and output. When connecting a
device, the High Definition Audio utility will automatically detect input or output. The lime
green (top) audio jack does not support input from a microphone. To install the audio
devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel.
