IMB-C2060 microATX Motherboard

Page 24

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The FW Programming connector is used for programming the firmware.

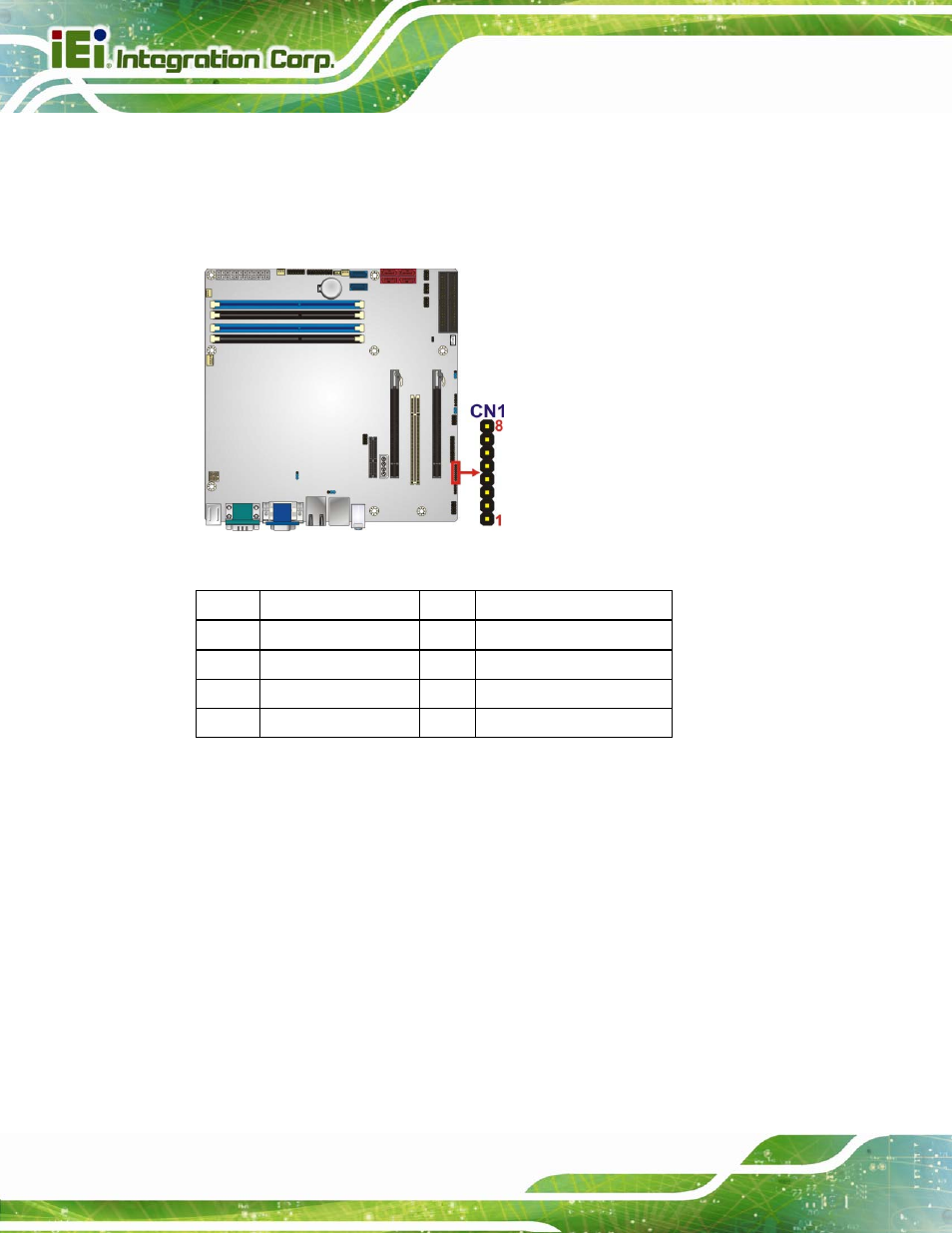

Figure 3-9: FW Programming Connector Location

Pin Description

Pin

Description

1 +3.3V

2

TDO

3 TDI

4

NC

5 NC

6

TMS

7 GND

8

TCK

Table 3-10: FW Programming Connector Pinouts

3.2.9 Infrared Interface Connector

CN Label:

IR1

CN Type:

5-pin header

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The infrared connector attaches to an infrared receiver for use with remote controls.
