IMB-C2060 microATX Motherboard

Page 21

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 12-bit output and 12-bit input.

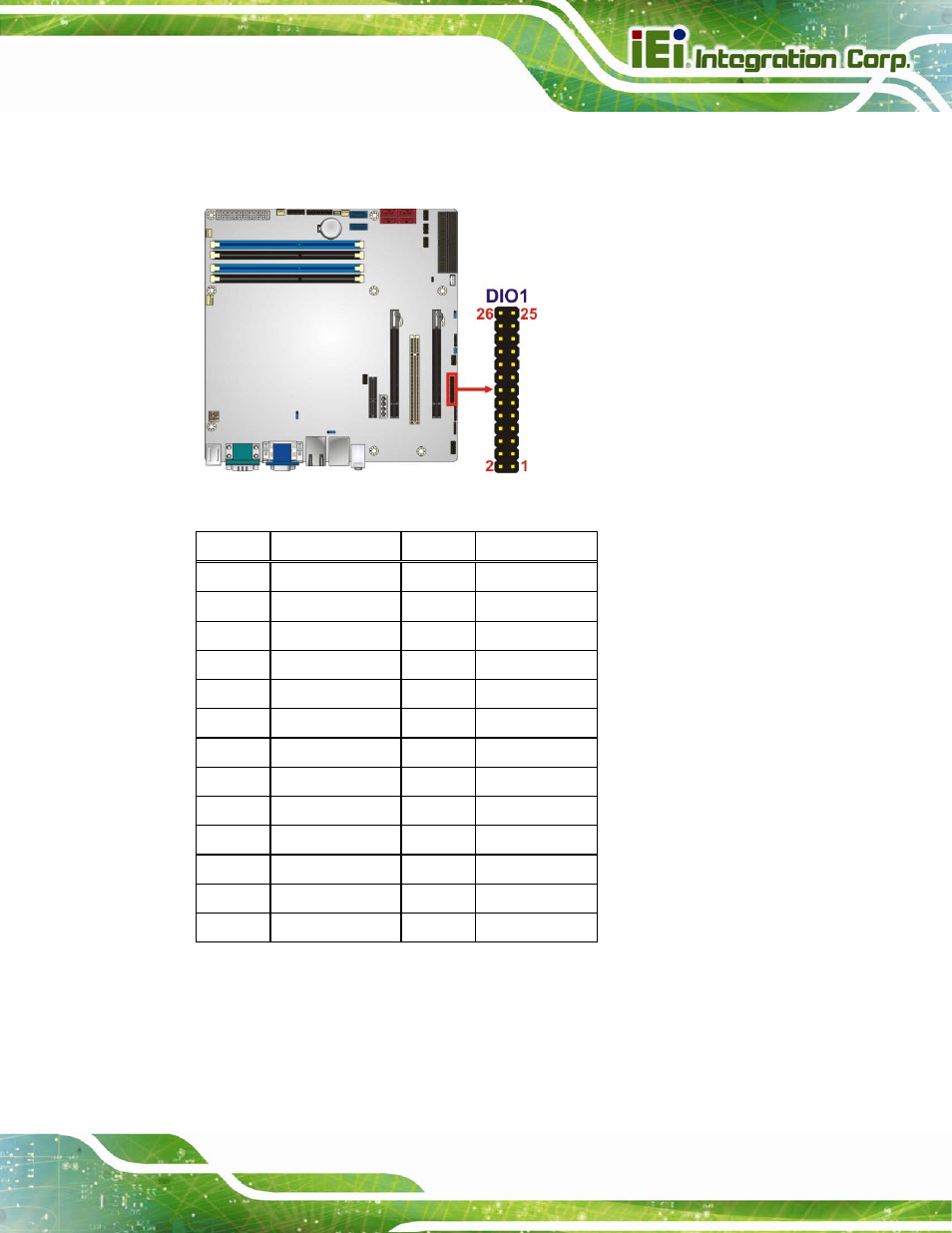

Figure 3-6: Digital I/O Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

+5V

3

D_IN0

4

D_OUT0

5

D_IN1

6

D_OUT1

7

D_IN2

8

D_OUT2

9

D_IN3

10

D_OUT3

11

D_8IN0

12

D_8OUT0

13

D_8IN1

14

D_8OUT1

15

D_8IN2

16

D_8OUT2

17

D_8IN3

18

D_8OUT3

19

D_8IN4

20

D_8OUT4

21

D_8IN5

22

D_8OUT5

23

D_8IN6

24

D_8OUT6

25

D_8IN7

26

D_8OUT7

Table 3-7: Digital I/O Connector Pinouts
