IMB-C2060 microATX Motherboard
Page 35
3.2.18 SPDIF Connector
CN Label: SPDIF
CN Type: 5-pin header
CN Location: See Figure 3-19
CN Pinouts: See Table 3-21
Use the SPDIF connector to connect digital audio devices to the system.

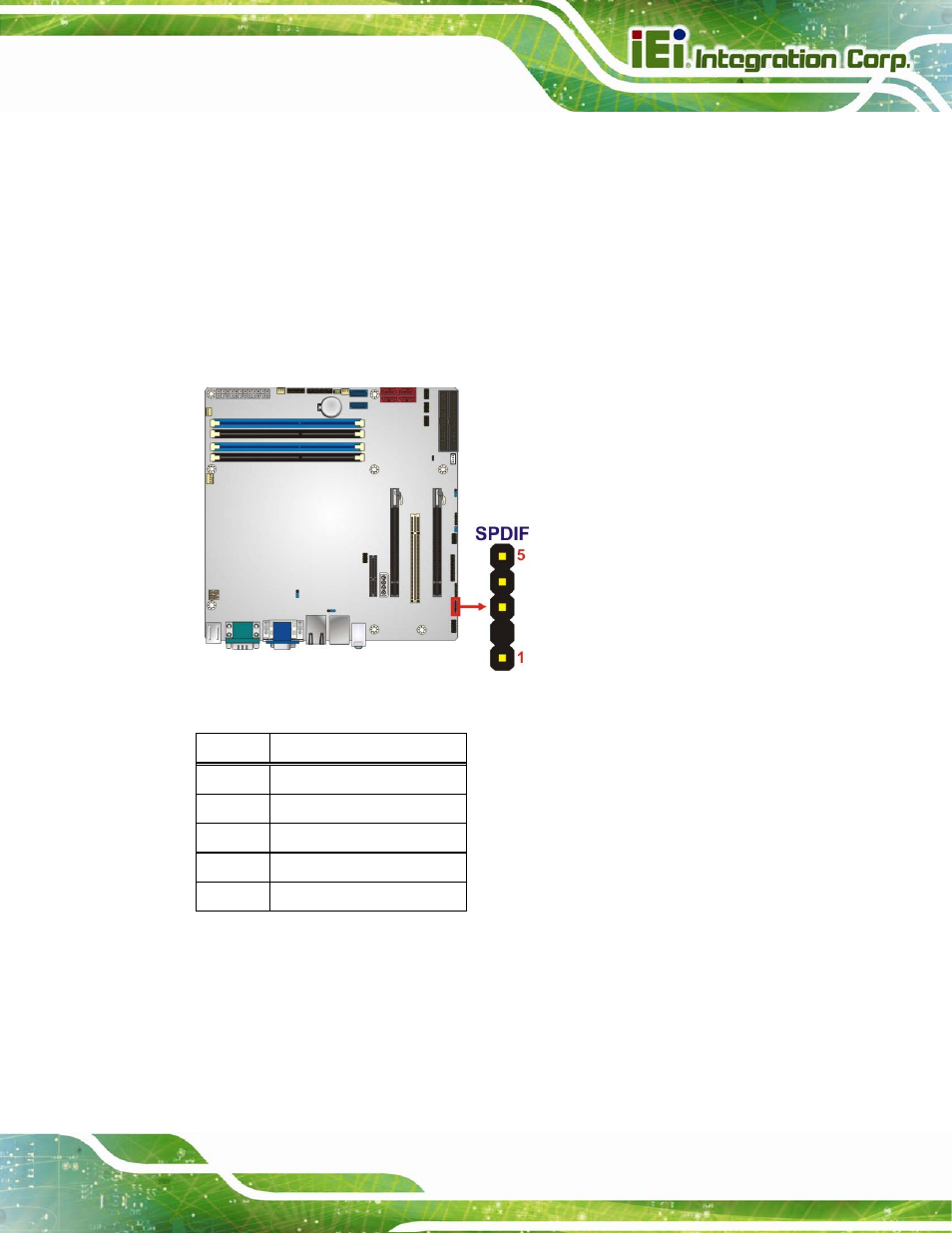

Figure 3-19: SPDIF Connector Location
PIN DESCRIPTION
1 +5V
2 NC
3 SPDIFOUT
4 GND
5 SPDIFIN
Table 3-21: SPDIF Connector Pinouts
3.2.19 SPI Connector
CN Label: SPI1
CN Type: 8-pin header
